Removal, & Installation: Installation

Install steering column into vehicle, sliding universal joint onto pinion shaft. Install column support bolts and universal joint bolt.

TIGHTENING SPECIFICATIONS

Application Ft. Lbs. (mkg)
Column-to-Body Bolts (Exc. Accord) 16 (2.2)
  Accord 13.7-18 (1.5-2.5)
Steering Wheel Bolts 16 (2.2)
Steering Wheel Nut 29 (4)
Universal Joint Bolts (Exc. Accord) 16 (2.2)
  Accord 20-23 (2.8-3.2)

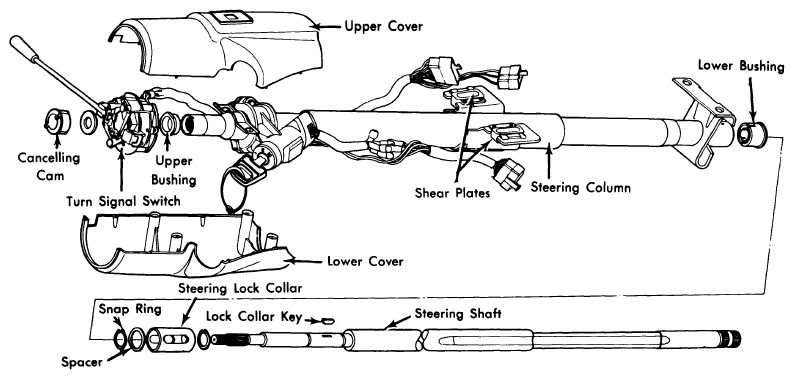

Fig 1: Exploded View of Honda Steering Column Assembly
G09346131Courtesy of AMERICAN HONDA MOTOR CO., INC.
