All Models

After removal of steering wheel, unscrew column cover retaining screw. Separate cover, loosen center screw on switch assembly completely. Tap top of screw with screwdriver to detach switch from column. Remove washer and wiper switch as an assembly from turn signal switch. To install, reverse removal procedures.

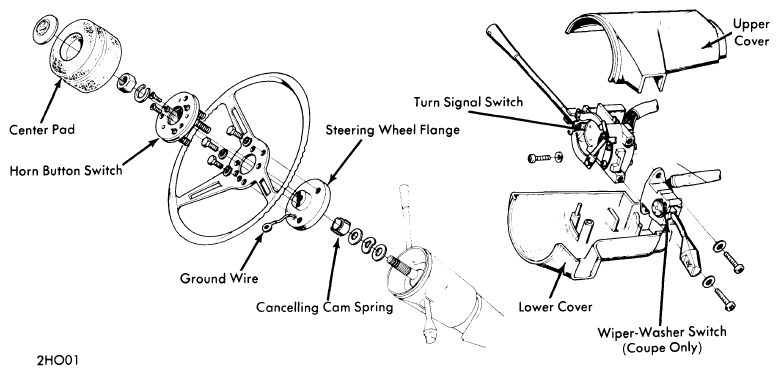

Fig 1: Honda Horn Button, Steering Wheel & Turn Signal Switch (Typical) (Coupe Shown)
G09345798Courtesy of AMERICAN HONDA MOTOR CO., INC.
