Temperature Control Lever

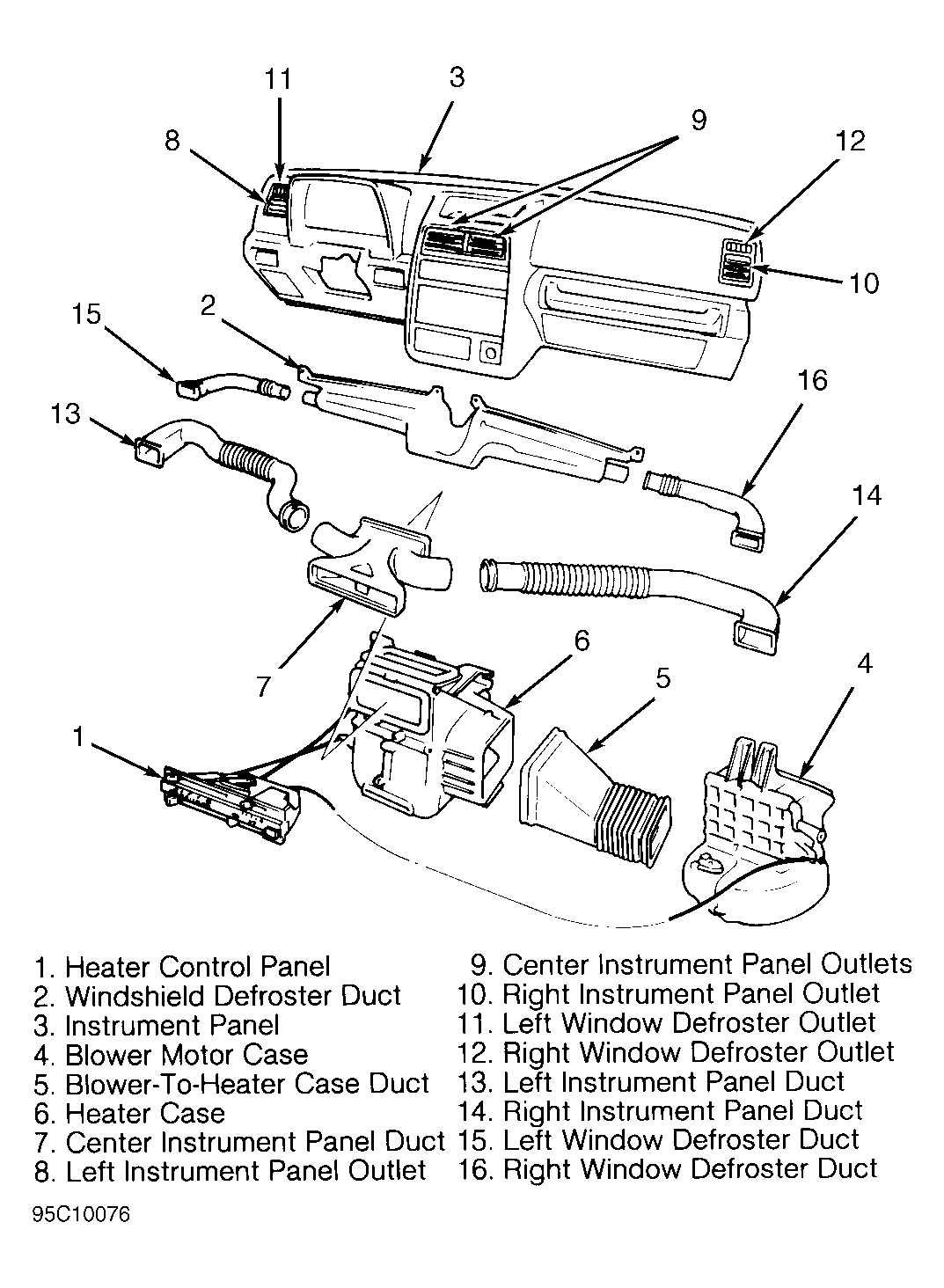

When temperature control lever is moved to full hot position, air mix door opens fully, allowing all airflow through heater core to selected outlets. See Fig 1 . In full cold position, air mix door closes off airflow through heater core. Adjusting air temperature control lever allows more or less air to by-pass heater core.
