Fresh/RECIRCULATION Control Lever

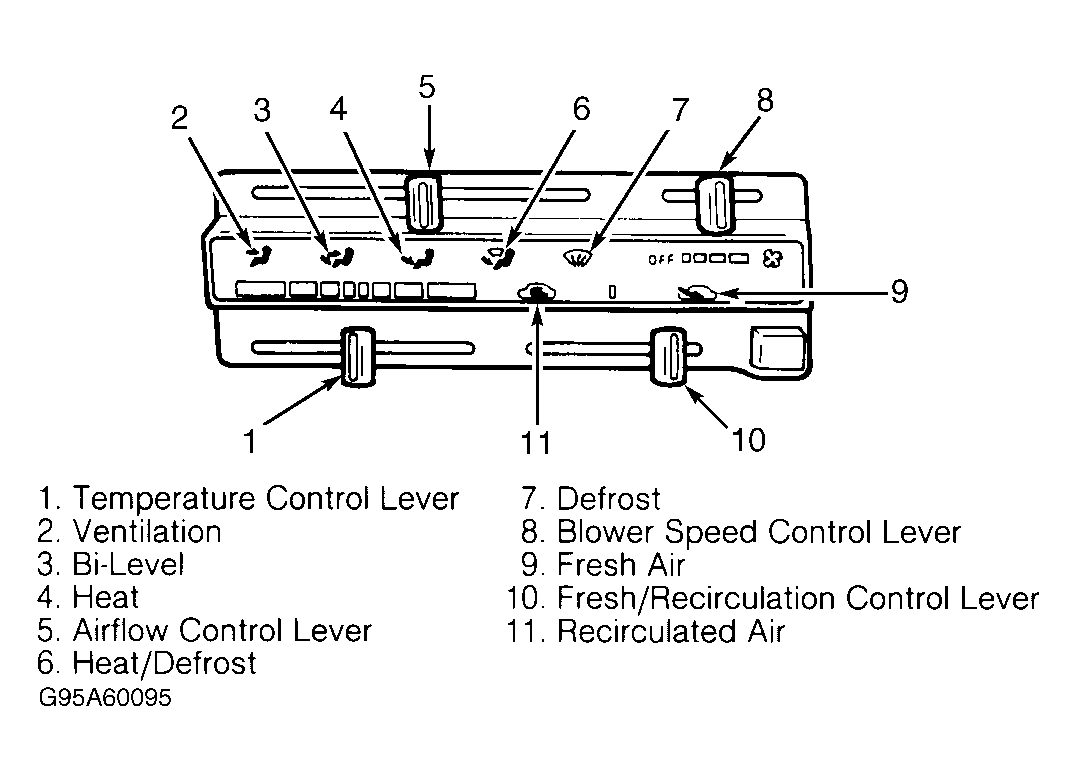

The fresh/recirculation control lever mechanically operates a cable which opens or closes fresh/recirculation mode door to fresh (outside) air. When lever is in recirculation position, outside air is shut off and air from inside passenger compartment is recirculated through blower motor to selected air outlets. See Fig 1 .
