Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

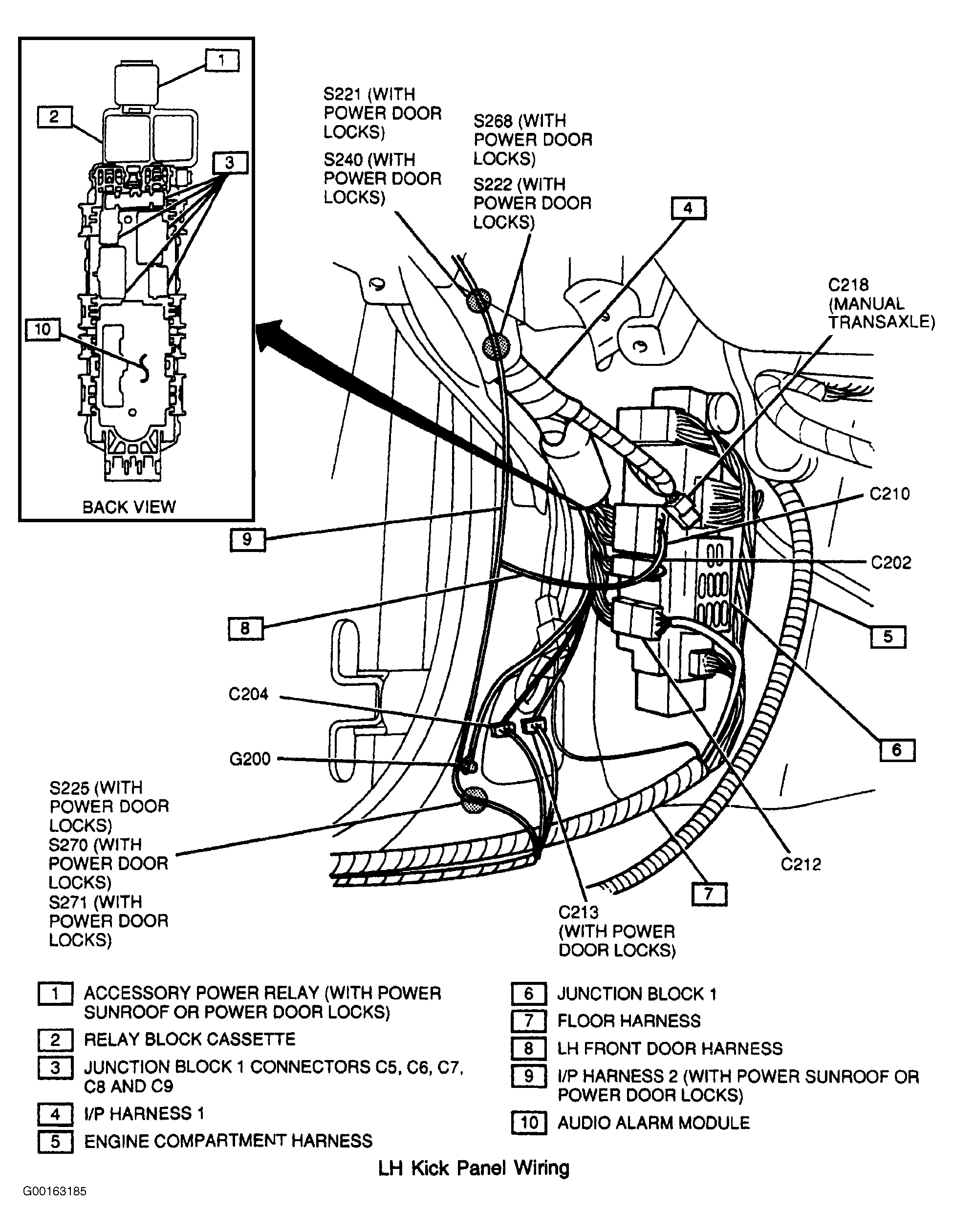

| Audio Alarm Module (AAM) | Behind Driver Side Kick Panel, Attached To Junction Block. Fig 1 |

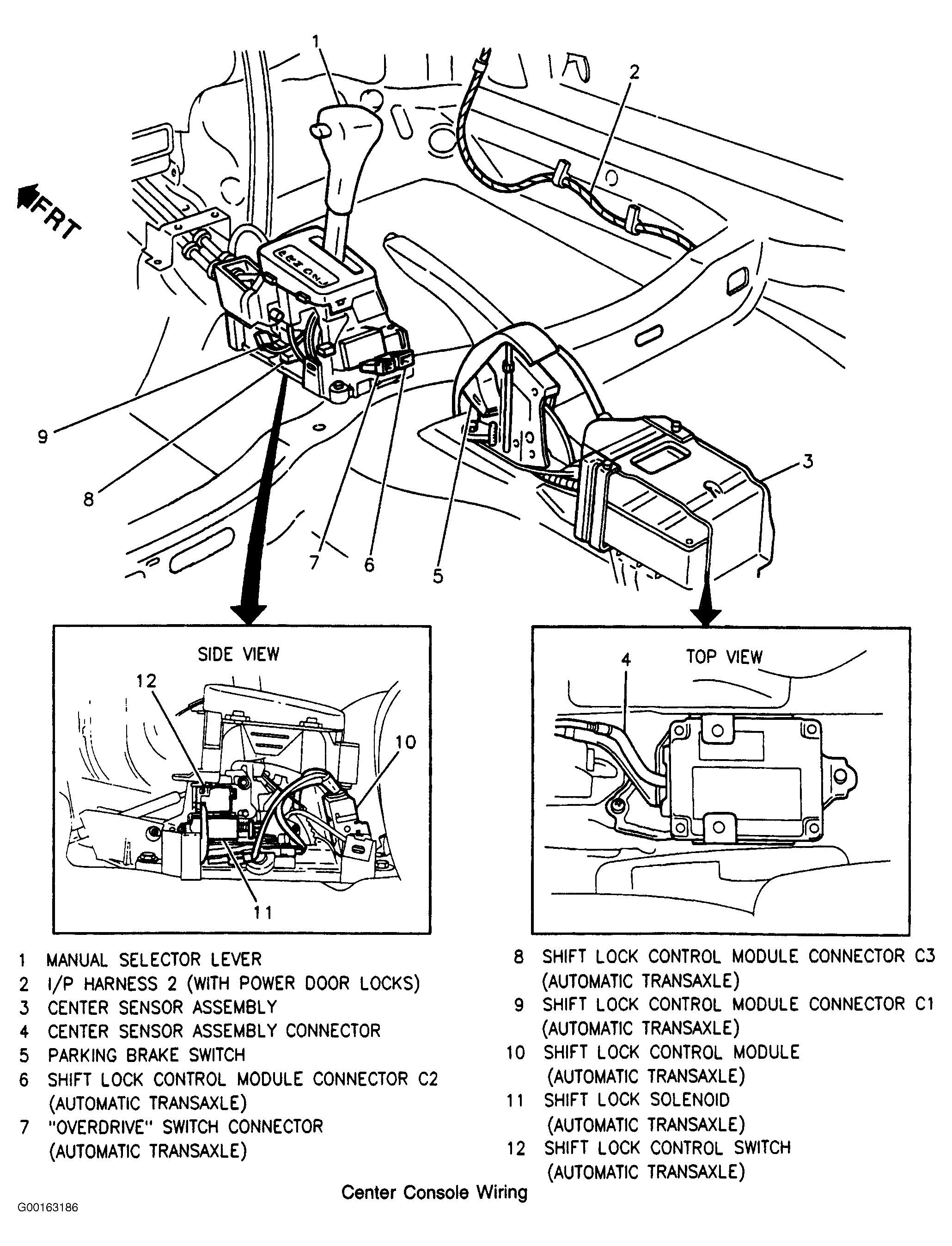

| Center Sensor Assembly (CSA) | Below Center Console, Between Front Seats. Fig 2 |

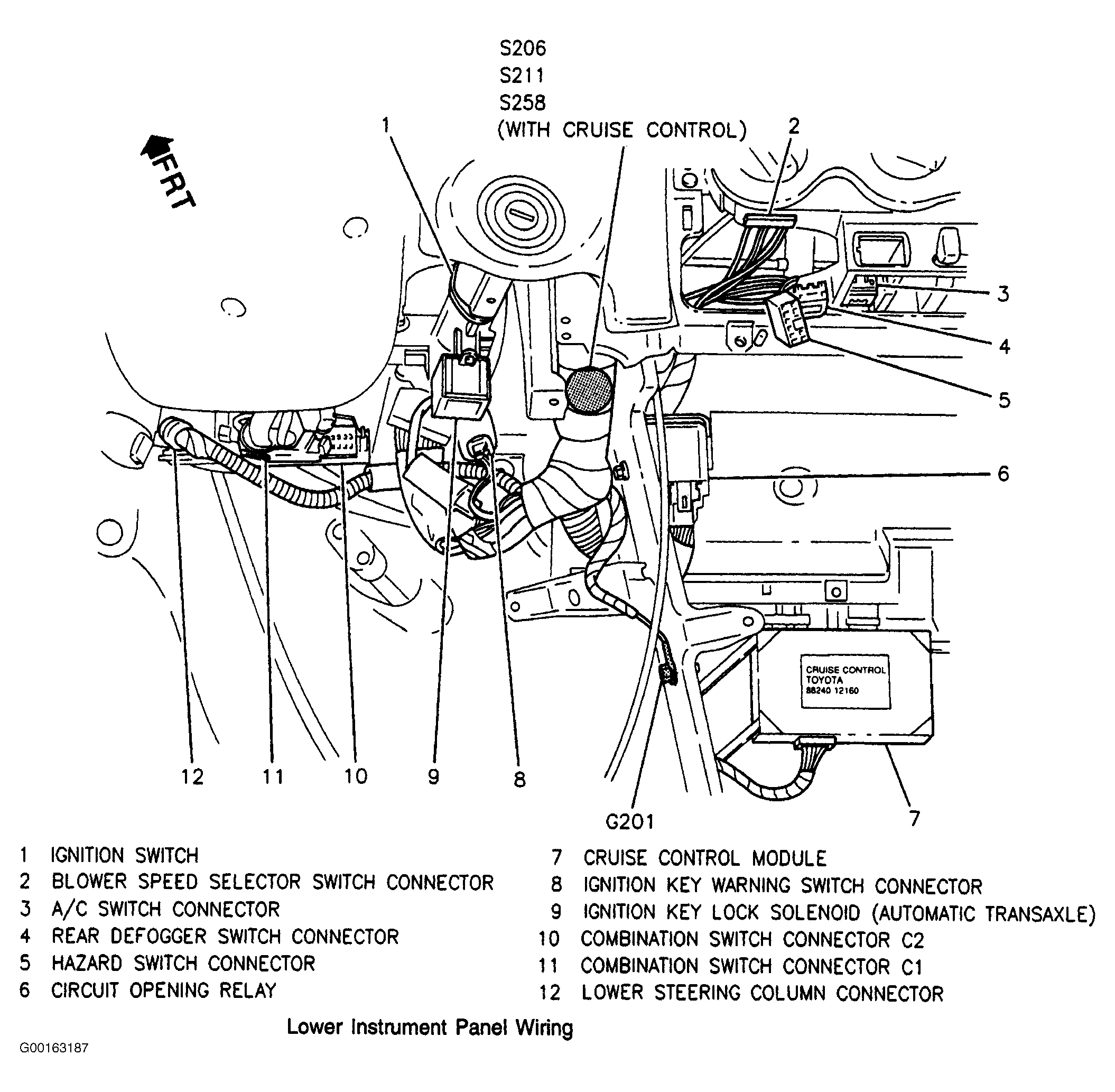

| Cruise Control Module (CCM) | Front Of Center Console, Below Radio. Fig 3 |

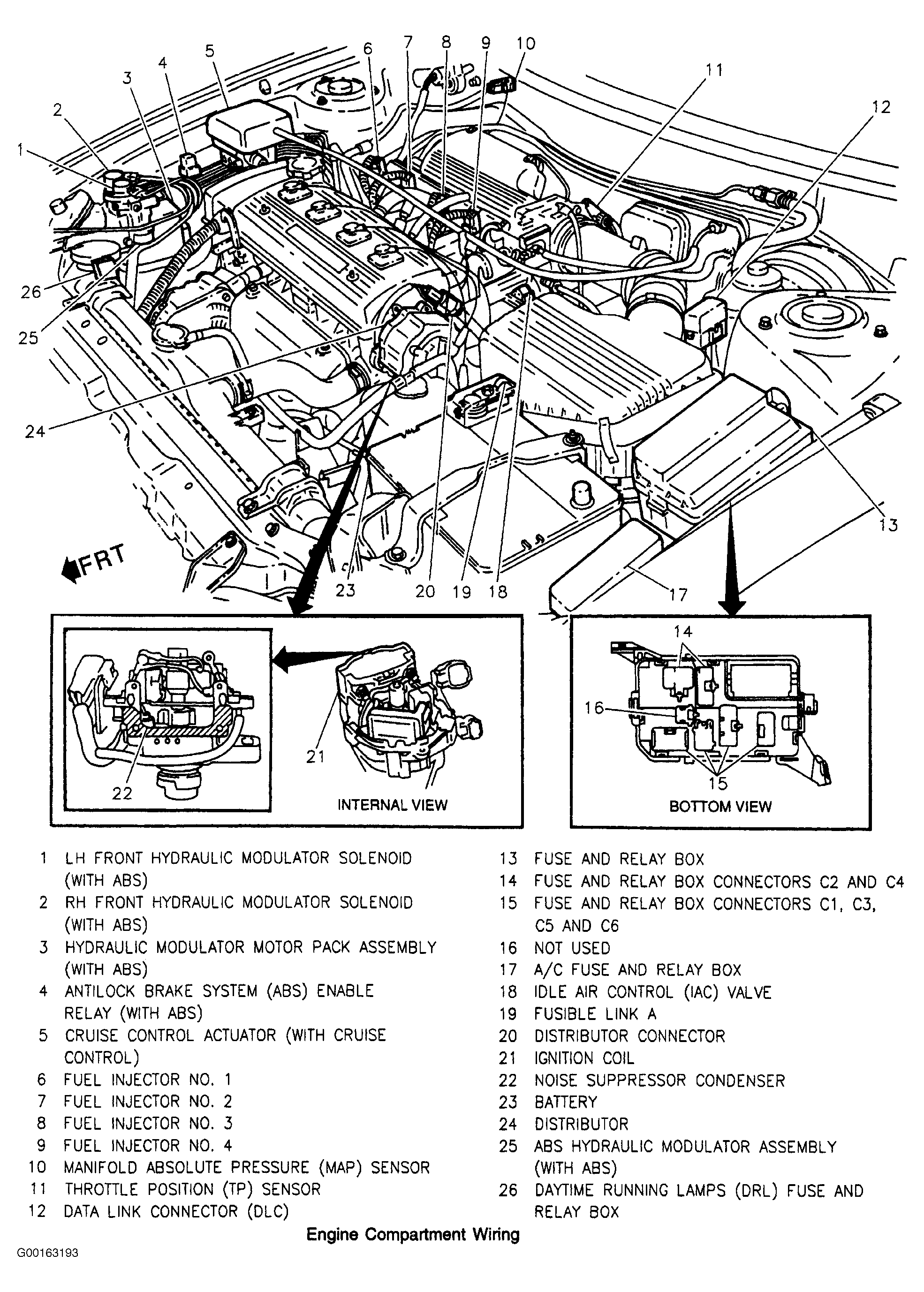

| Data Link Connector (DLC) | Driver Side Of Engine Compartment, On Strut Tower. Fig 4 |

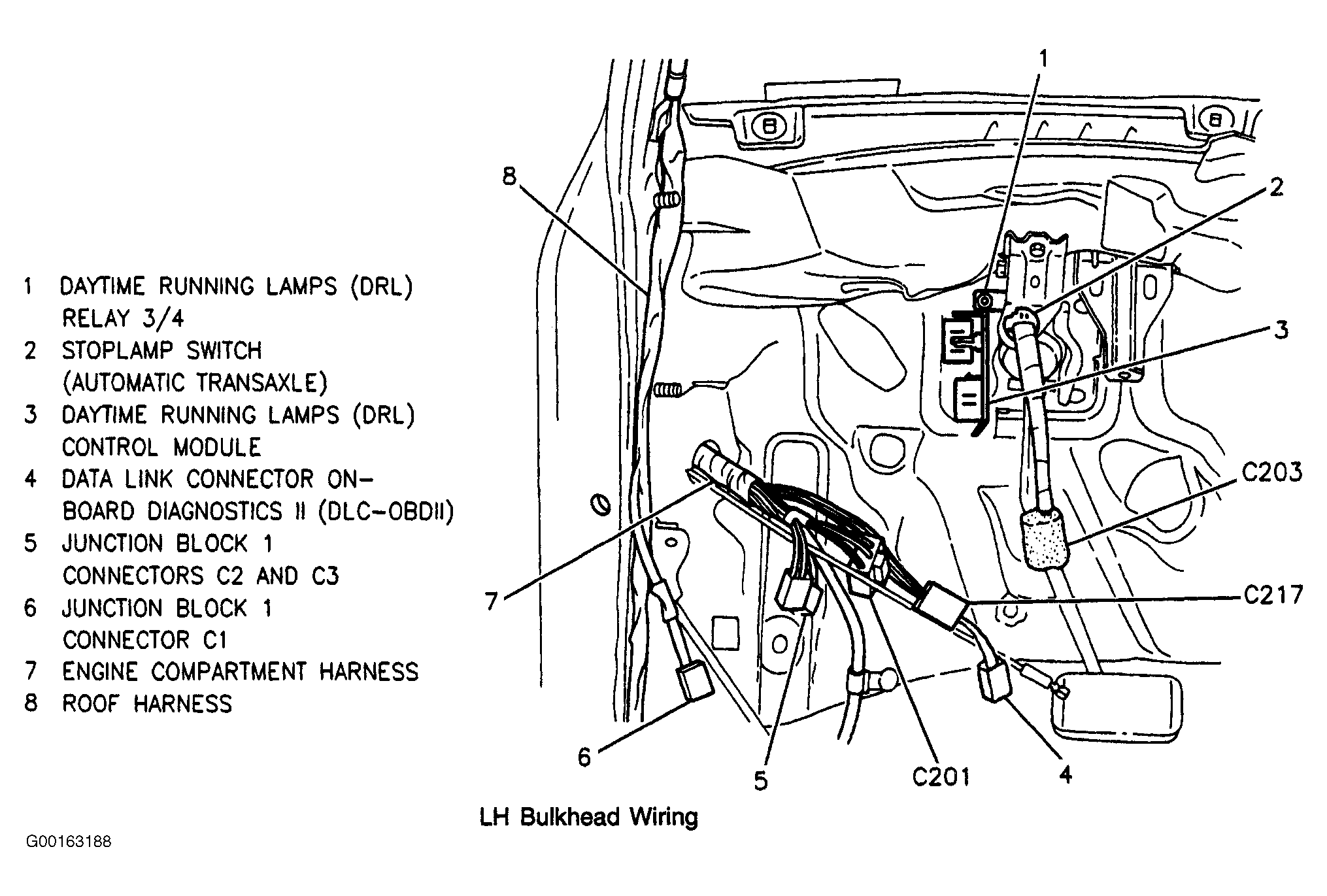

| Data Link Connector (DLC OBD-II) | Below Driver Side Of Instrument Panel, Attached To Knee Bolster. Fig 5 |

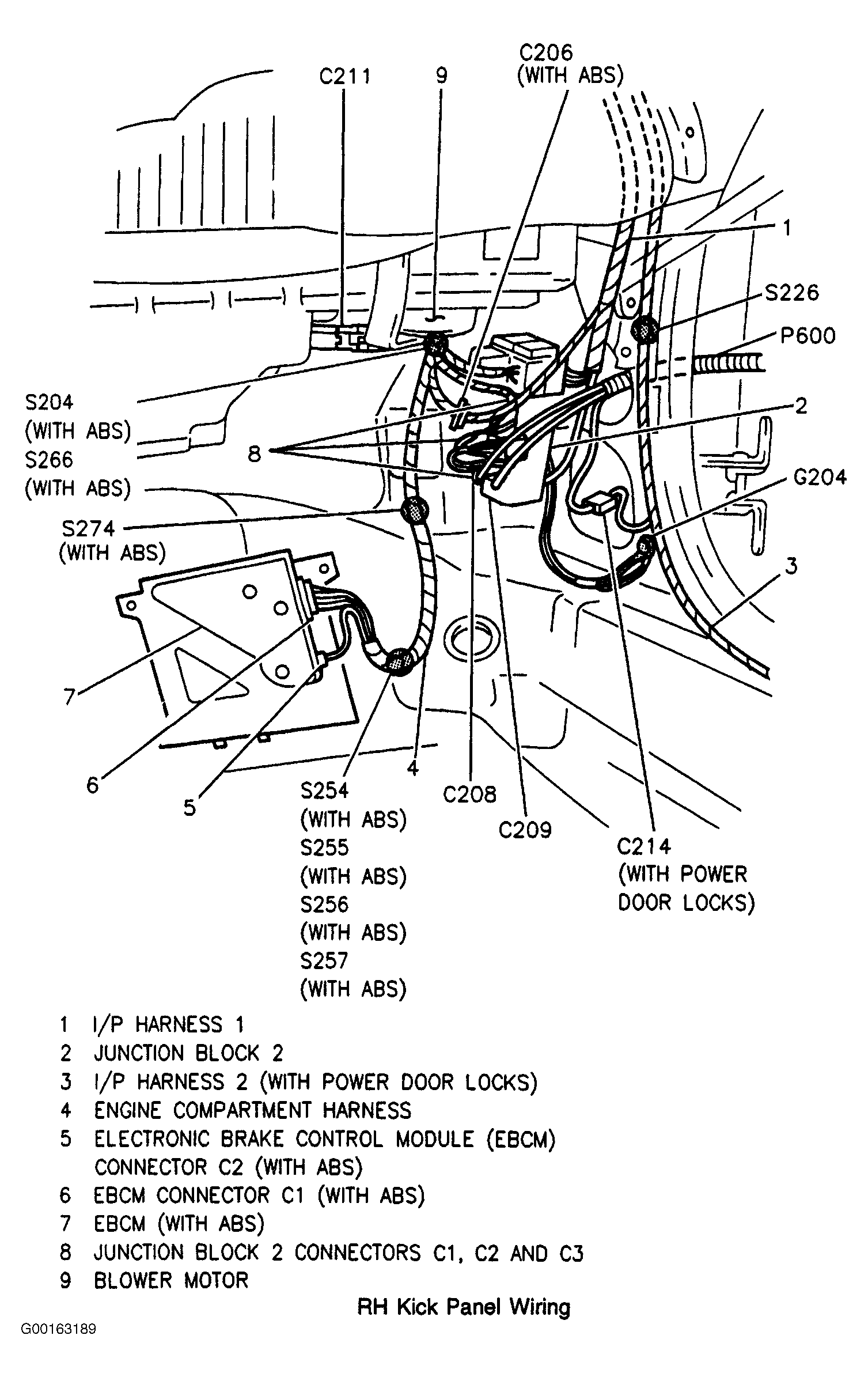

| Electronic Brake Control Module (EBCM) | Under Front Of Passenger Compartment Carpet. Fig 6 |

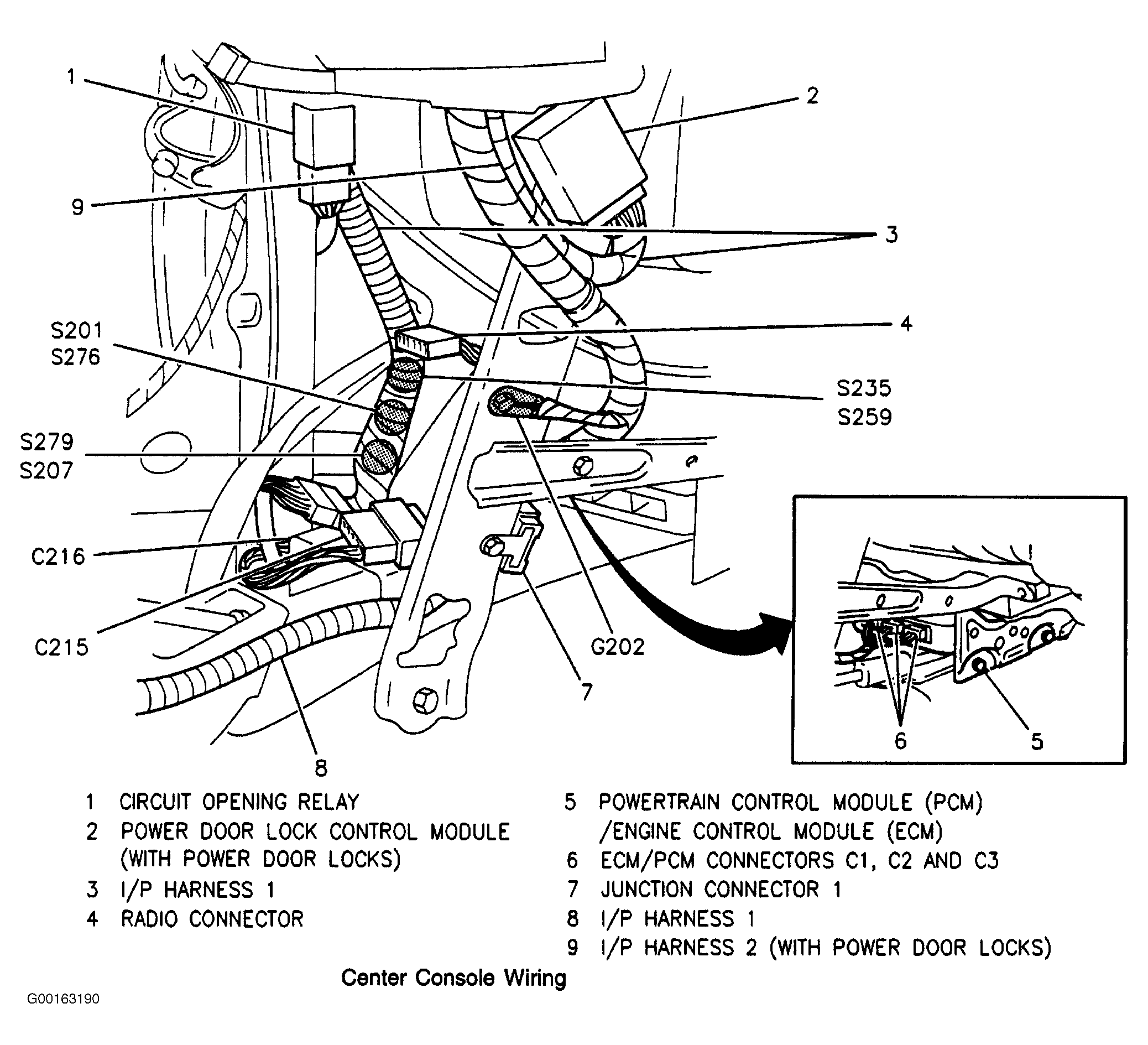

| Engine Control Module - VIN 6/Powertrain Control Module - VIN 9 (ECM/PCM) | Front Of Center Console, Below Blower Case. Fig 7 |
| Fuse & Relay Box | Driver Front Of Engine Compartment, Left Of Air Cleaner. Fig 4 |
| Junction Block 1 | Lower Driver Side Of Shroud, Behind Kick Panel. Fig 1 |

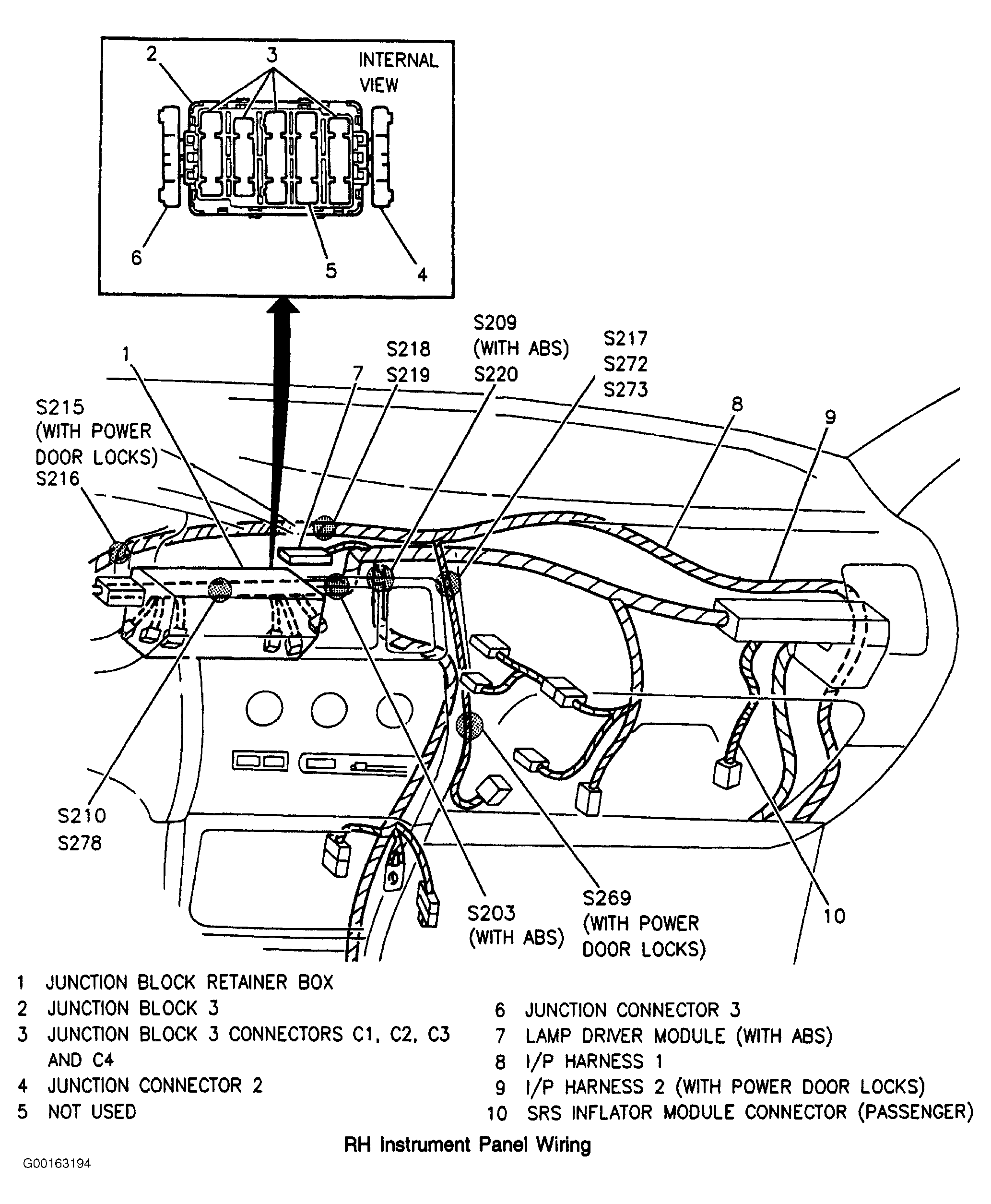

| Junction Block 3 | Behind Center Of Instrument Panel, In Junction Block Retainer. Fig 8 |
| Junction Connector 1 (6 Terminals) | Behind Center Of Instrument Panel, Attached To Passenger Side Instrument Panel Support Brace. Fig 7 |
| Junction Connector 3 (22 Terminals) | Behind Center Of Instrument Panel, In Junction Block Retainer. Fig 8 |
| OBD-II Fuse Box | Driver Side Of Instrument Panel, On Junction Block 1. |

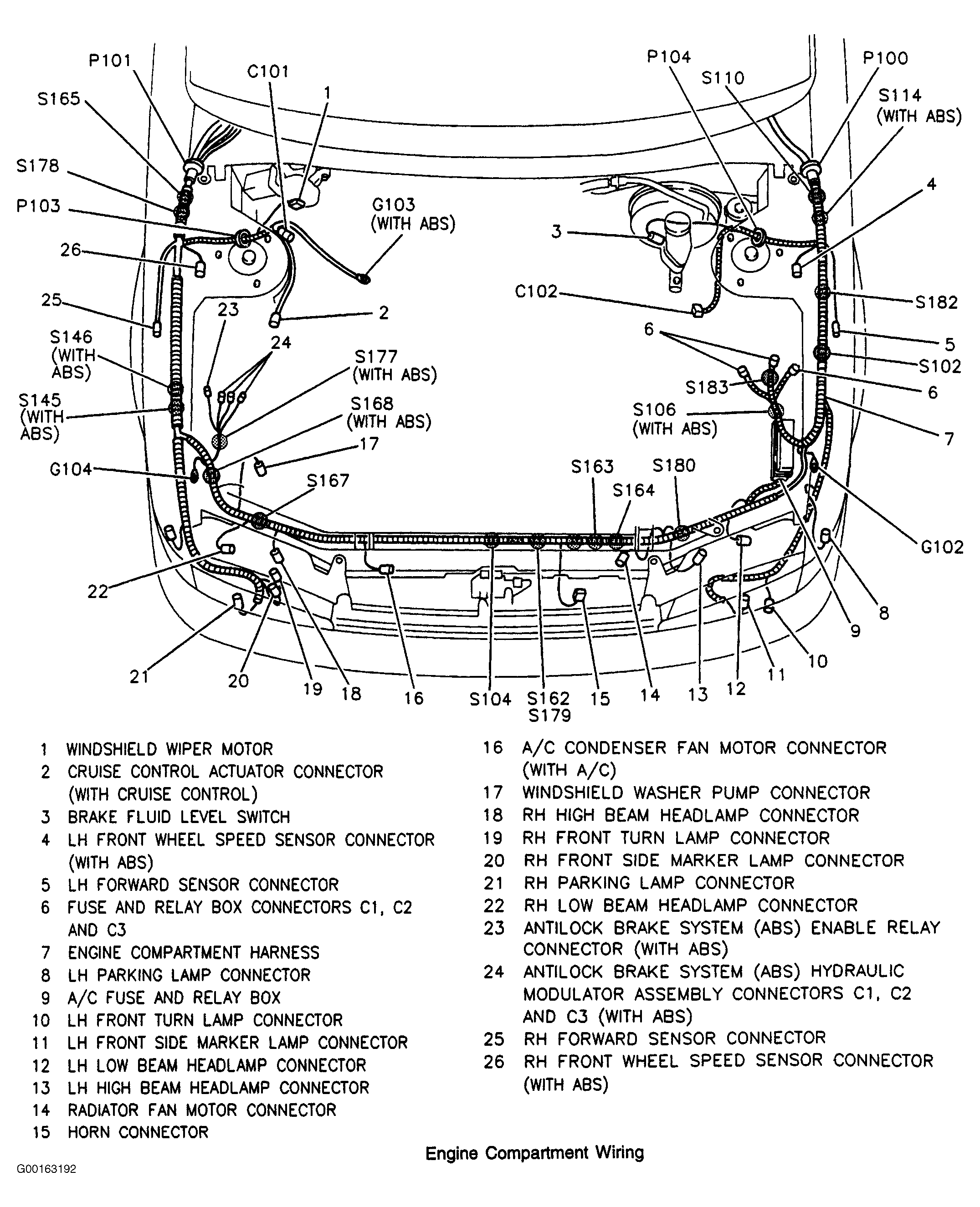

| C102 (4 Terminals) | Engine Compartment Harness To Engine Accessory Harness, Driver Side Of Engine Compartment. Fig 9 |
| C206 (18 Terminals) | Instrument Panel Harness "1" To Engine Main Harness, Behind Passenger Side Kick Panel. Fig 6 |
| C215 (20 Terminals) | Instrument Panel Harness "1" To Engine Accessory Harness, Under Center Console Below Radio. Fig 7 |
| C216 (22 Terminals) | Instrument Panel Harness "1" To Engine Accessory Harness, Under Center Console Below Radio. Fig 7 |
| C217 (6 Terminals) | Instrument Panel Harness "1" To DLC - OBD-II Jumper, Left Of Steering Column Behind Instrument Panel. Fig 5 |
| G102 | Driver Front Of Engine Compartment, Near A/C Fuse & Relay Box. Fig 9 |

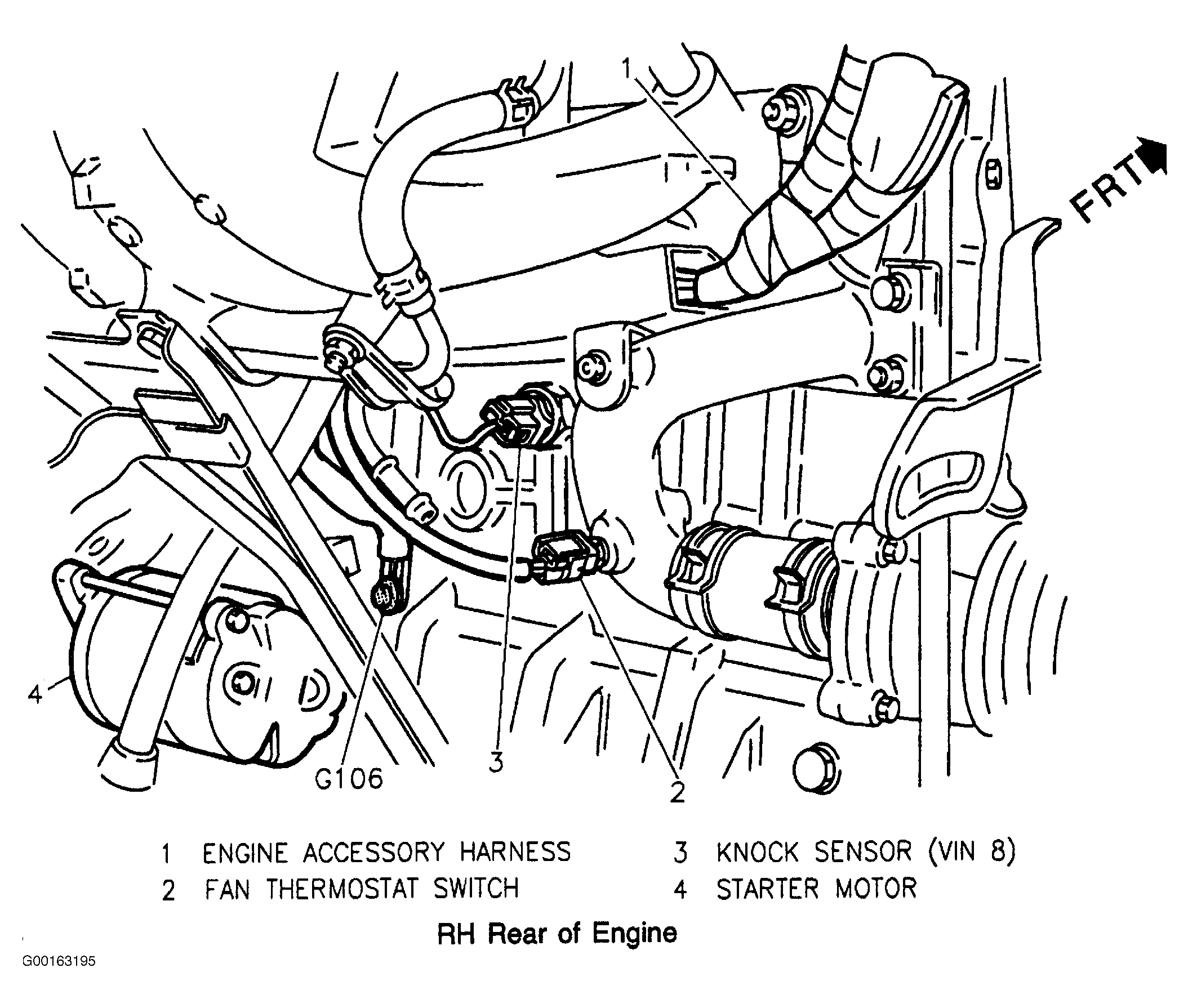

| G106 | Rear Of Engine, Under Intake Manifold. Fig 10 |
| G200 | Behind Driver Side Kick Panel. Fig 1 |
| P100 | Rear Of Engine Compartment, In Driver Side Inner Fender. Fig 9 |

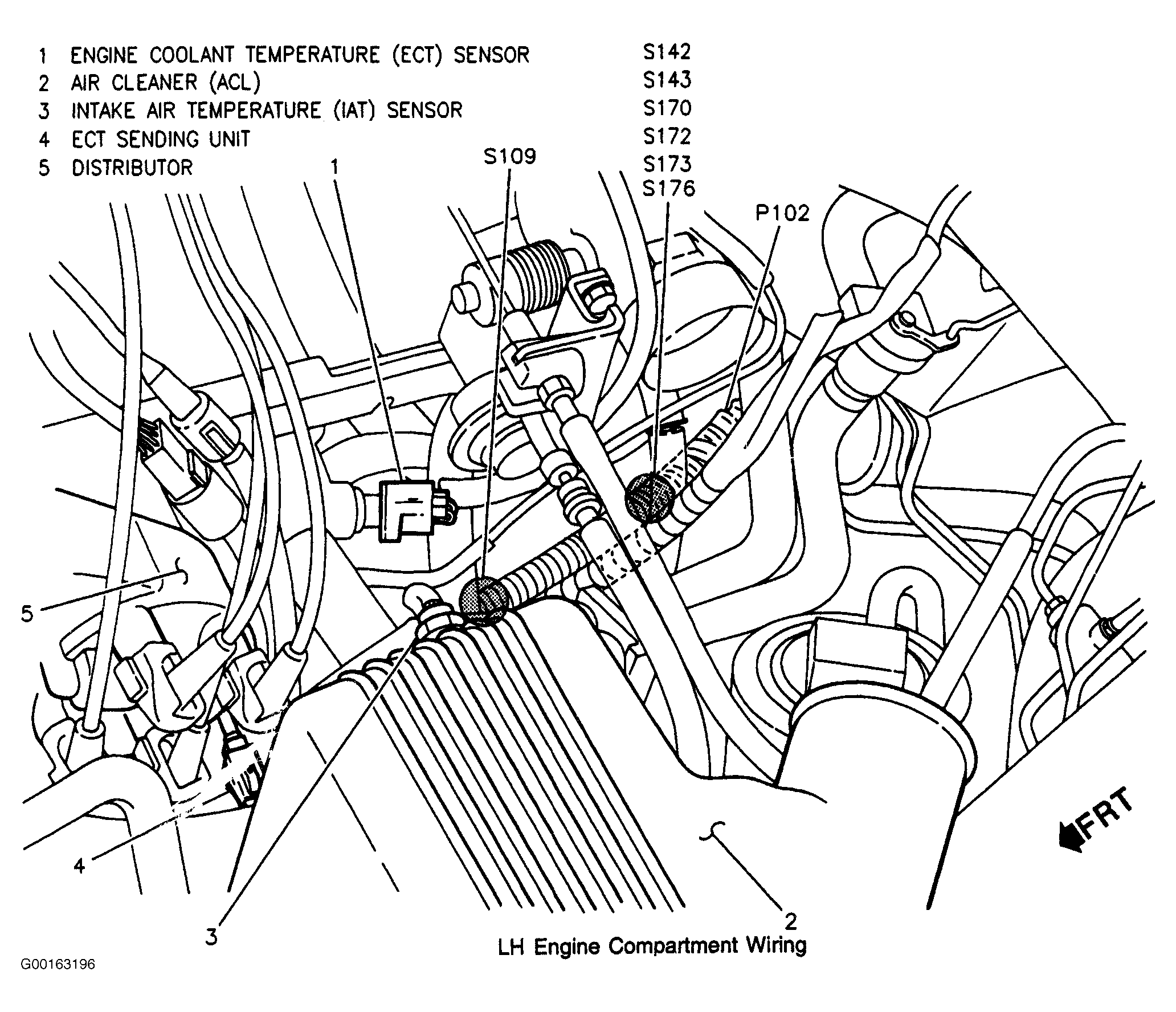

| P102 | Center Rear Of Engine Compartment. Fig 11 |
| P104 | Rear Of Engine Compartment, In Driver Side Inner Fender. Fig 9 |
| P303 | Under Passenger Side Front Seat. |
| S170 | Engine Accessory Harness, Near P102. Fig 11 |
| S173 | Engine Accessory Harness, Near P102. Fig 11 |
| S176 | Engine Accessory Harness, Near P102. Fig 11 |

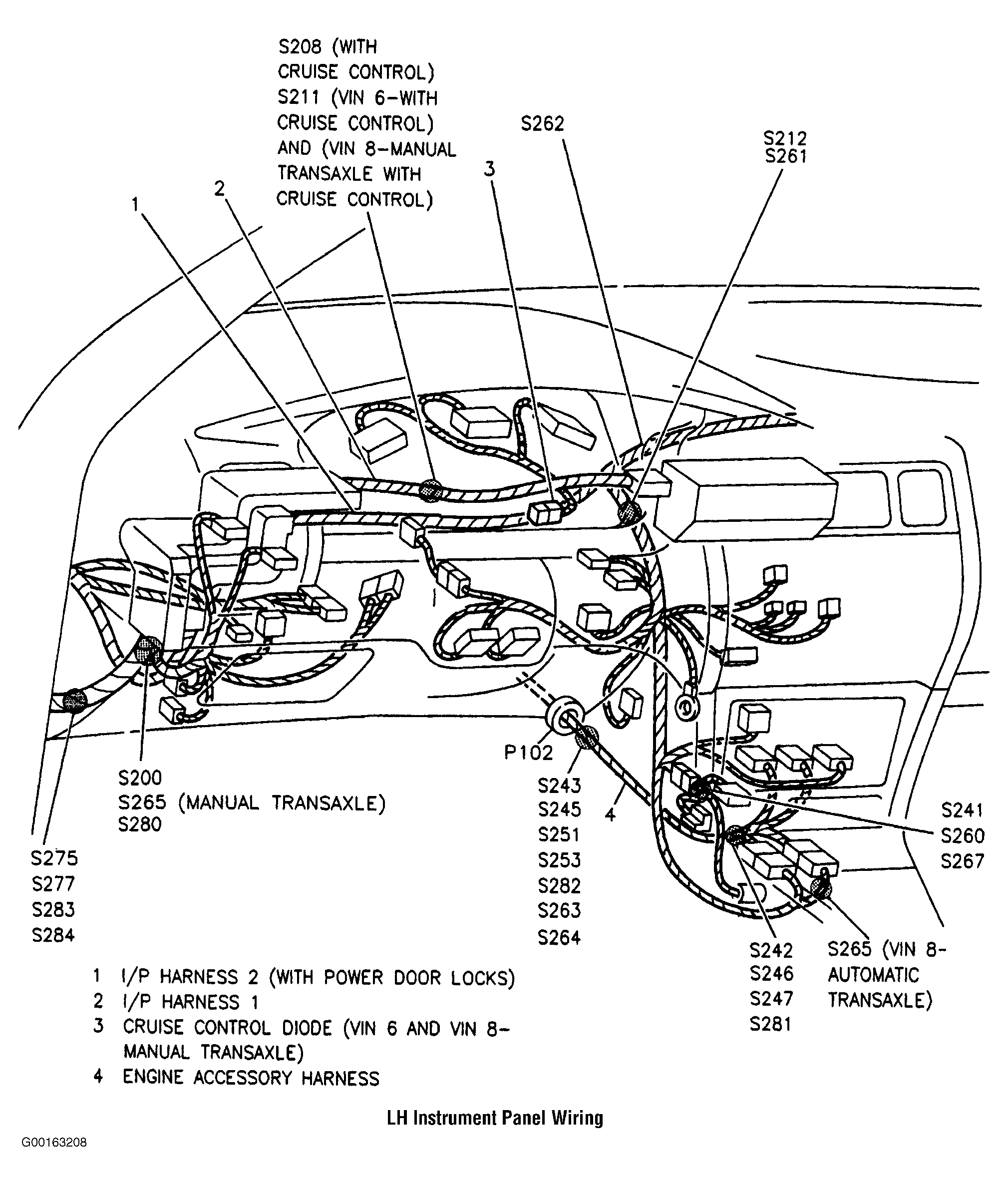

| S200 | Instrument Panel Harness "1", Near Junction Block 1 Connector C8 Breakout. Fig 12 |
| S206 | Instrument Panel Harness "1", Near G201 Breakout. Fig 3 |
| S207 | Instrument Panel Harness "1", Near ECM/PCM Connector C1 Breakout. Fig 7 |
| S208 (Cruise Control) | Instrument Panel Harness, Near C217 Breakout. Fig 12 |
| S242 | Engine Accessory Harness, Near C215 Breakout. Fig 12 |
| S243 | Engine Accessory Harness, Near P102. Fig 12 |
| S246 | Engine Accessory Harness, Near C215 Breakout. Fig 12 |
| S247 | Engine Accessory Harness, Near C215 Breakout. Fig 12 |
| S276 (Manual Transaxle) | Instrument Panel Harness "1", Near Cruise Control Module Connector Breakout. Fig 7 |
| S277 | Instrument Panel Harness "1", Near C217 Breakout. Fig 12 |
| S278 | Instrument Panel Harness "1", Near Junction Block 3 Connector C3 Breakout. Fig 8 |
