Piston & Rod Assembly

WARNING: This page is about a different variant/trim than selected.

Install piston with arrow on top of piston toward timing belt end of engine and oil hole toward intake manifold side. See Fig 1.

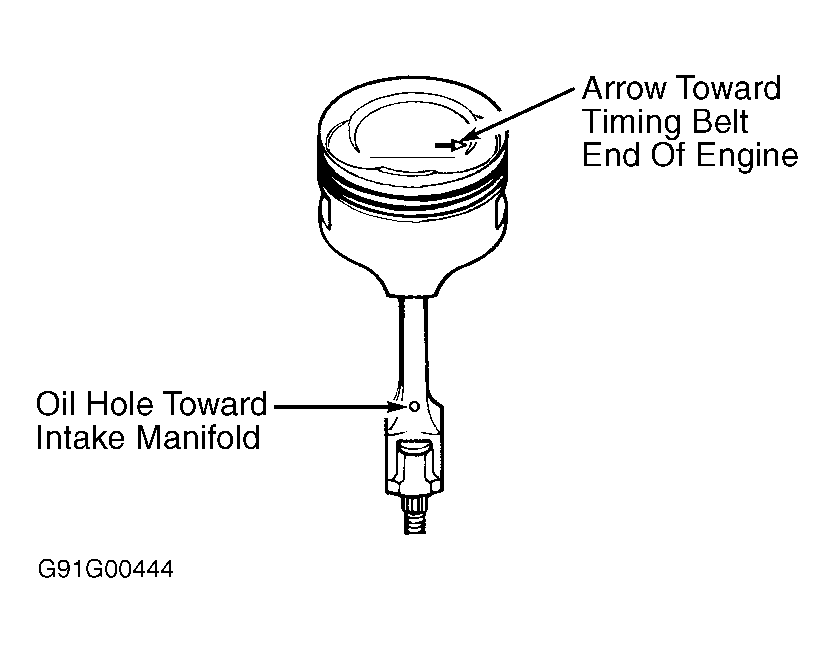

Fig 1: Aligning Piston & Connecting Rod

Courtesy of GENERAL MOTORS CORP.

NOTE: Two standard piston sizes and cylinder bore diameters are used. Piston and cylinder bores are marked "1" or "2". Mark is on top of piston or cylinder block deck surface. See Figure.
