Driver-Side Inflator Module: Removal

WARNING: This page is about a different car, the 1997 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS  . Disable the SRS system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .
  2. Driver inflator module is located on steering wheel hub. Ensure front wheels face straight ahead. Remove 2 side trim covers from steering column. Remove 2 Torx screws, Connector Position Assurance (CPA) clip and disconnect upper steering column electrical connector. Remove inflator module from steering wheel. See Fig 1 .

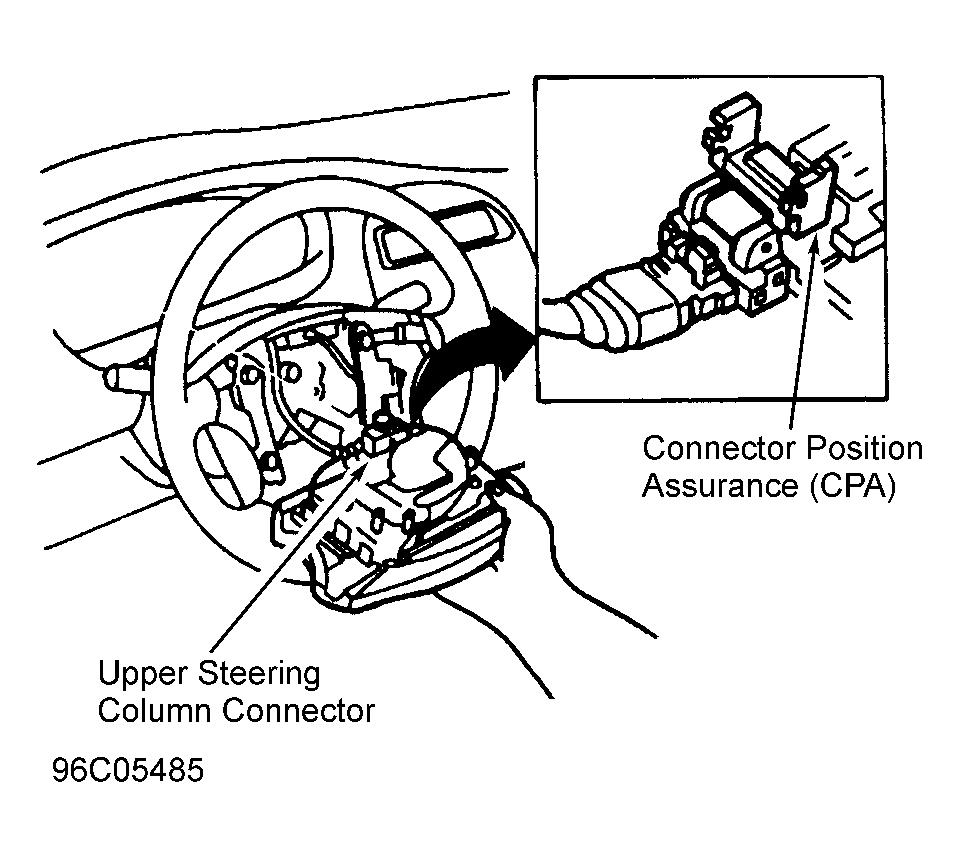

Fig 1: Removing Driver-Side Inflator Module
G96C05485Courtesy of GENERAL MOTORS CORP.
