Wipers Do Not Operate With Front Wiper/Washer Switch In INT Position (Models With Intermittent Wiper System)

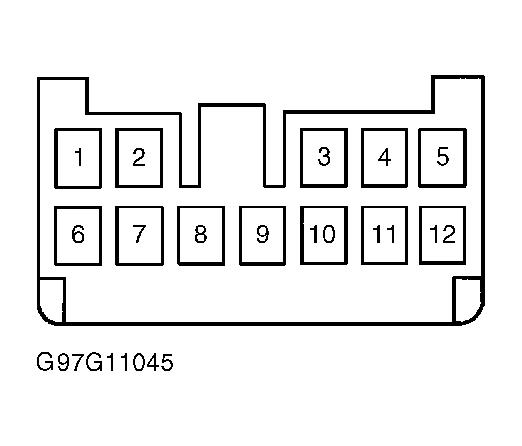

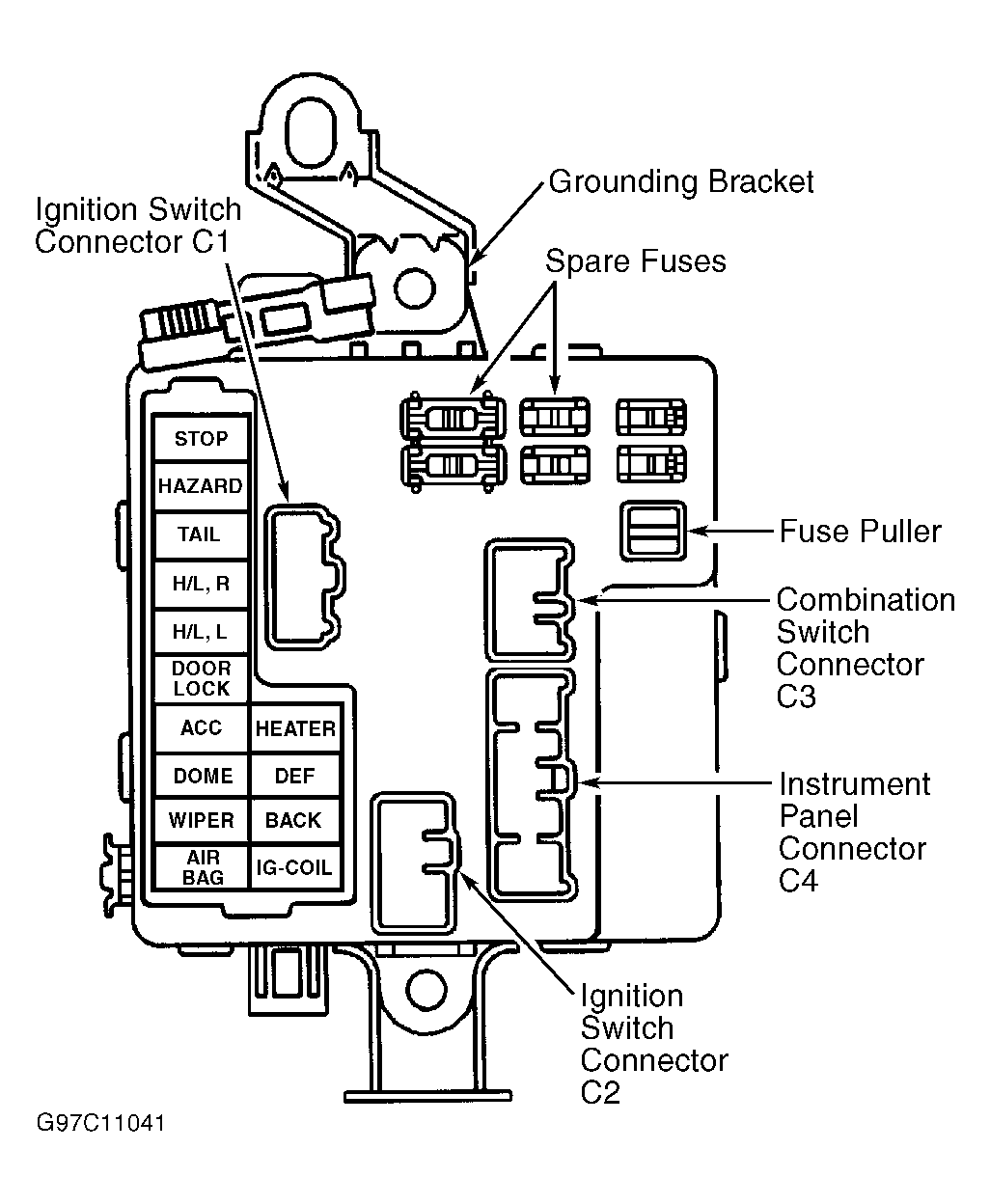

Using test light, backprobe between junction block Black 12-pin connector C3 terminal No. 9 (Black wire) and battery voltage. See Figure and Figure. If test light illuminates, replace combination switch. If test light does not illuminate, replace junction block.
