Chart D - Abs Active Indicator Malfunctioning

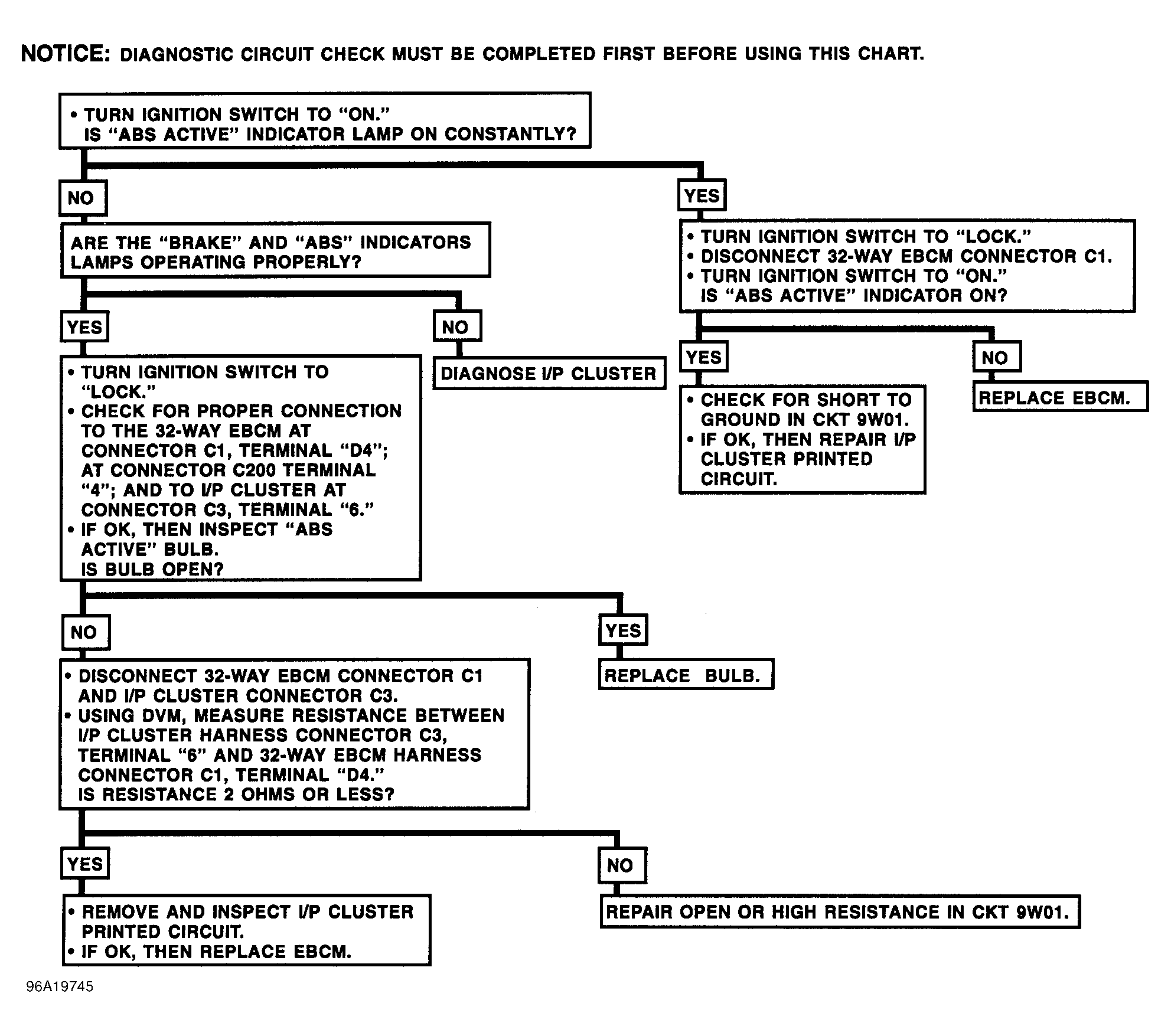

Fig 1: Chart D, Flow Chart

G96A19745

Courtesy of GENERAL MOTORS CORP.
