Neutral Safety Switch: 4-Speed

  1. Disconnect shift control cable from neutral safety switch. Loosen neutral safety switch retaining bolt. Move transmission shift lever rearward, then turn back 2 notches to obtain neutral position. Ensure gearshift lever is in Neutral. Remove shift lever.
  2. Ensure neutral reference line and cut groove in neutral safety switch are aligned. Rotate switch as necessary. See Fig 1 . Tighten switch retaining bolt to 44 INCH lbs. (5 N.m). Install shift lever and tighten nut to 115 INCH lbs. (13 N.m). Install shift control cable. Ensure starter operates with transmission in Neutral and Park only.

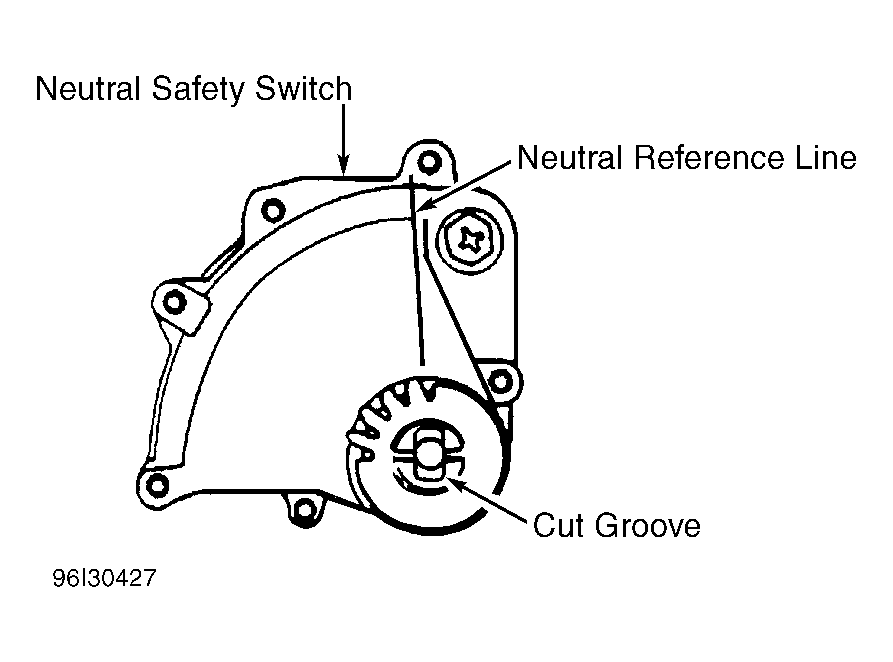

Fig 1: Adjusting Neutral Safety Switch (4-Speed)
G96I30427Courtesy of GENERAL MOTORS CORP.
