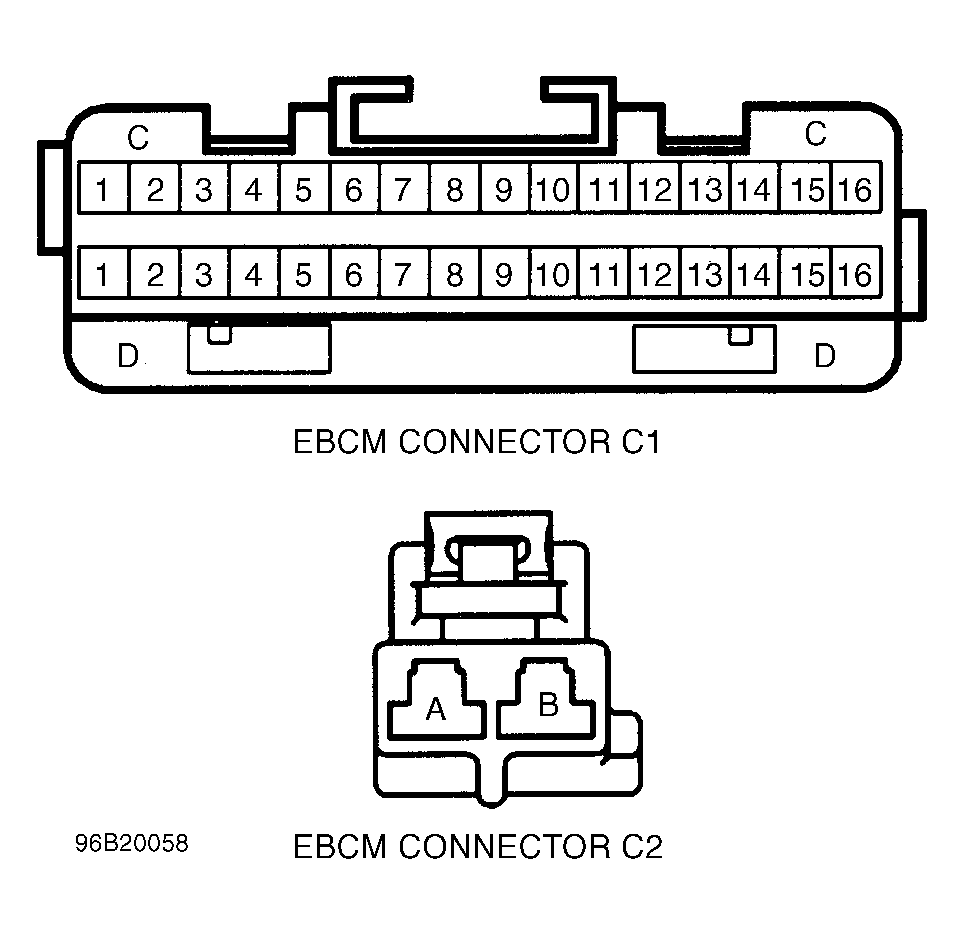

EBCM Connector Terminal Identification
EBCM CONNECTOR TERMINAL IDENTIFICATION
| Terminal (Wire Color) |
Circuit |
| Connector C1 |
| C1 (BRN) |
Right Front Motor High |
| C2 (ORN/BLK) |
Accelerometer High (4WD) |
| C3 (GRN/WHT) |
Stoplight Switch Input |
| C5 (PPL/WHT) |
Serial Data Line Information |
| C6 (ORN/BLK) |
4WD Signal (4WD) |
| C7 (LT. GRN/BLK) |
Left Front Motor Low |
| C9 (LT. GRN) |
Left Front Motor High |
| C10 (BLU) |
Left Front Wheel Signal Input |
| C11 (GRN) |
Right Front Wheel Signal Input |
| C12 (GRN/BLK) |
Right Front Wheel Signal Input |
| C13 (YEL) |
Rear Wheel Signal Input |
| C14 (YEL/BLK) |
Rear Wheel Signal Input |
| C15 (PNK/WHT) |
Idle-Up Signal |
| C16 (PNK/BLK) |
Rear Motor Low |
| D1 (BRN/BLK) |
Right Front Motor Low |
| D2 (YEL/GRN) |
Accelerometer Signal High (4WD) |
| D3 (ORN/WHT) |
Accelerometer Signal Low (4WD) |
| D4 (LT. GRN/RED) |
ABS ACTIVE Indicator Control |
| D5 (BLK/BLU) |
Lamp Driver Relay Control |
| D6 (YEL/BLU) |
ABS Enable Relay Control |
| D7 (PPL/WHT) |
BRAKE Indicator Control |
| D8 (WHT) |
Battery Power |
| D9 (YEL/GRN) |
Switched Ignition |
| D10 (BLU/BLK) |
Left Front Wheel Signal Input |
| D13 (RED/WHT) |
Right Front ABS Solenoid |
| D14 (BLU/WHT) |
Left Front ABS Solenoid |
| D16 (PNK) |
Rear Motor High |
| Connector C2 |
| A (WHT) |
Switched Battery Power |
| B (BLK) |
Ground - G105 |
Courtesy of GENERAL MOTORS CORP. ABS CONNECTOR LOCATION
| Connector |
Pins/Location |
| C200 |
22/Behind Left Instrument Panel, Near Junction Block |
| C201 |
16/Behind Left Instrument Panel, Near Junction Block |
