Wheel Speed Sensor

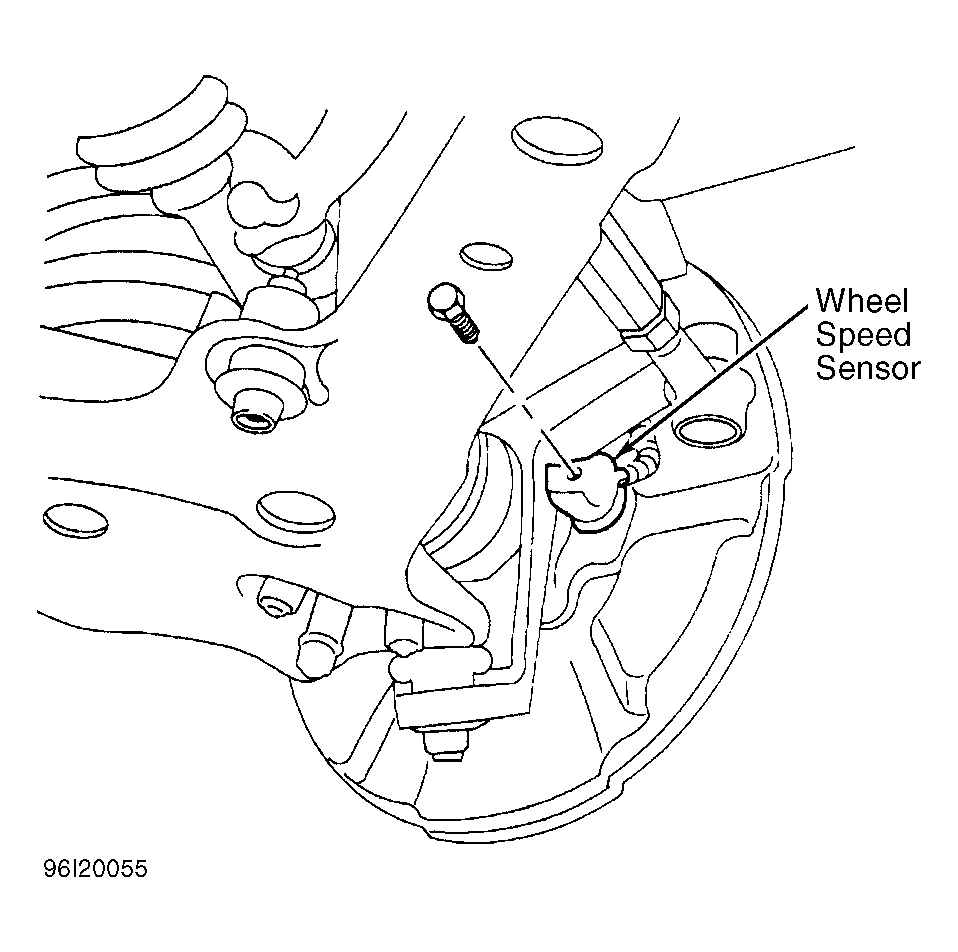

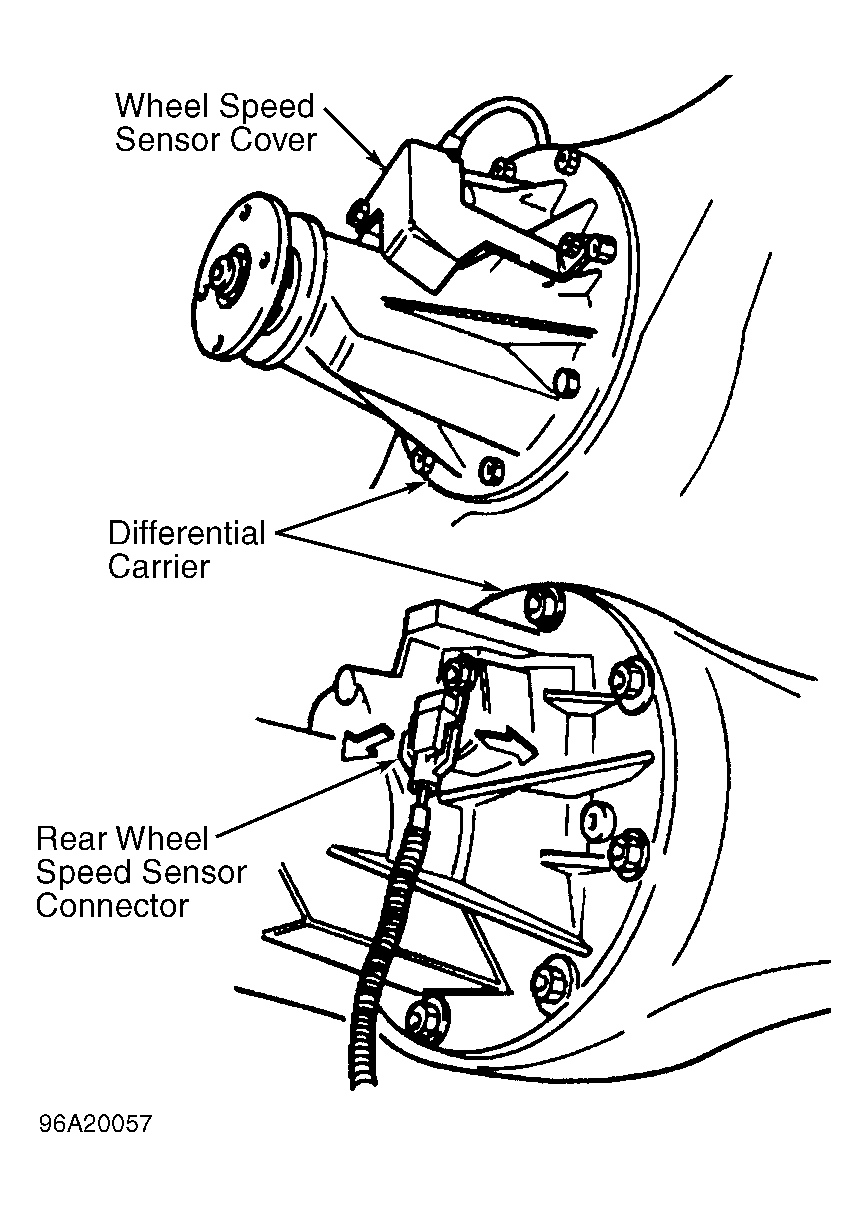

Wheel speed sensor is attached to steering knuckle on front wheels and on rear differential for rear wheels, and consists of a sensor and a toothed sensor ring. See Figure and Figure . Air gap is not adjustable and sensor is not repairable. Front outside drive axle must be replaced if sensor ring is damaged.
