Chart E - Abs Active Indicator Malfunctioning

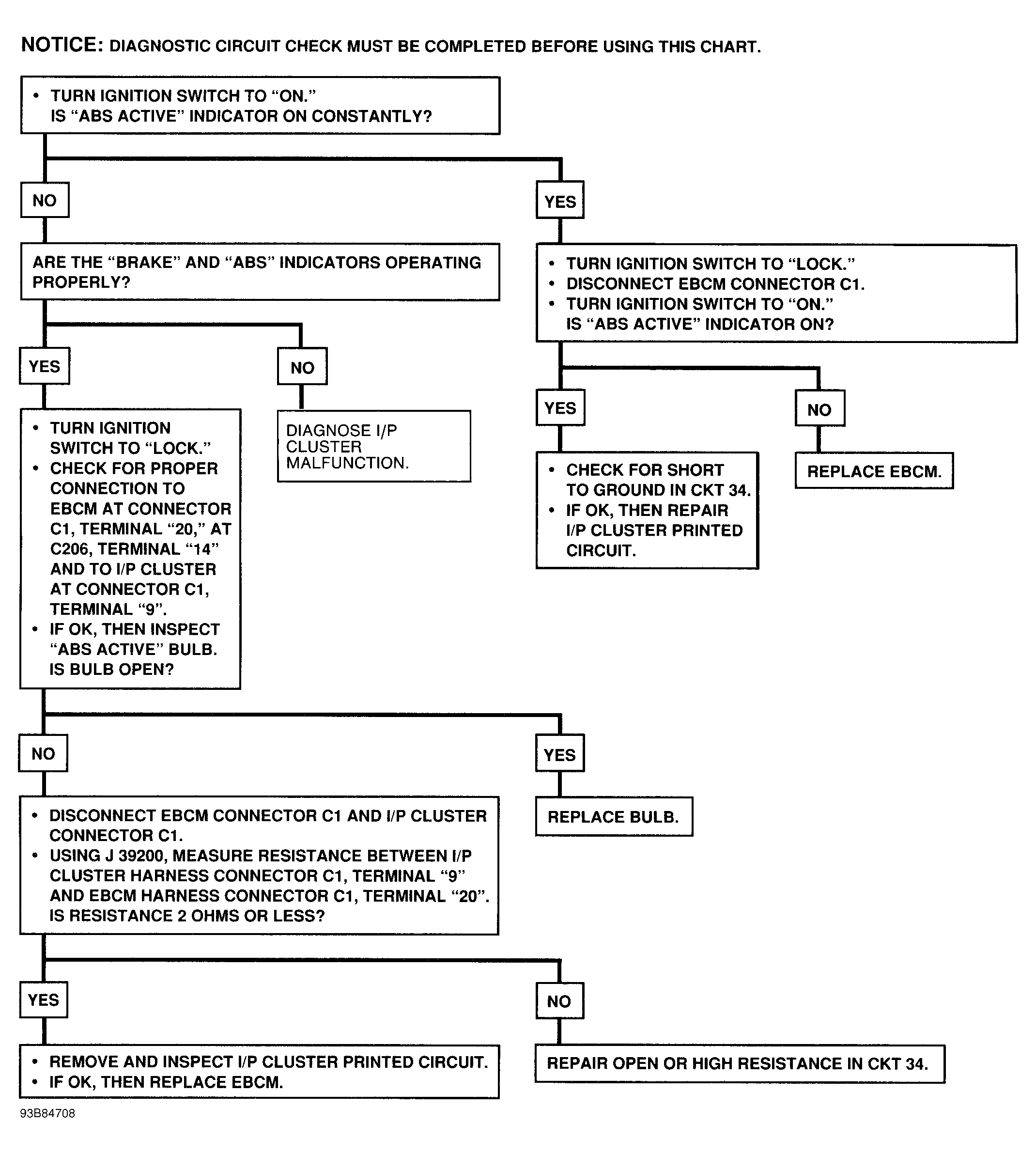

Fig 1: Chart E, Flow Chart

G93B84708

Courtesy of GENERAL MOTORS CORP.
