Test C: Scan Tool Will Not Communicate With Center Sensor Assembly Or Cruise Control Module

For testing procedure, refer to flowchart. See Fig 1 .

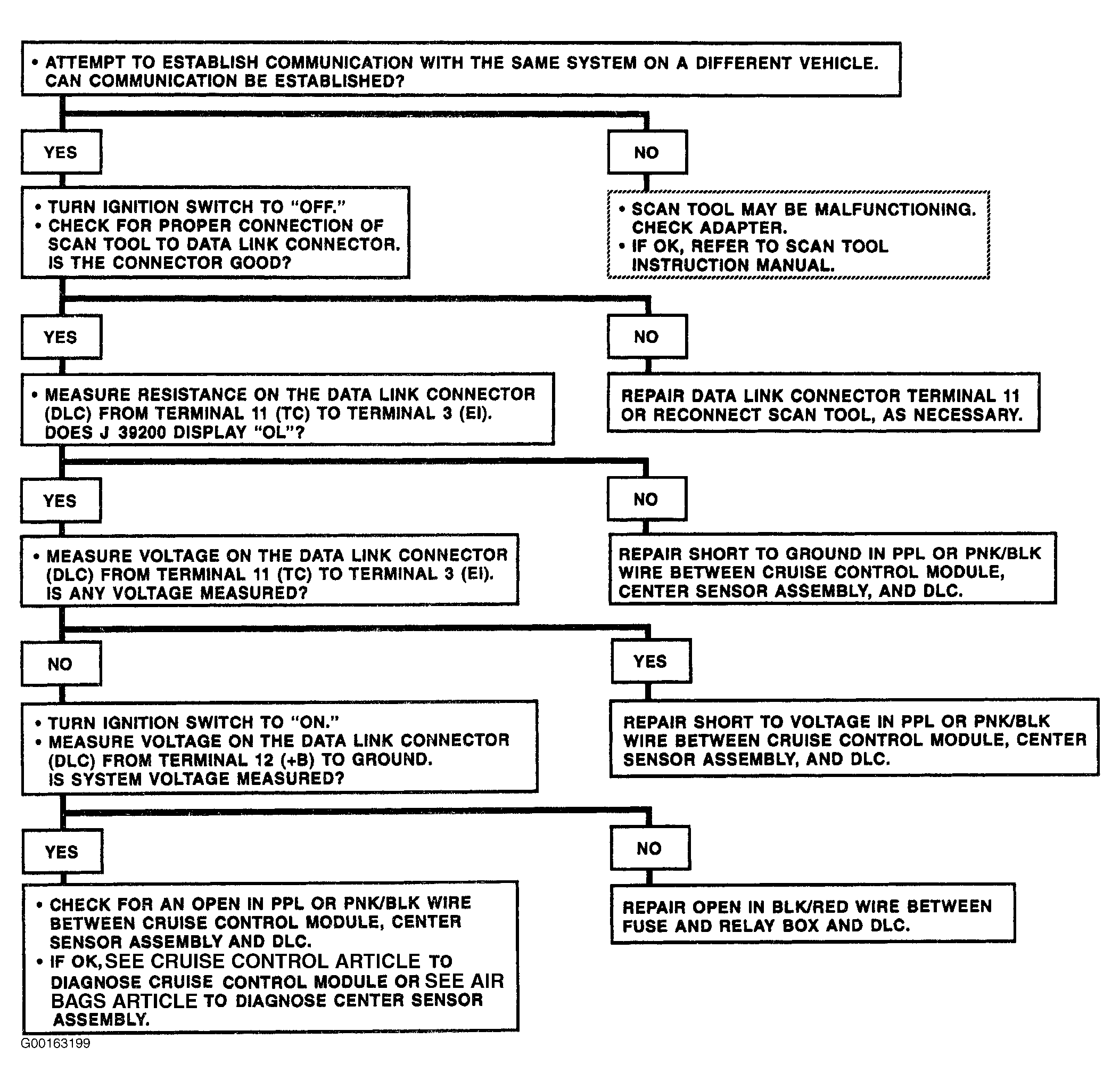

Fig 1: Test C: Scan Tool Will Not Communicate With Center Sensor Assembly Or Cruise Control Module
G00163199Courtesy of GENERAL MOTORS CORP.
