Prizm Base, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Data Link Communications Systems
>>
Connector Identification
Connector Identification

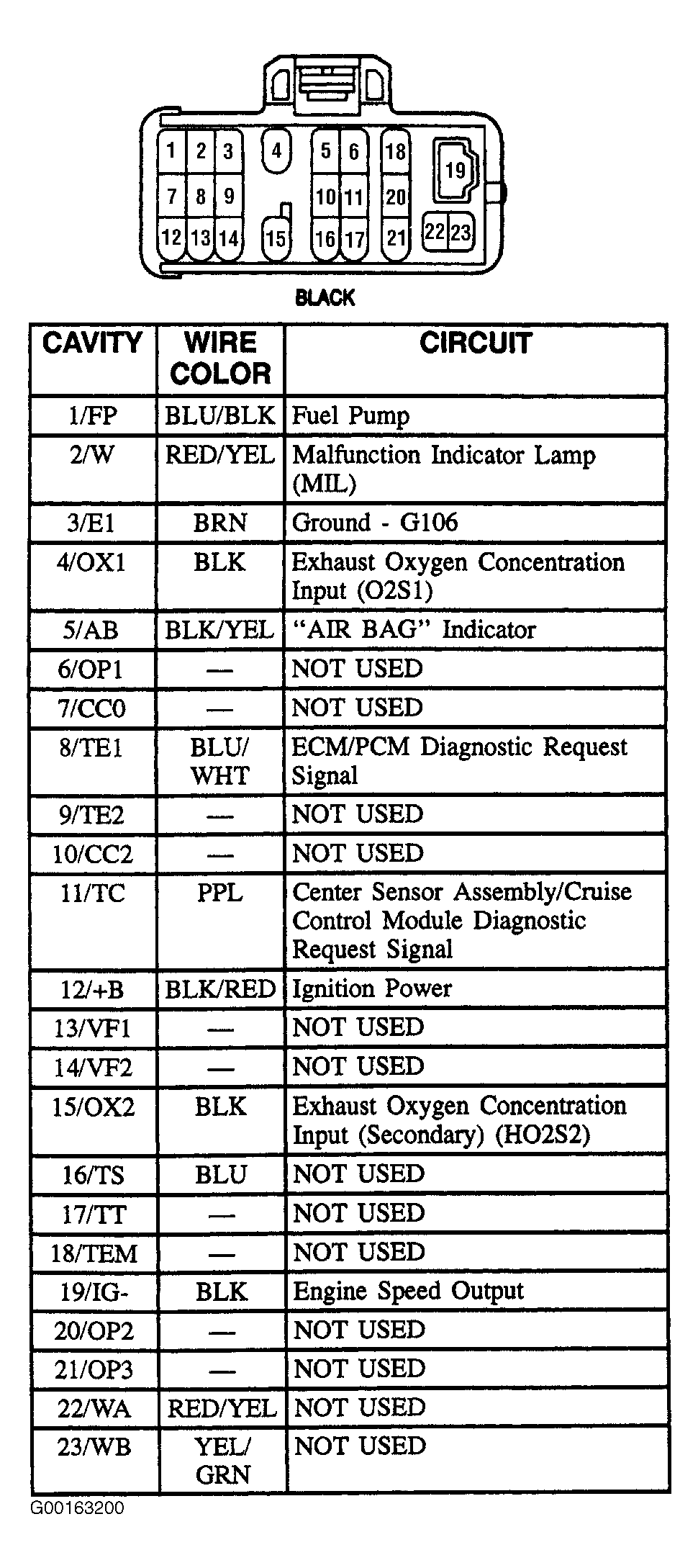

Fig 1: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.

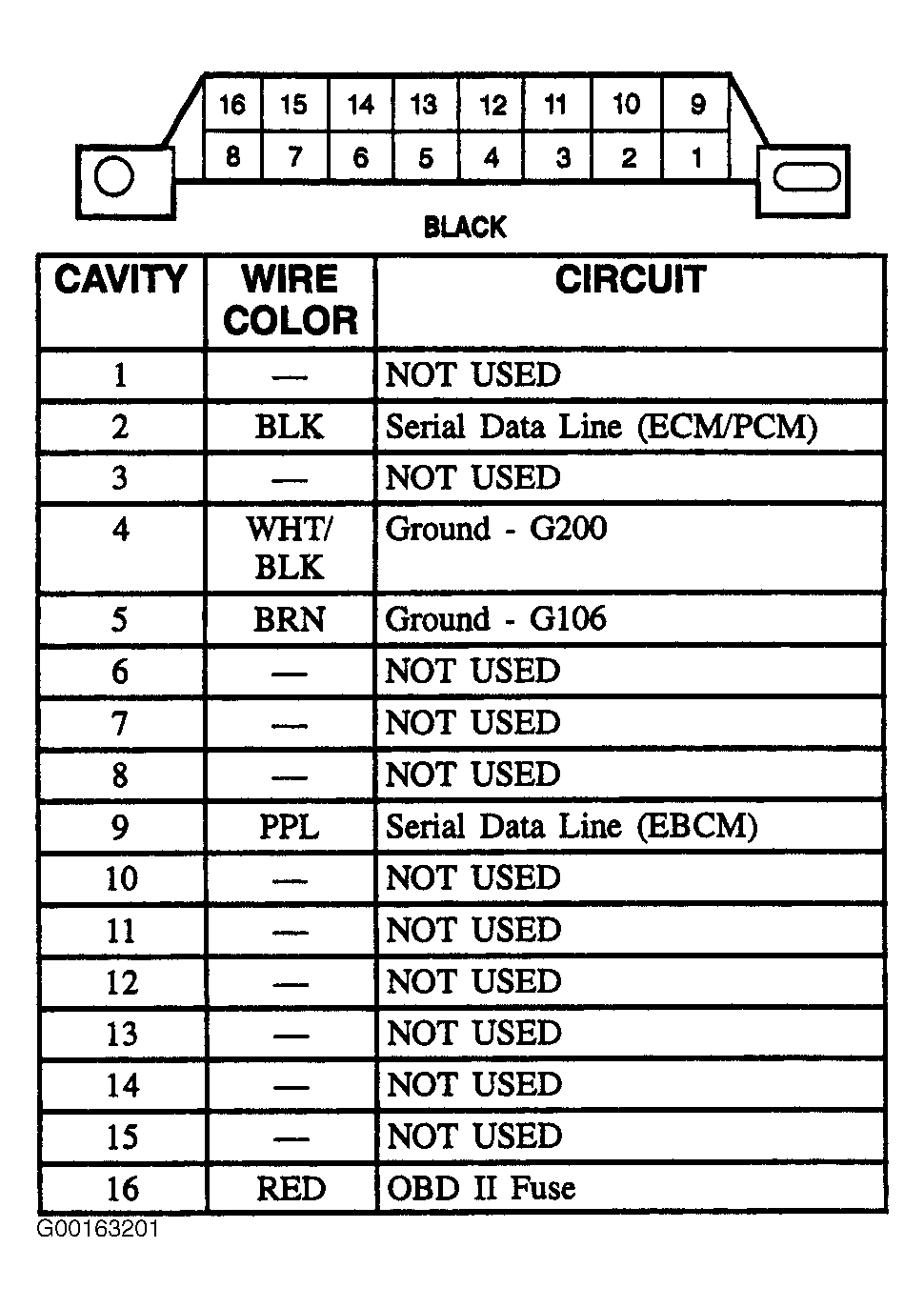

Fig 2: Identifying OBD-II DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
