Clutch Assembly: Installation
To install, reverse removal procedure. Tighten pressure plate and flywheel bolts in a crisscross pattern. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS . Fill transmission and transfer case with 75W-90 GL-4 transmission fluid.
CLUTCH SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Disc Runout (Maximum) | 0.031 (0.8) | |
| Flywheel Runout (Maximum) | 0.004 (0.01) | |

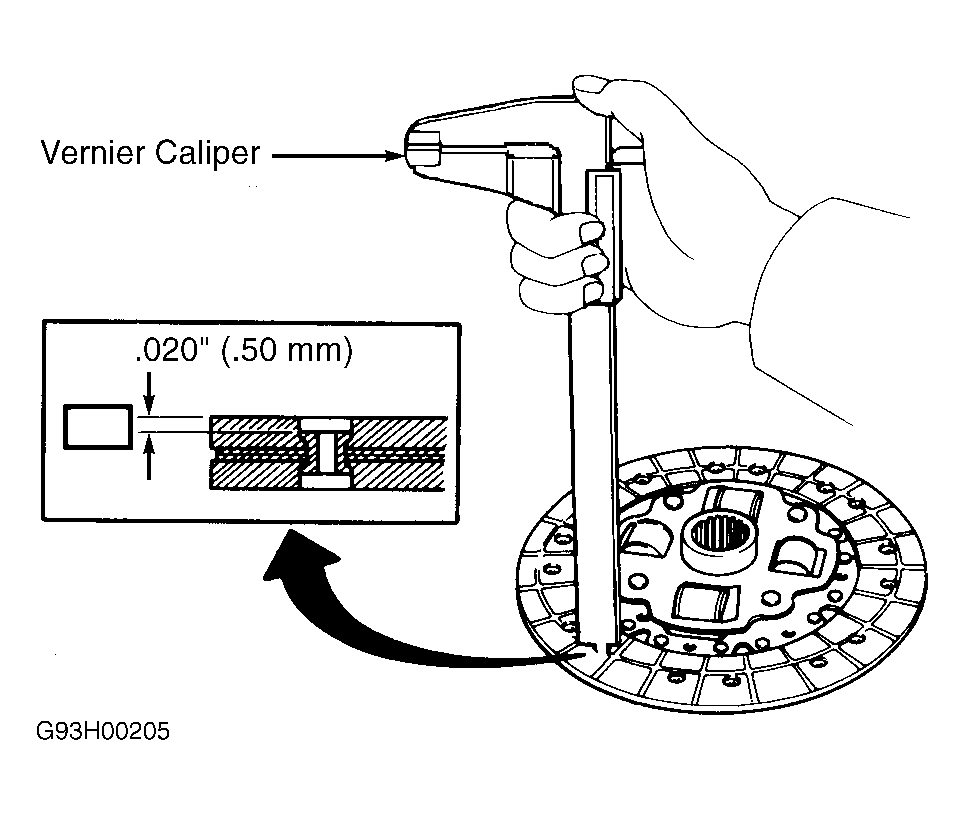

| Rivet Depth | ||
| Standard (New) | 0.06 (1.6) | |
| Service Limit | 0.02 (0.5) | |
