1995
>>
Tracker Base, 1.6 6, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests - SFI
>>
Circuit Resistance Charts
Circuit Resistance Charts

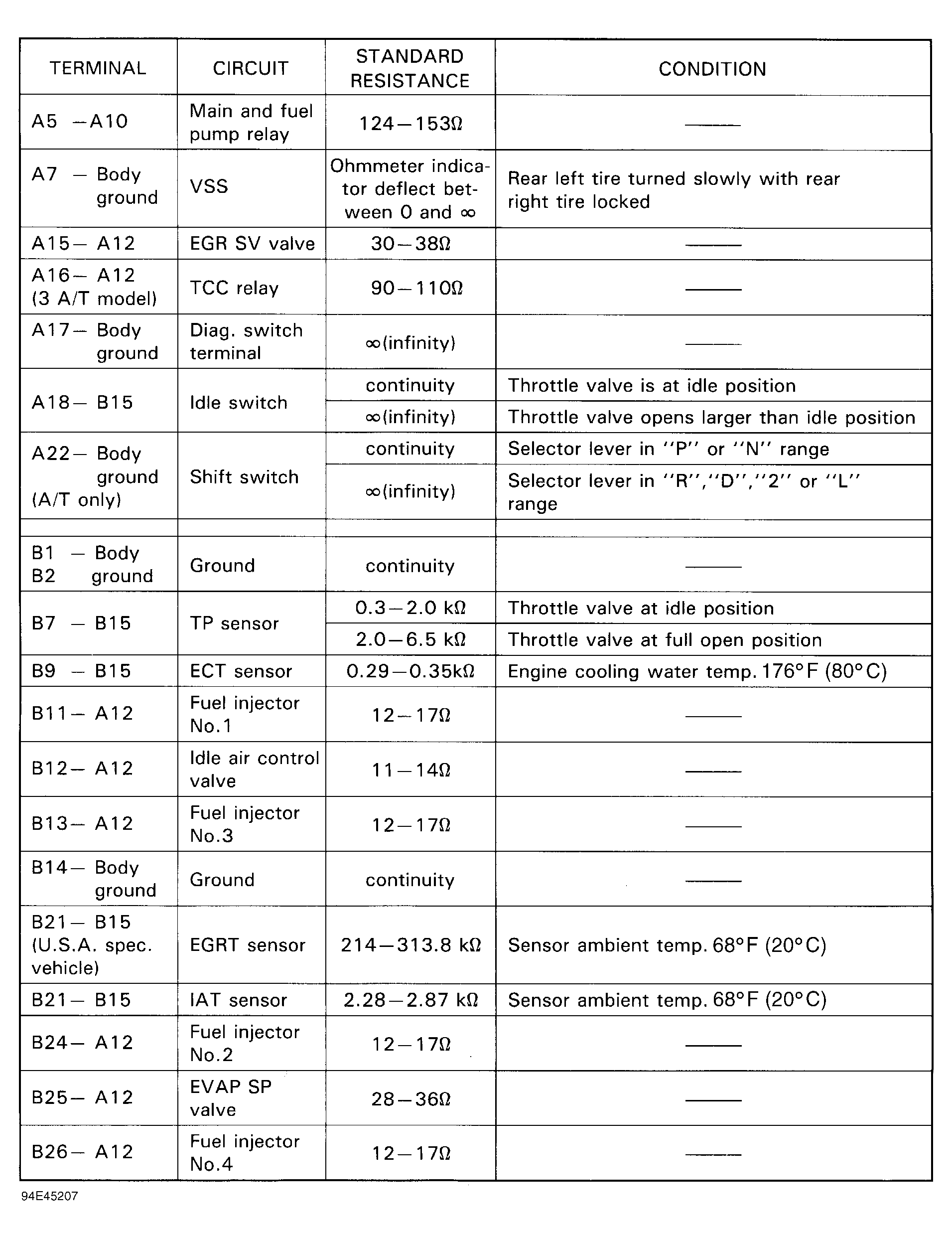

Fig 1: Circuit Resistance Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
