DTC 16, Pcm Control Signal Failure

PCM has detected a failure in communication circuitry between electronic engine and electronic transaxle controls. PCM will no longer allow transaxle to go into a Torque Converter Clutch (TCC) lock-up condition. Replace PCM if DTC 16 is set.

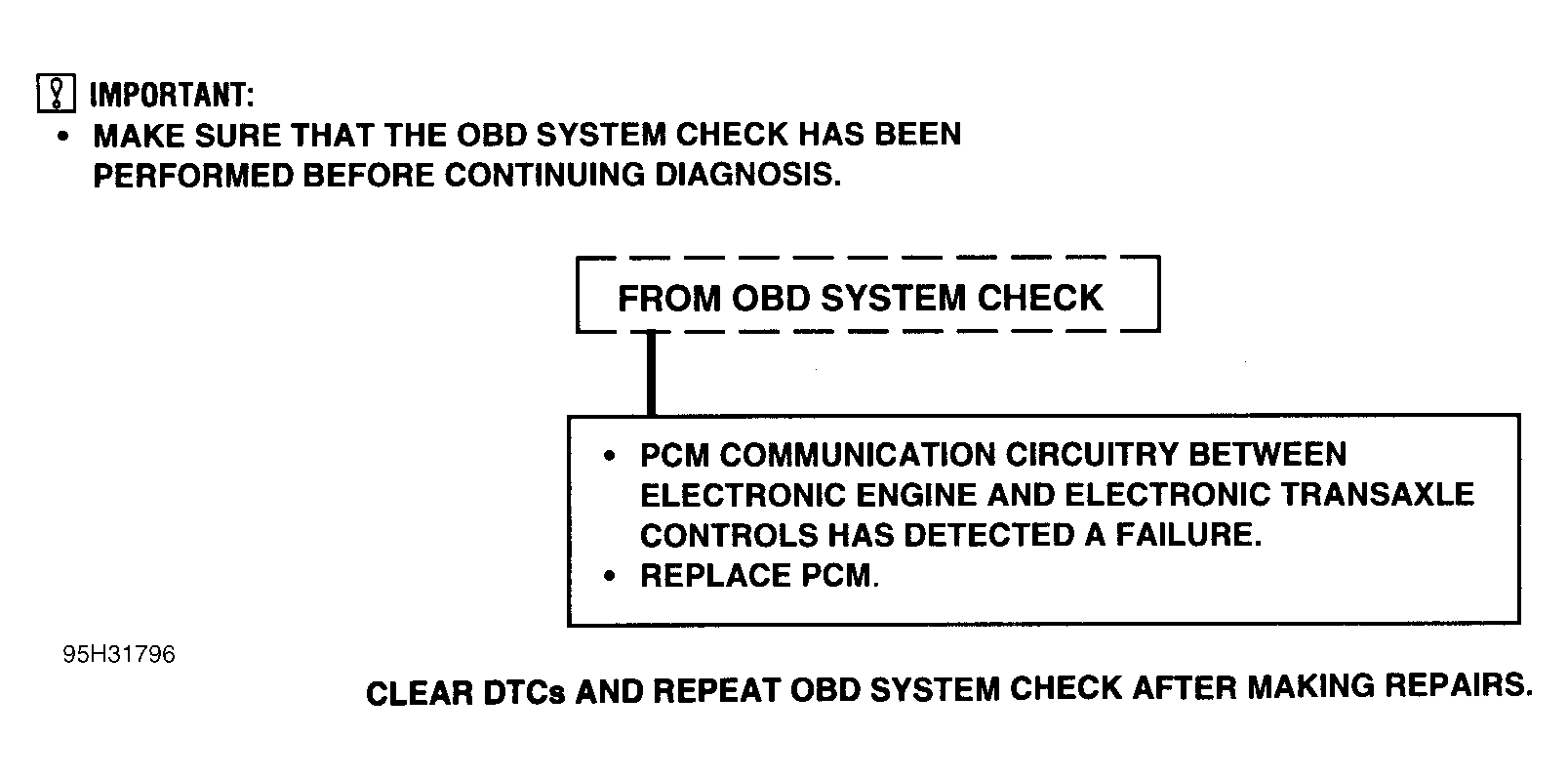

Fig 1: DTC 16 Diagnostic Flow Chart PCM Control Signal Failure
G95H31796
