SRS Coil: Installation

  1. Ensure front wheels are facing straight ahead. Center SRS coil by gently turning coil by hand counterclockwise until it reaches its stop. Turn coil 3 turns clockwise and align Red alignment marks. See Fig 1. SRS coil is now centered and ready to be installed.
  2. To complete installation, reverse removal procedure. Tighten bolts to specification. Activate SRS system. See the following:

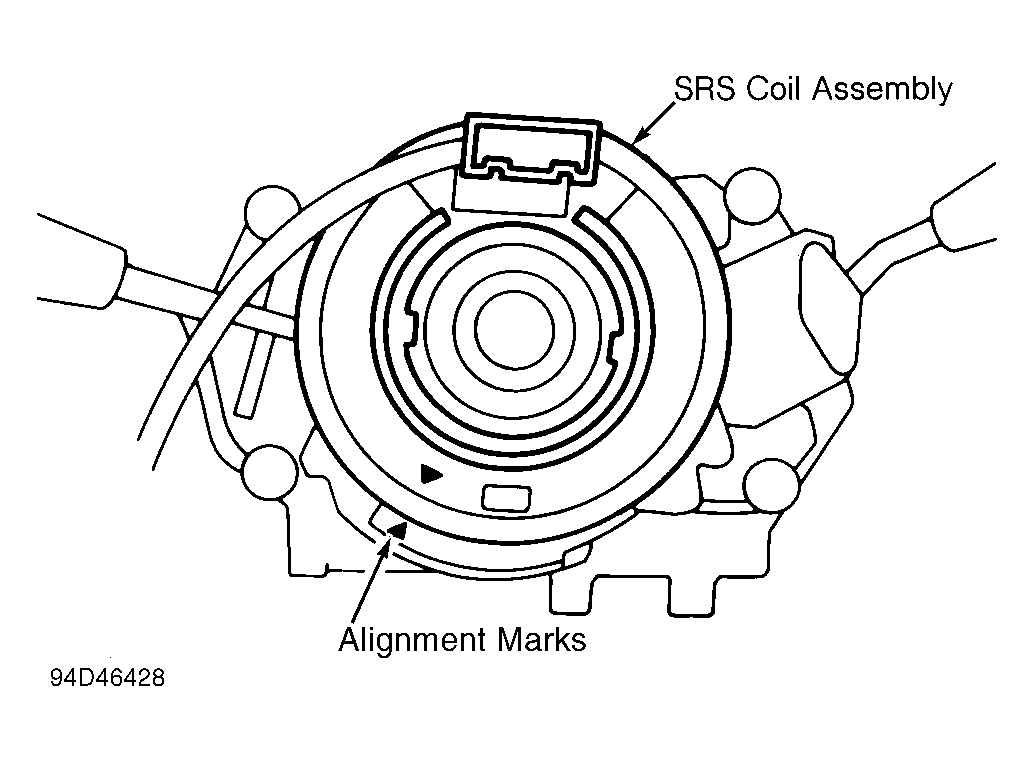

Fig 1: Centering SRS Coil
G94D46428Courtesy of GENERAL MOTORS CORP.
