Engine Compartment Fuse Panel Identification - 1993: Notes

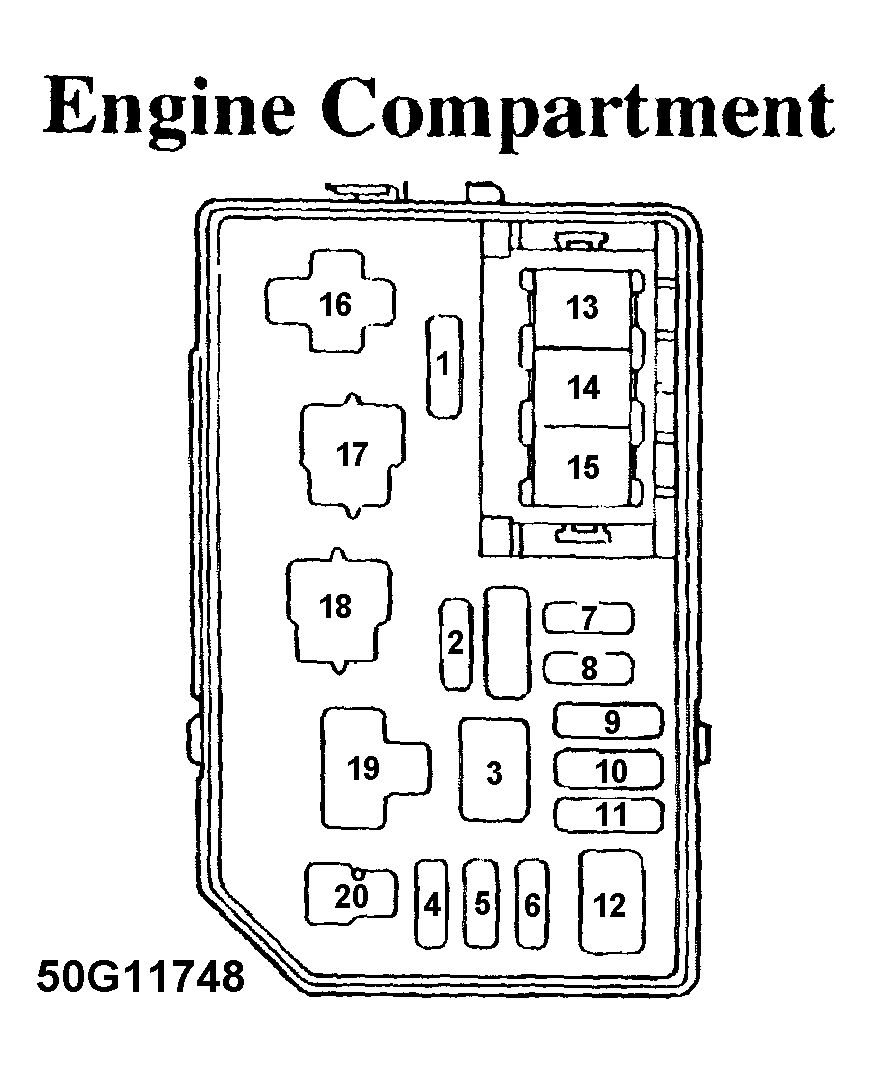

Fig 1: Identifying Engine Compartment Fuse Block - 1993

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

NOTE: A 30-Amp fuse in the engine compartment relay block controls the CDS system. The passenger side kick panel contains two fuses. The top fuse is a 15-Amp controlling the A/C system. The bottom fuse is a 40-Amp controlling the heater.
