TBI Federal

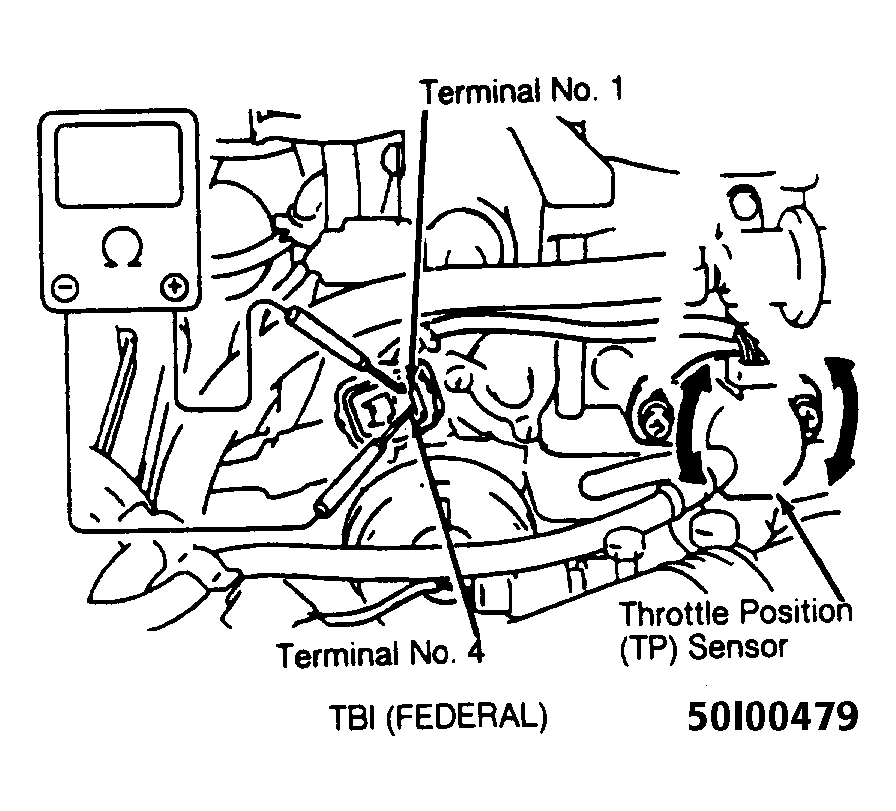

  1. Disconnect electrical connector from TP sensor. Loosen TP sensor retaining screws. Insert a .016" (.40 mm) feeler gauge between throttle lever and stop screw. See Figure . Disconnect throttle opener vacuum hose from throttle opener solenoid vacuum valve and apply 16-20 in. Hg vacuum to throttle opener. Connect ohmmeter between TP sensor terminals No. 1 and 4. See Figure and Figure .
  2. Rotate throttle position sensor fully clockwise, then slowly rotate counterclockwise until ohmmeter indicates 12-18 ohms. Hold TP sensor and tighten retaining screws to 31 INCH lbs. (3.5 N.m). Remove feeler gauge. Ohmmeter should still indicate continuity.
  3. Insert a .035" (.89 mm) feeler gauge between throttle lever and stop screw. Ohmmeter should indicate no continuity. Remove feeler gauge. Reconnect electrical connector, and reconnect throttle opener vacuum hose to throttle opener solenoid vacuum valve.
