Diagnostic Aids

Visually inspect wiring and connectors if intermittent problem exists.

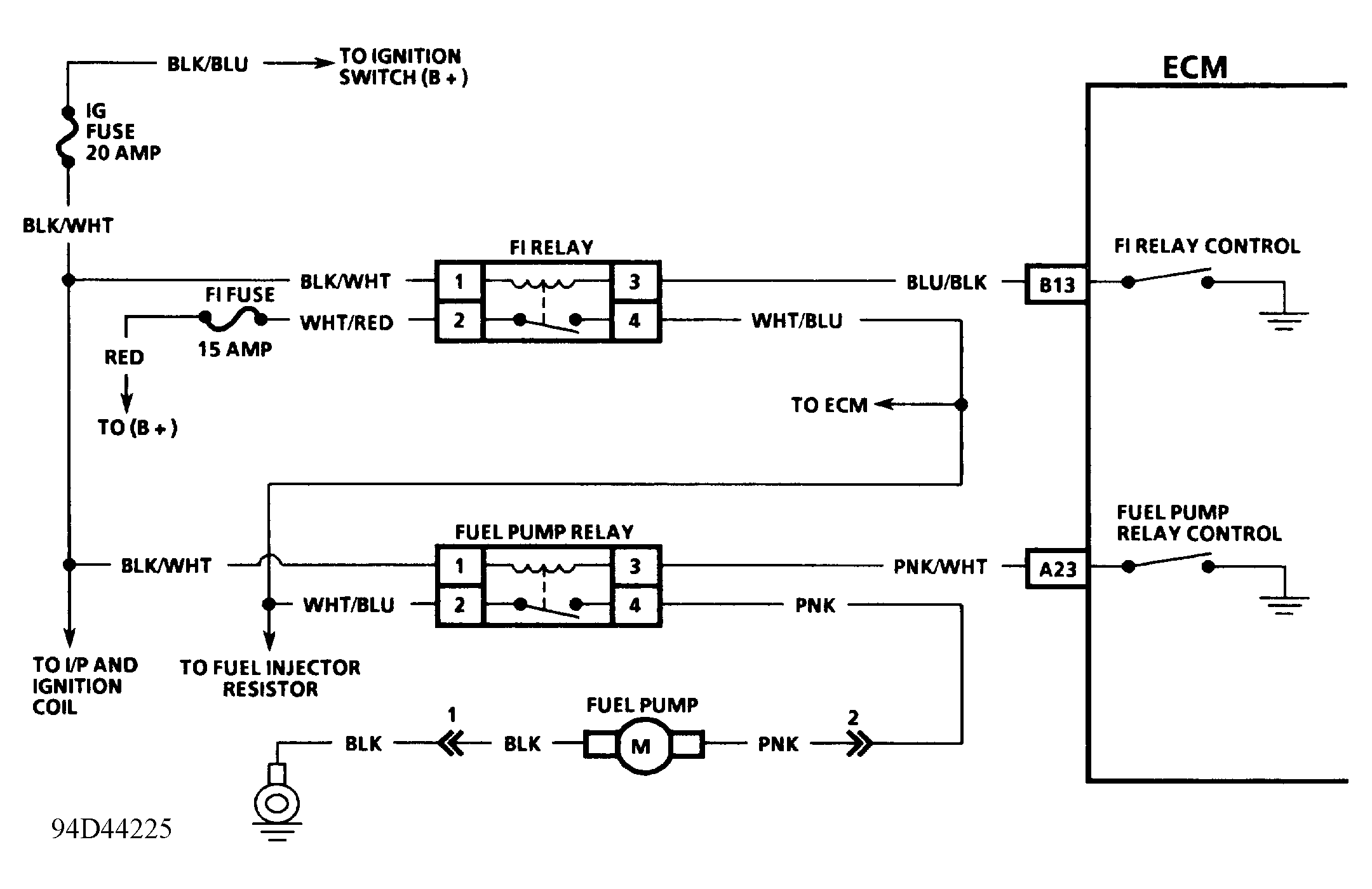

Fig 1: Chart A2-7A Schematic - Upgraded Emissions Fuel System Diagnosis - Fuel Pump Relay Check
G94D44225

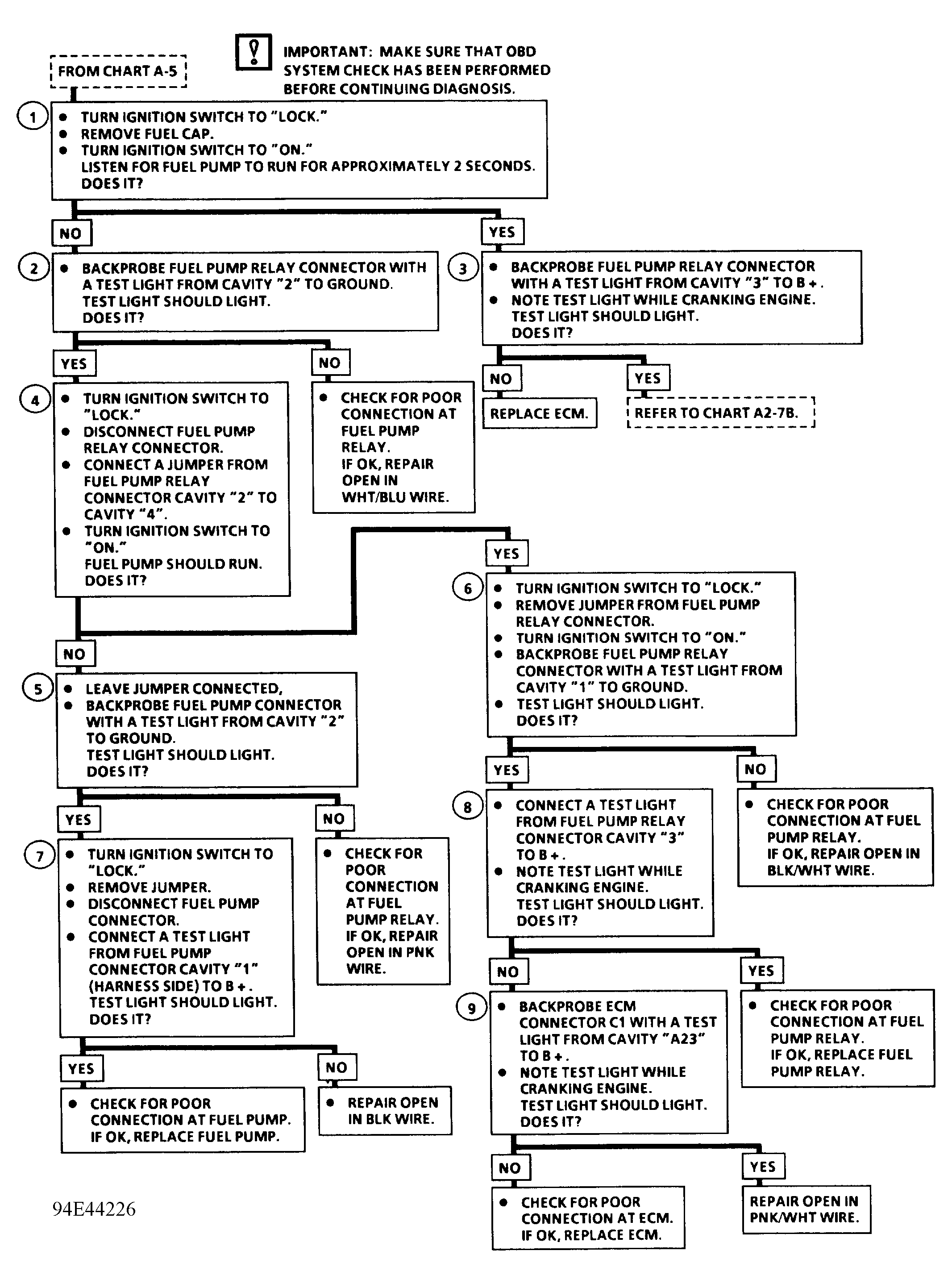

Fig 2: Chart A2-7A Flow Chart - Upgraded Emissions Fuel System Diagnosis - Fuel Pump Relay Check
G94E44226
