Injector (TBI): Removal

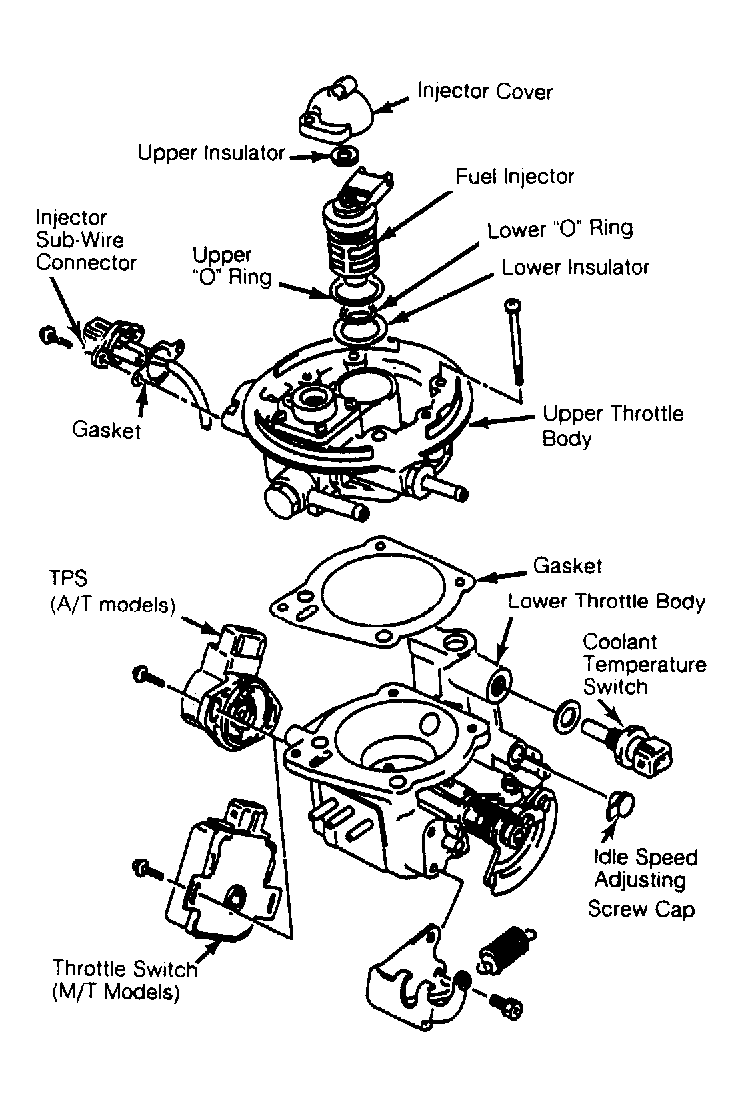

- Relieve fuel system pressure. See FUEL PRESSURE RELEASE . Disconnect negative battery cable. Remove air cleaner assembly and mounting bracket. Remove the injector cover and upper insulator. See Figure .

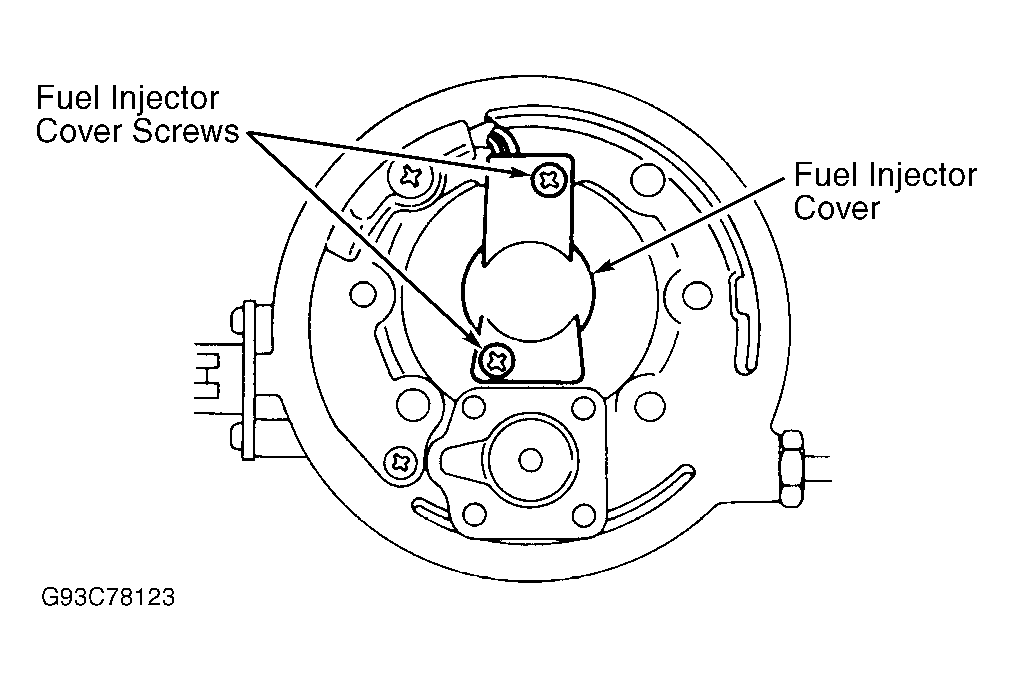

- Remove 2 screws and injector cover with electrical connector from TBI. See Fig 1 . Slide injector harness grommet from throttle body, and remove injector.
- If injector is difficult to remove, place shop towel over injector. Apply less than 70 psi (4.9 kg/cm2 ) of compressed air into fuel inlet port of throttle body to remove injector. DO NOT soak injector in any type of solvent or cleaner. Injector is NOT serviceable.
WARNING:
To prevent personal injury and damage to injector, DO NOT
use more than 70 psi (4.9 kg/cm2
) to remove injector.
