Diagnostic Aids

A poor ground connection could cause Code 53 to set. Ensure ground connection is clean and tight.

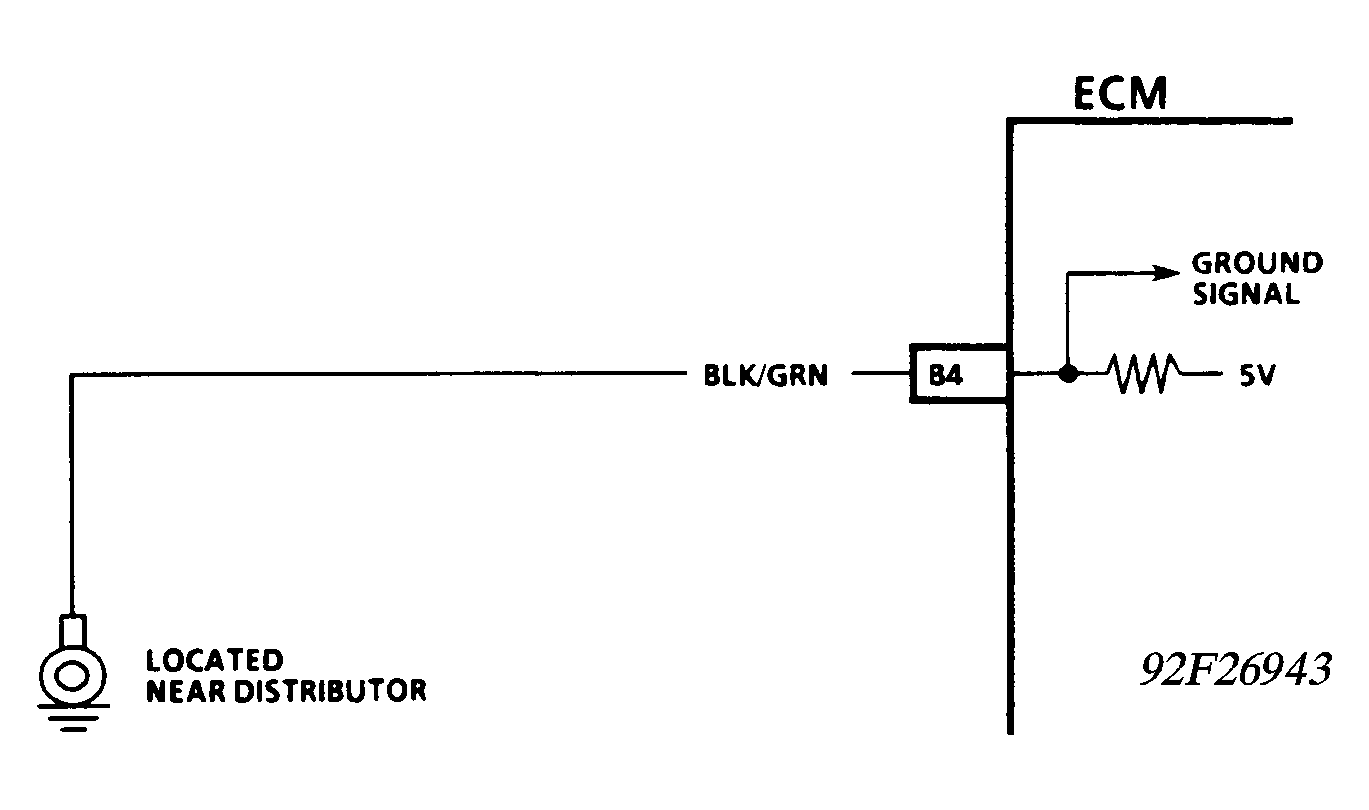

Fig 1: Code 53 - Schematic Ground Circuit, Circuit Open

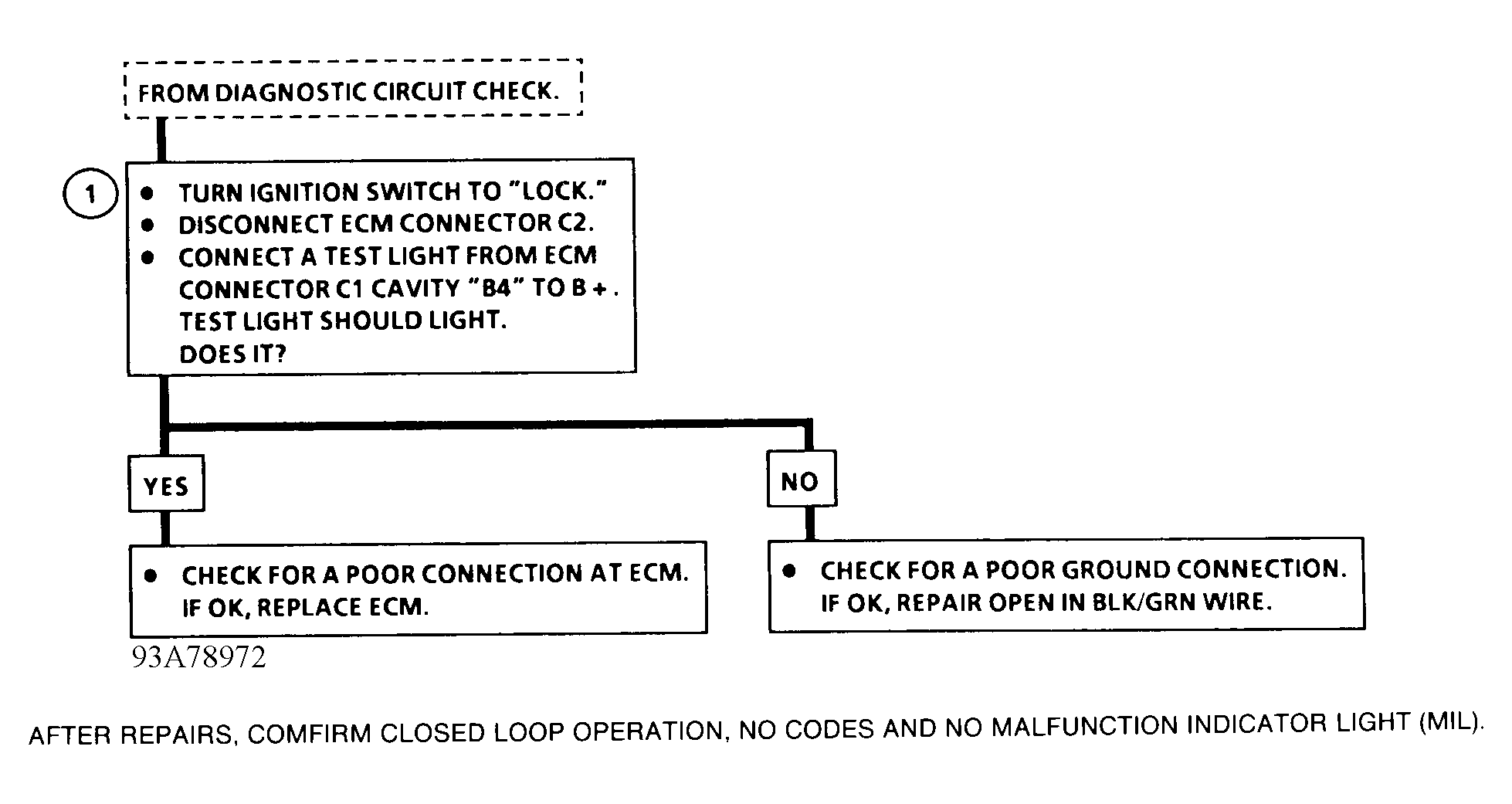

Fig 2: Code 53 - Flow Chart Ground Circuit, Circuit Open
