Diagnostic Aids

If speedometer cable is binding, Code 24 can be set. Ensure that speedometer cable is free from restrictions and has a secure connection to instrument cluster. If problem is intermittent, refer to TESTS W/O CODES article in this section.

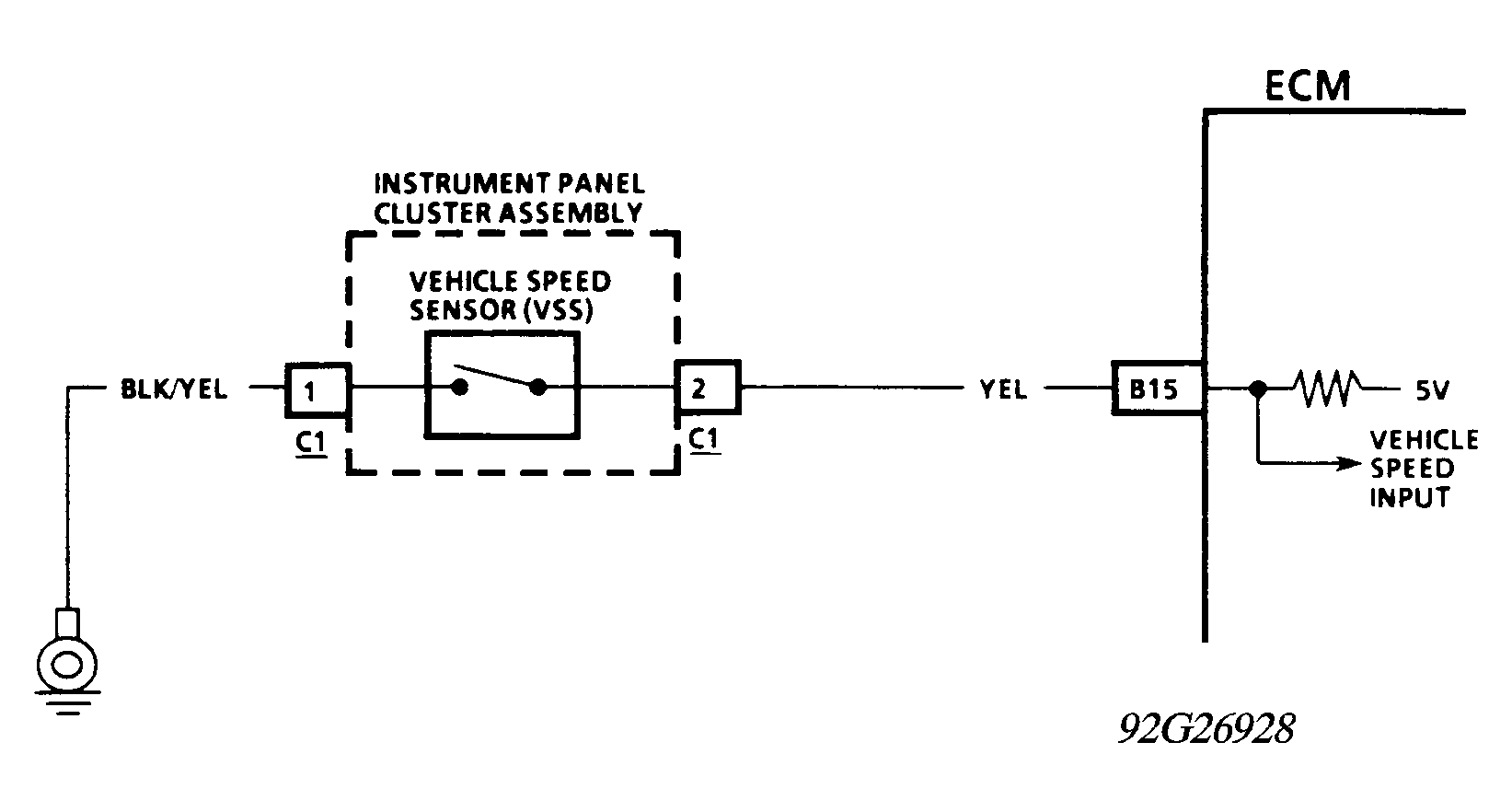

Fig 1: Code 24 - Schematic Vehicle Speed Sensor Circuit
G92G26928

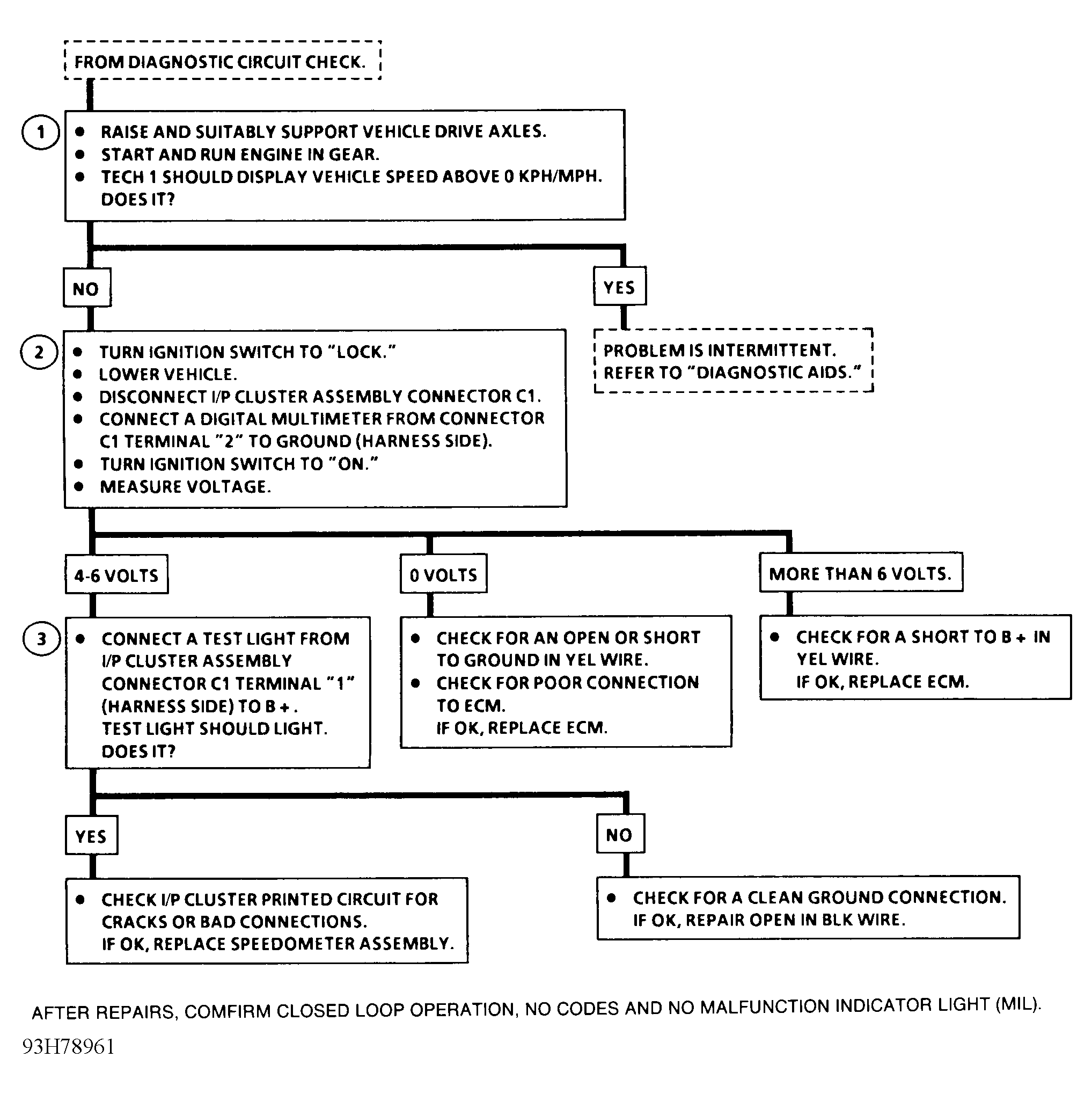

Fig 2: Code 24 - Flow Chart Vehicle Speed Sensor Circuit
G93H78961
