Diagnostic Aids

Normal heated O2 sensor voltage is .1-.9 volt (varying) in closed loop operation.

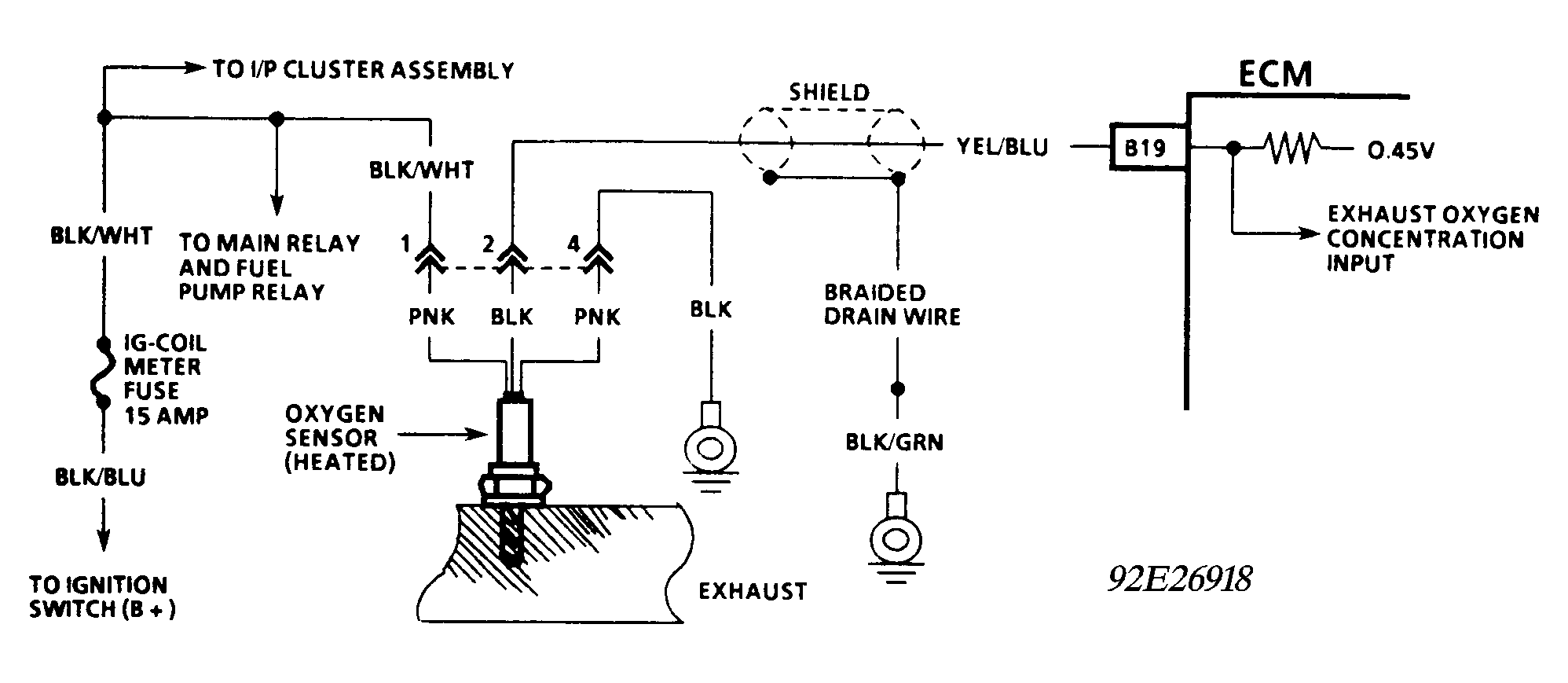

Fig 1: Code 13 - Schematic Heated Oxygen Sensor Circuit
G92E26918

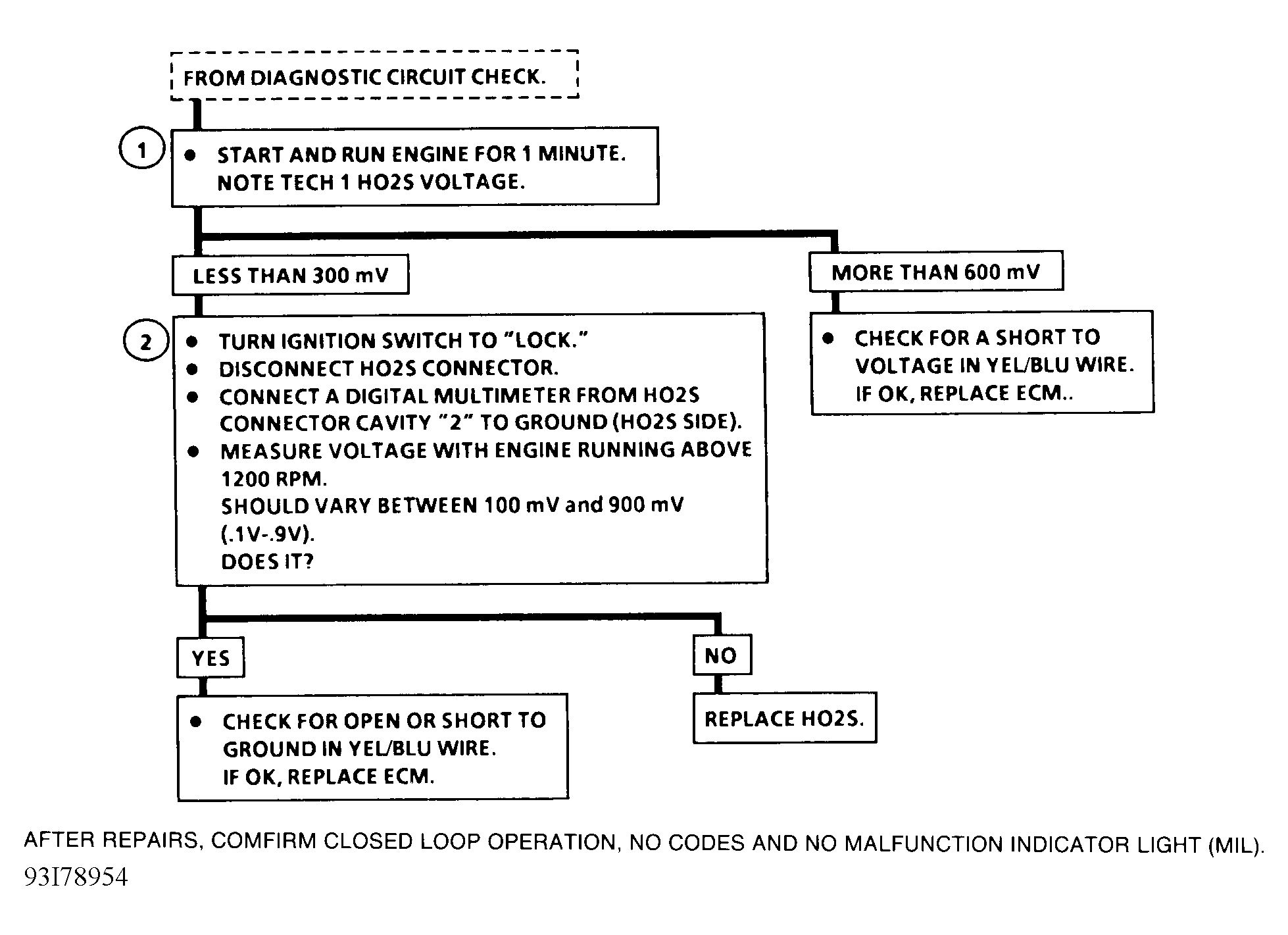

Fig 2: Code 13 - Flow Chart Heated Oxygen Sensor Circuit
G93I78954
