Diagnostic Aids

Fuel spray may be present at injector, but may not be enough to start engine. If both fuel injector and related circuits are okay, check for a partially blocked injector nozzle.

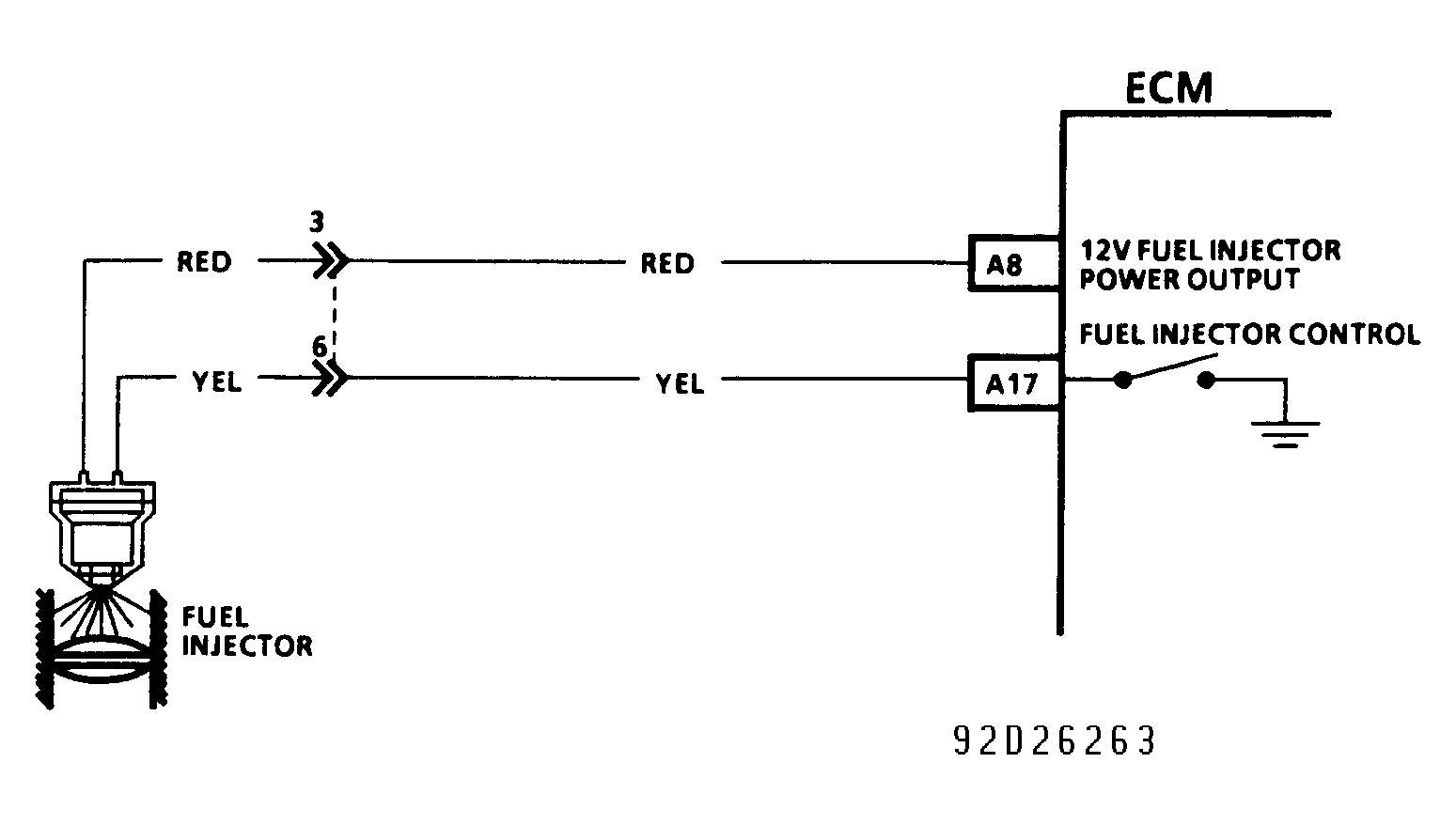

Fig 1: Chart A-5 Schematic - No-Start Condition - Fuel Injector Circuit Check

Courtesy of GENERAL MOTORS CORP.

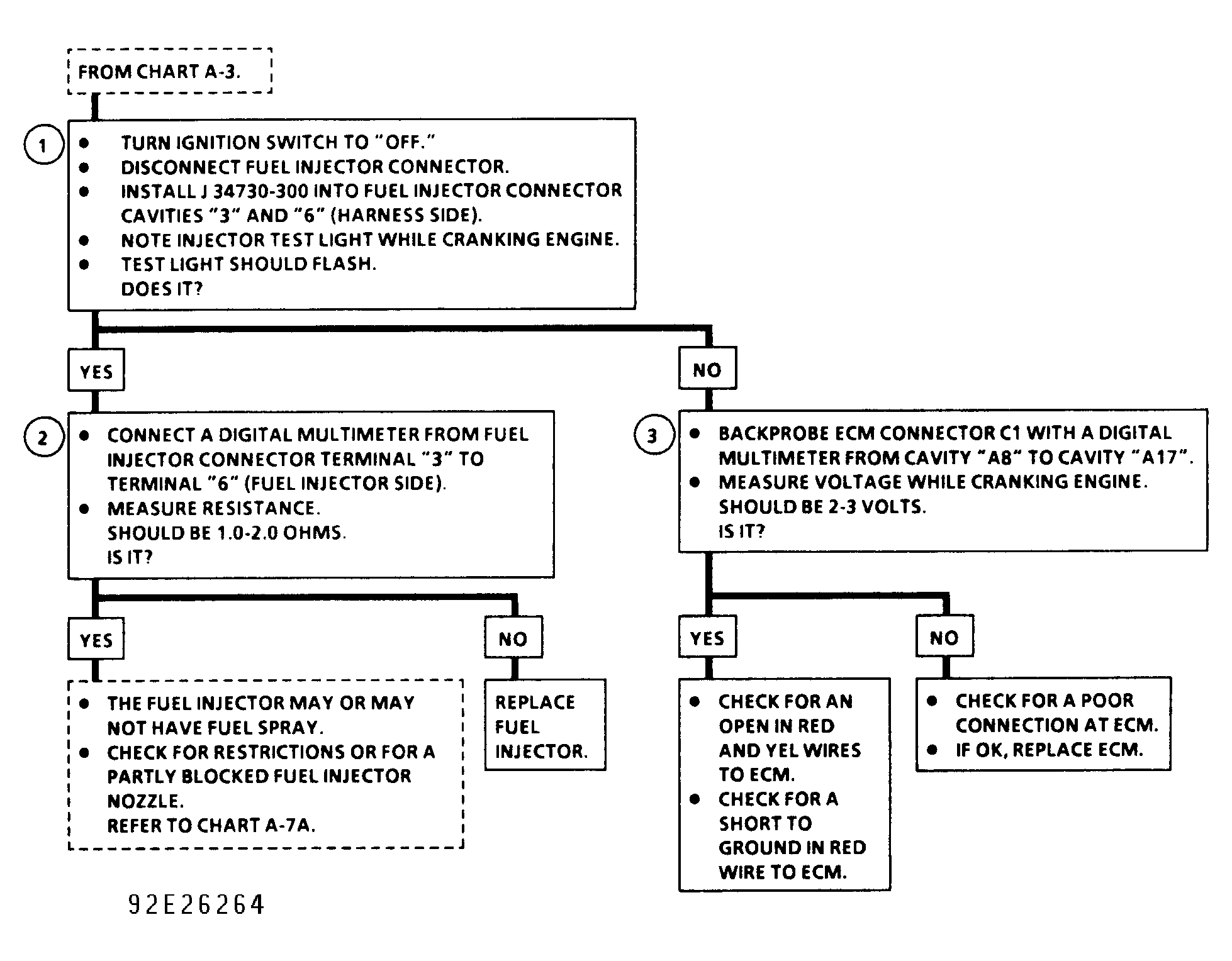

Fig 2: Chart A-5 Flow Chart - No-Start Condition - Fuel Injector Circuit Check

Courtesy of GENERAL MOTORS CORP.
