Wipers Inoperative; Switch In LO Position

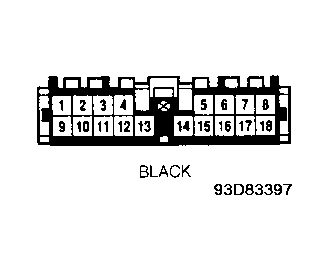

  1. Turn ignition on. Using a test light, probe Blue wire between junction block connector C5 (located behind left kick panel)and wiper motor. See Figure . If test light comes on, replace wiper motor. If test light does not come on, repair open if Blue wire.

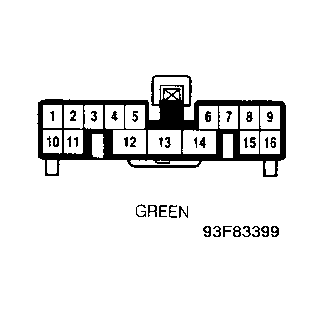

  2. Probe Blue wire between junction block connector C4 and wiper/washer switch. See Figure . If test light comes on, replace wiper/washer switch. If test light does not come on, repair open in Blue wire.
