Gearshift Cable

Place shift lever in Neutral position. Turn fore and aft adjustment nuts until shift lever is straight up and down (right angle to pivot case as viewed from side). Turn lateral adjustment nuts until shift lever is straight up and down (right angle to pivot case as viewed from rear). See Fig 1 .

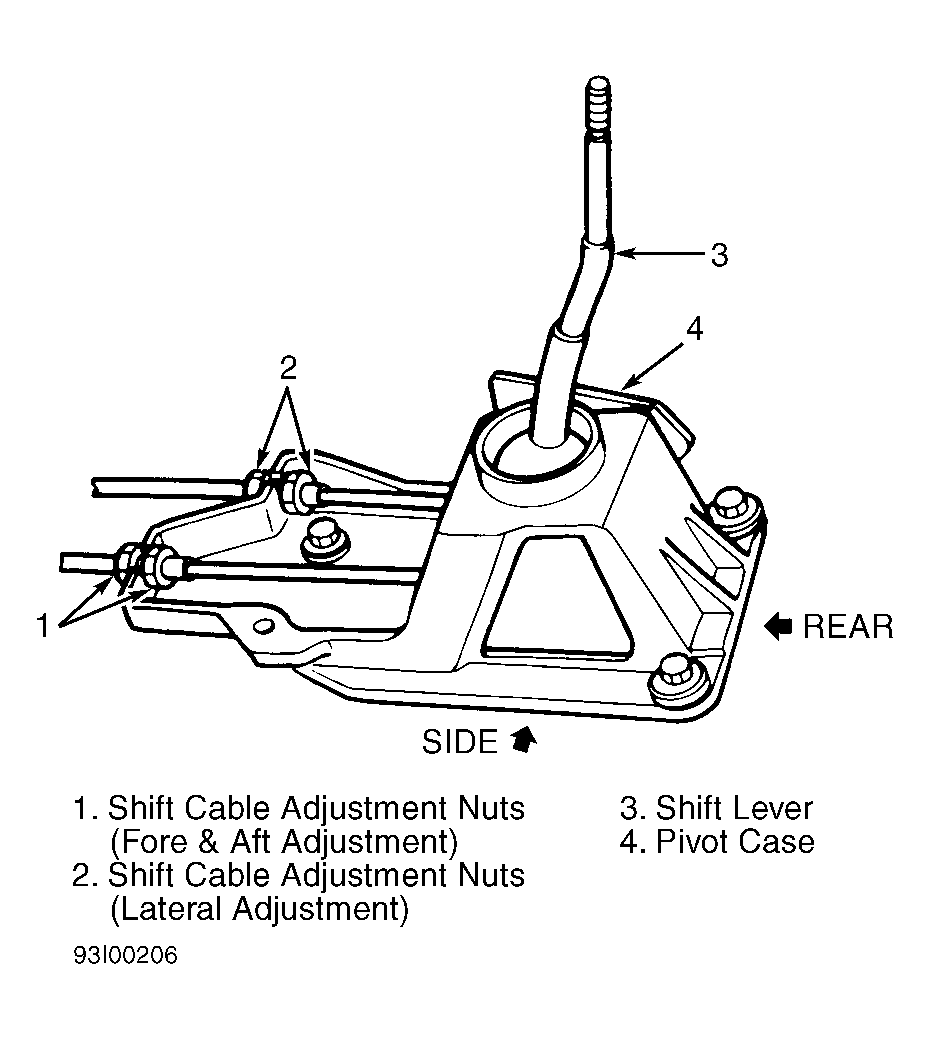

Fig 1: Adjusting Shift Cable
G93I00206Courtesy of GENERAL MOTORS CORP.
