Alternator & Regulator: Overhaul

NOTE: Storm (VIN 6) alternator is not serviceable. For Storm GSi (VIN 8) alternator overhaul, see exploded view. See Fig 1 .

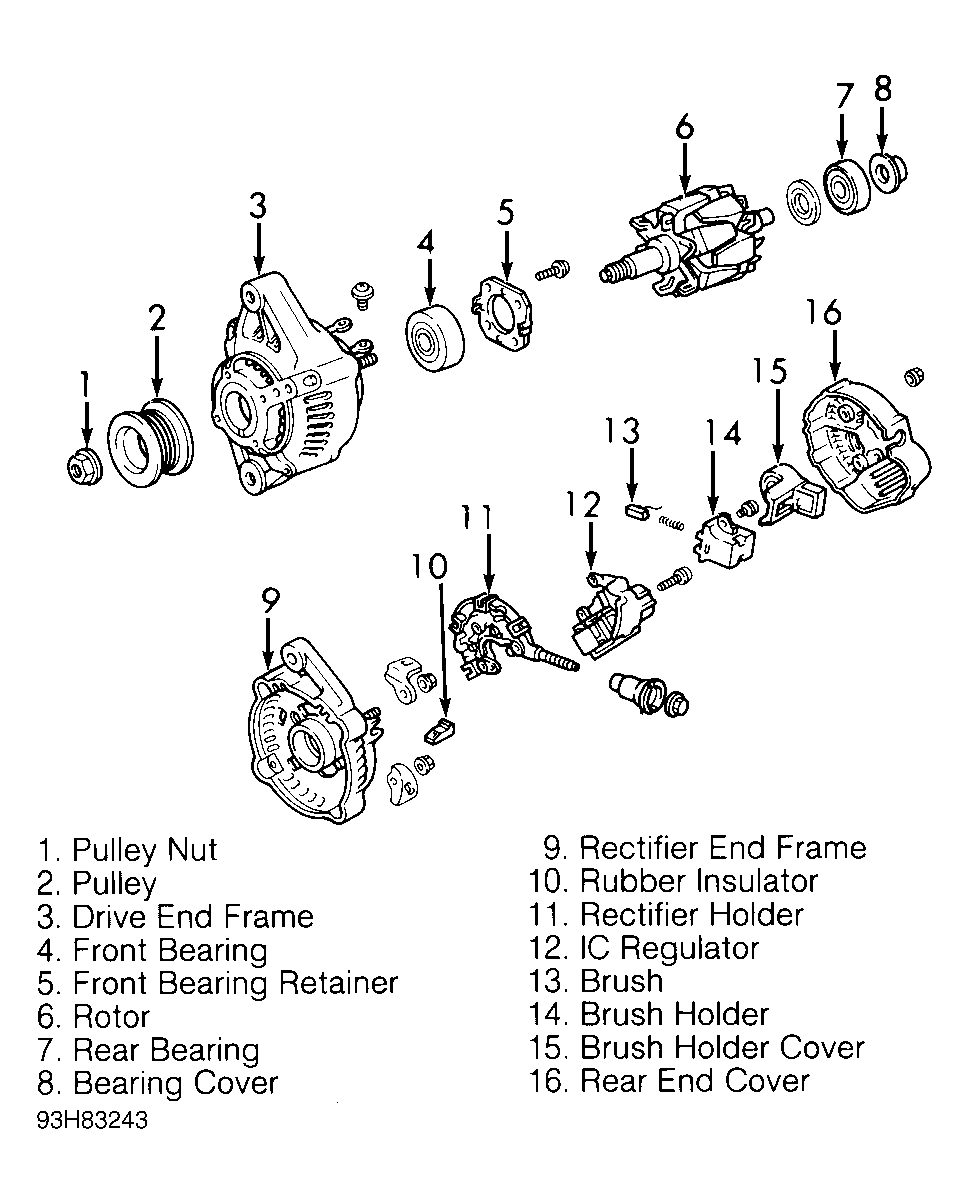

Fig 1: Exploded View Of Storm GSi Alternator
G93H83243Courtesy of GENERAL MOTORS CORP.
