Wiring Diagrams

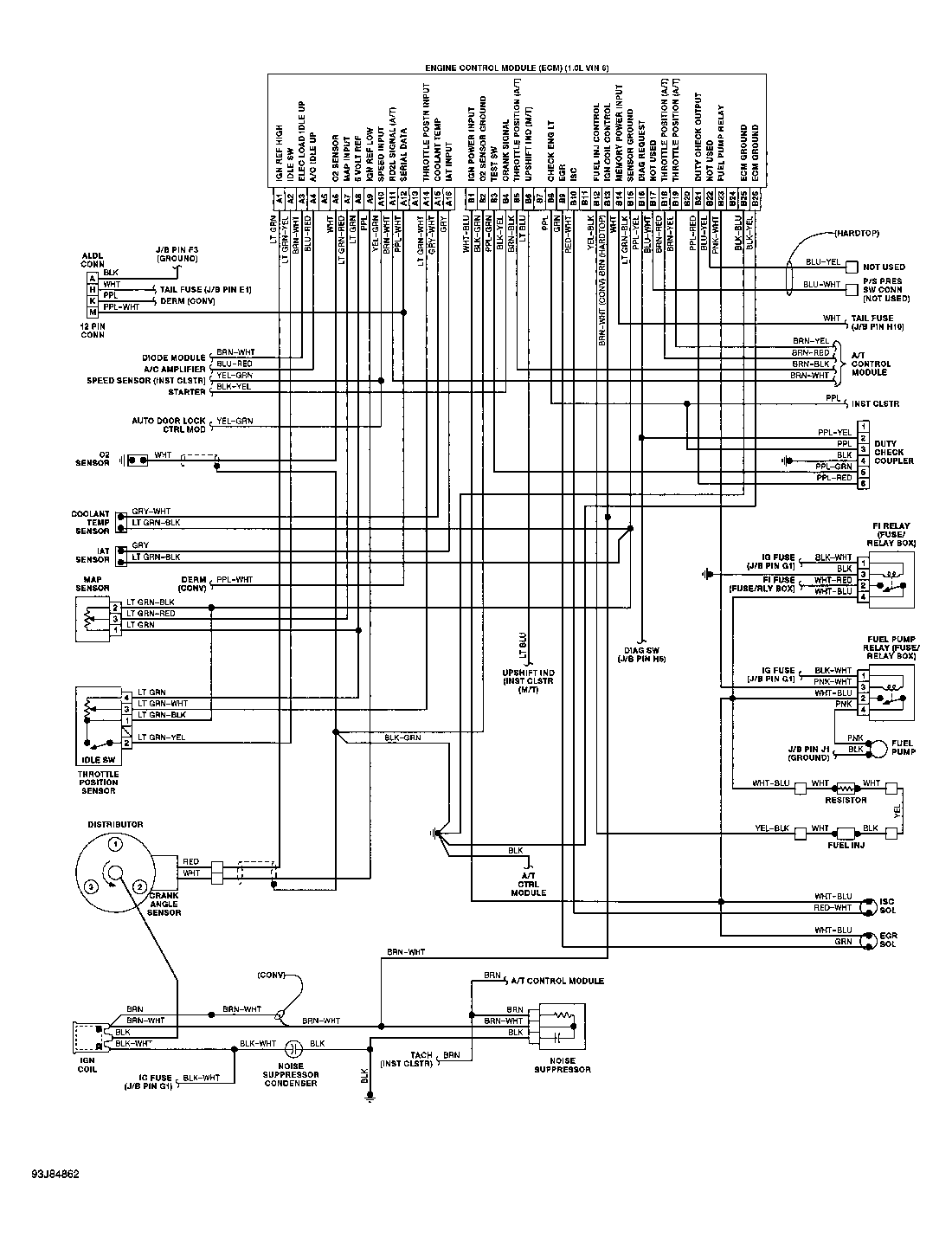

Fig 1: Wiring Diagram (Metro 1.0L)

G93J84862

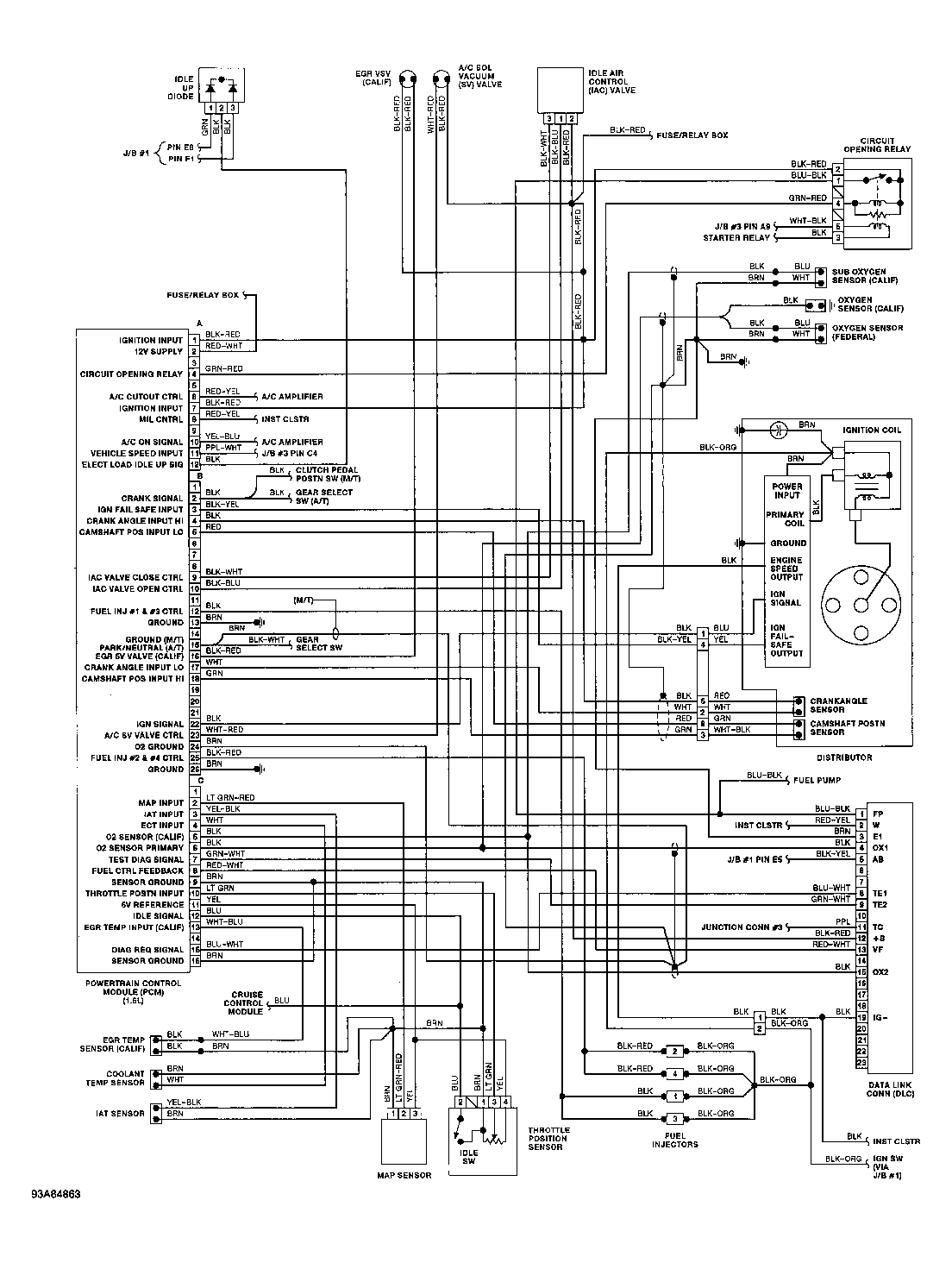

Fig 2: Wiring Diagram (Prizm 1.6L)

G93A84863

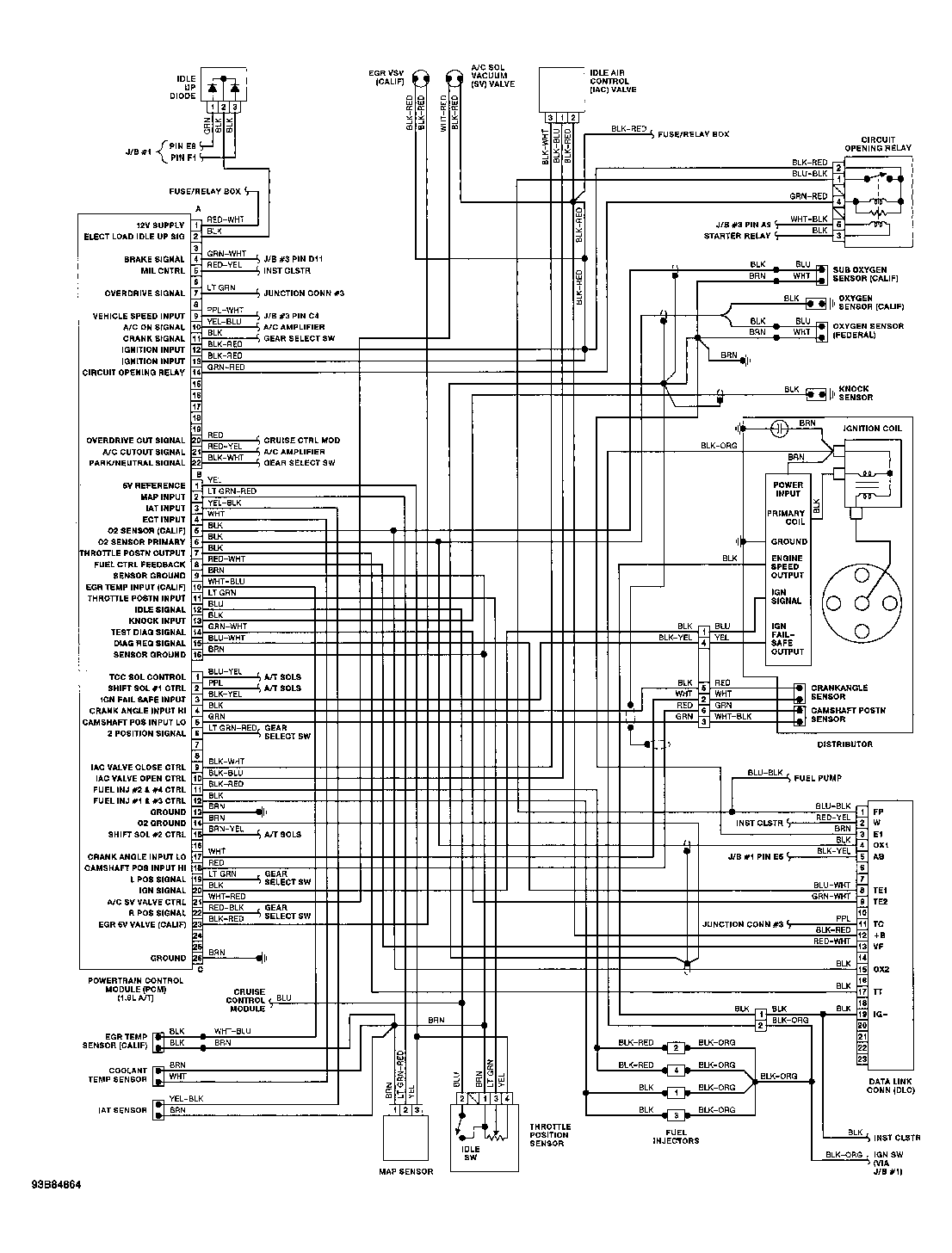

Fig 3: Wiring Diagram (Prizm 1.8L - A/T)

G93B84864

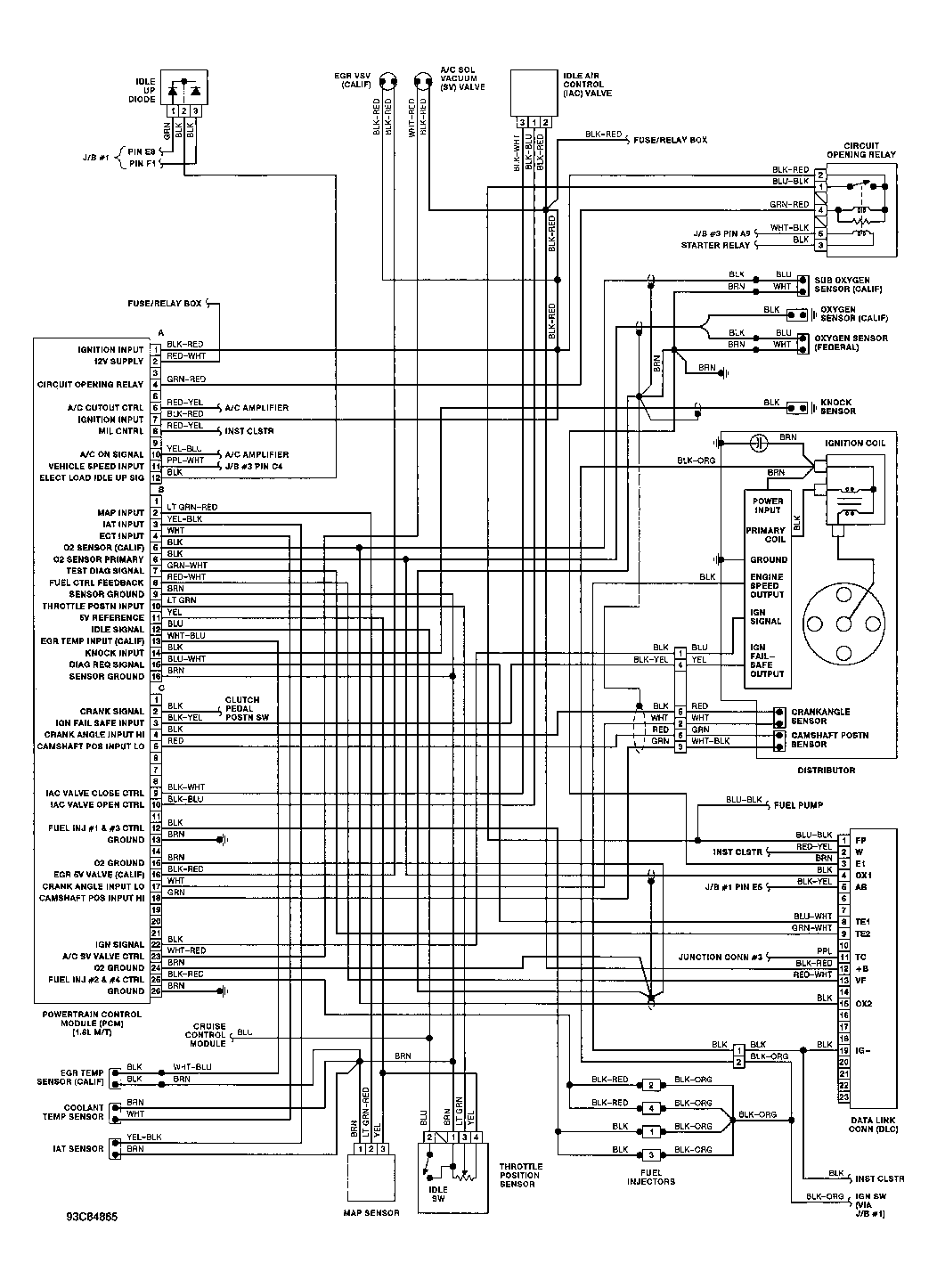

Fig 4: Wiring Diagram (Prizm 1.8L - M/T)

G93C84865

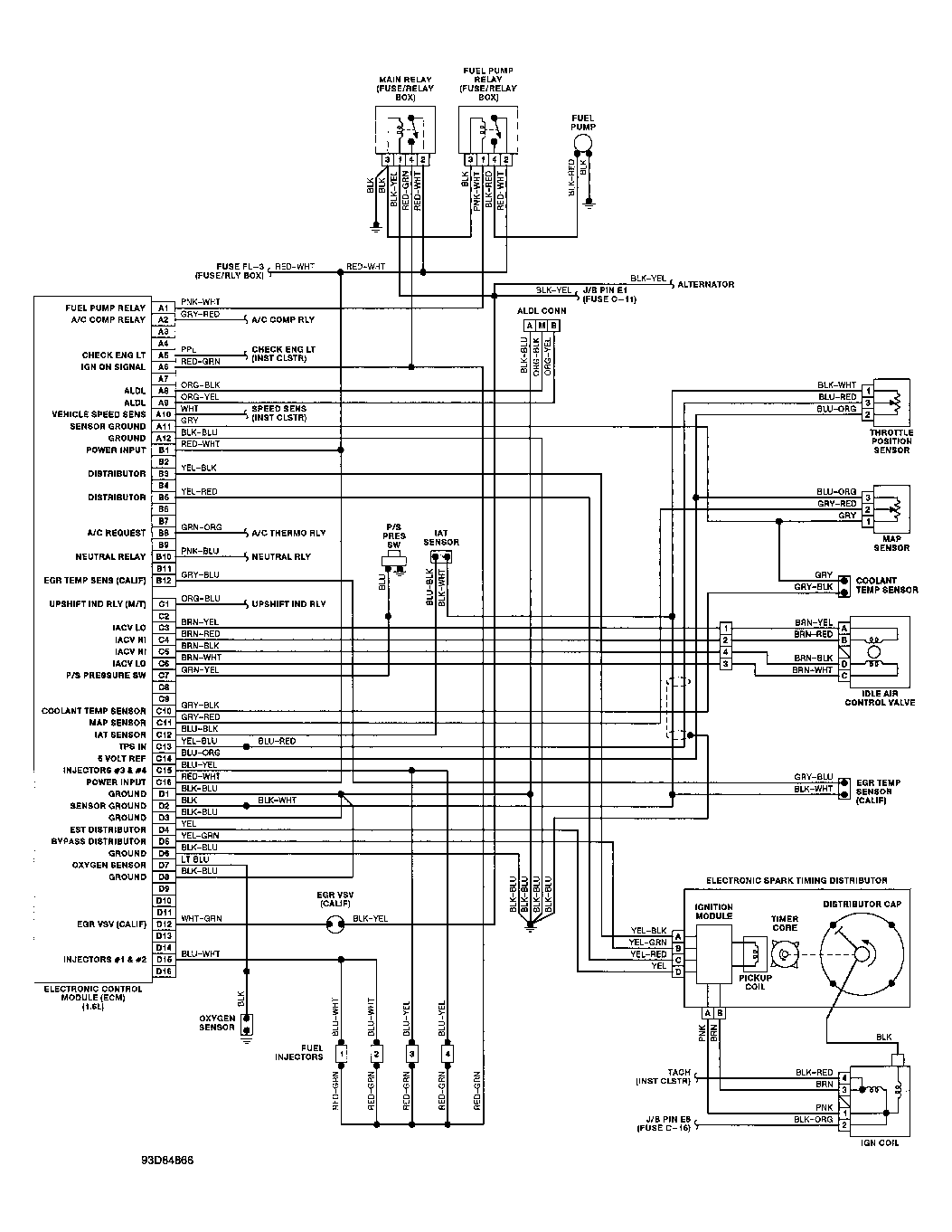

Fig 5: Wiring Diagram (Storm 1.6L)

G93D84866

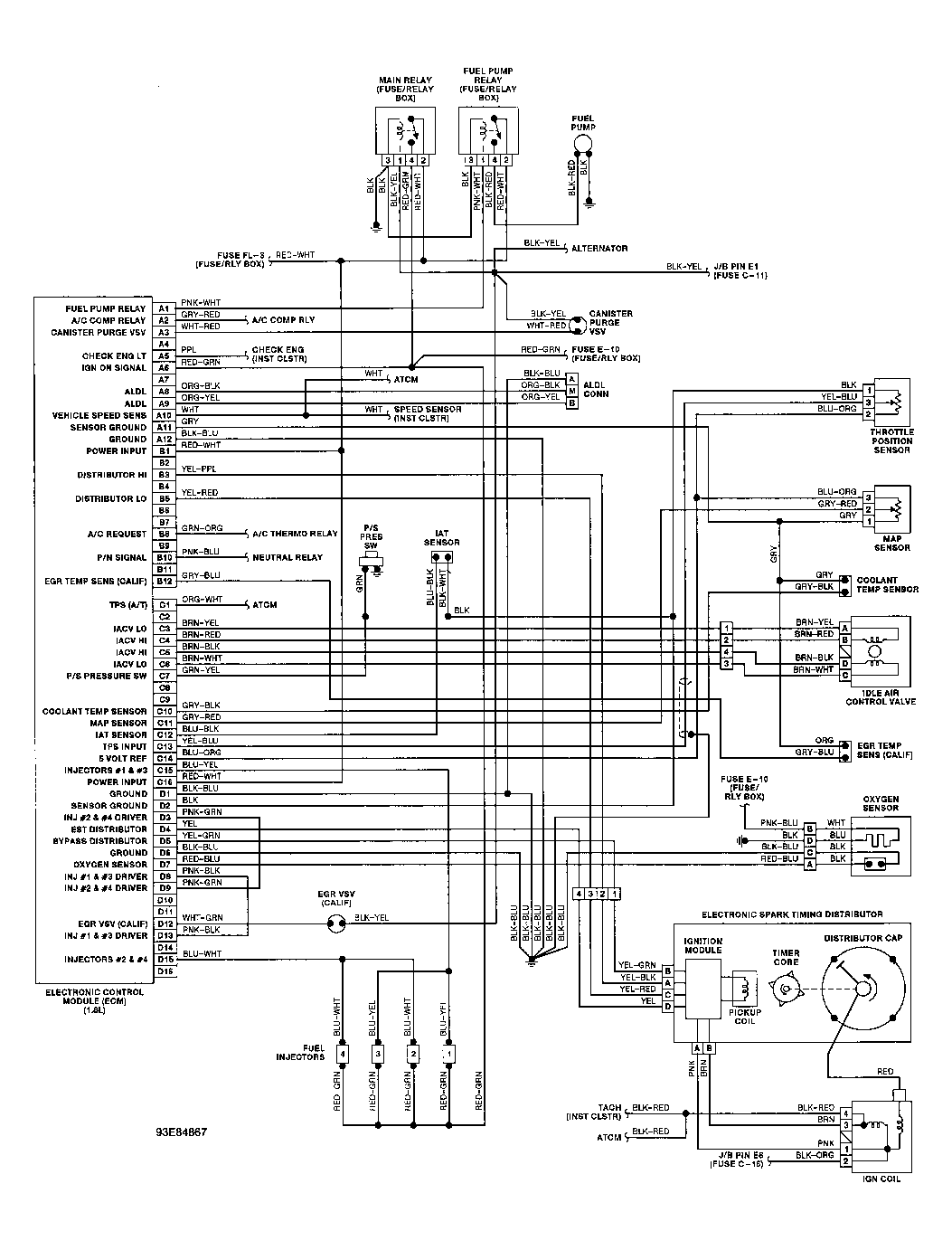

Fig 6: Wiring Diagram (Storm 1.8L)

G93E84867

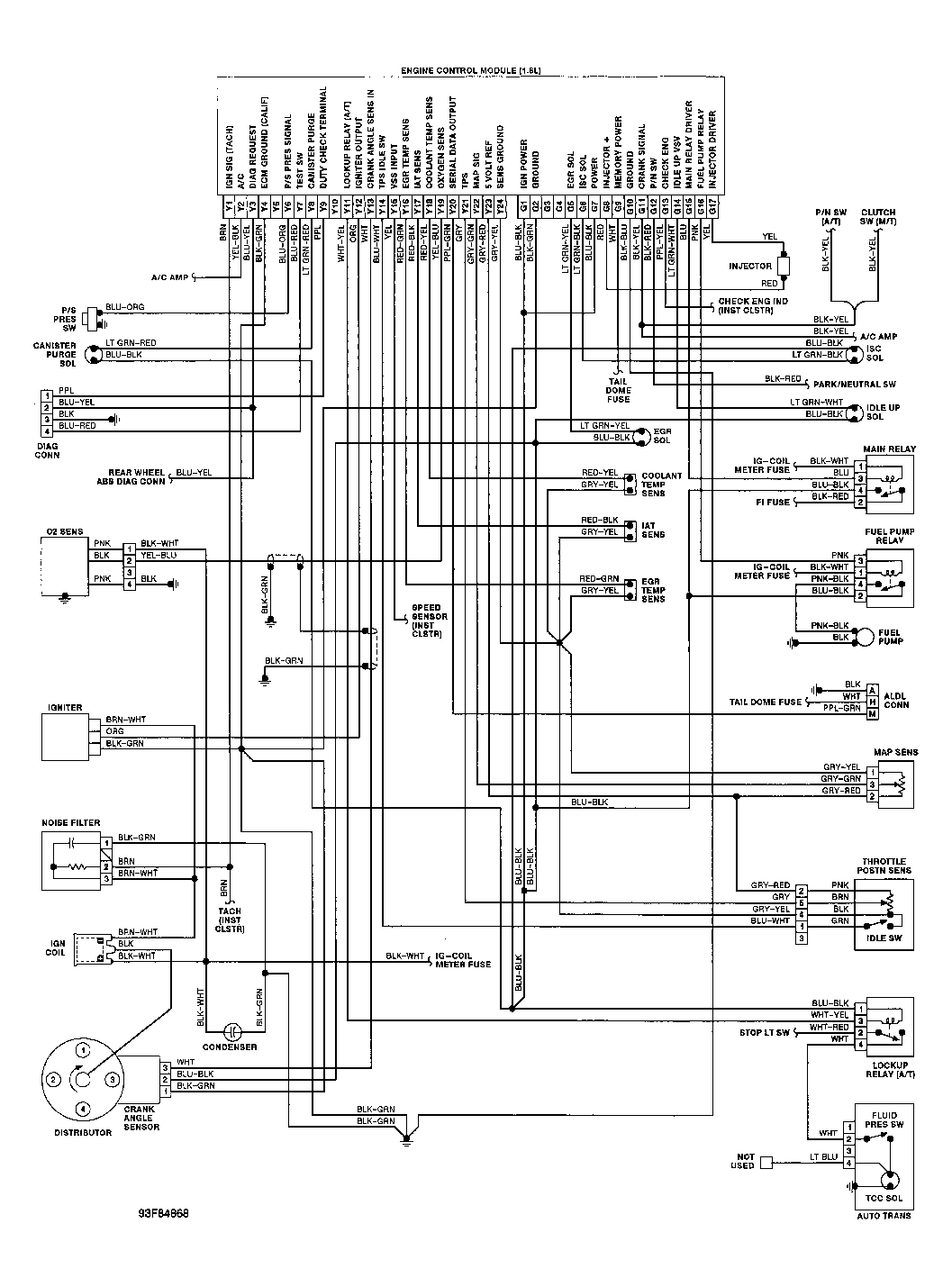

Fig 7: Wiring Diagram (Tracker 1.6L)

G93F84868
