Sir Coil: Installation

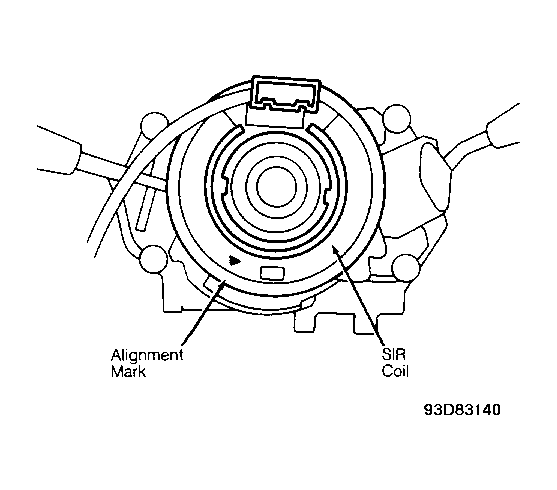

- Ensure front wheels are facing straight ahead. Center SIR coil by turning coil by hand counterclockwise until it reaches its stop. Turn coil 3 turns clockwise and align Red alignment marks. See Fig 1 . SIR coil is now centered and ready to be installed.
- To complete installation, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS TABLE . Activate SIR system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
