Diagnostic Aids

Check ECU-IG fuse, STOP fuse and ECU-B fuse.

An intermittent condition may be caused by rubbed-through insulation, or a wire broken inside insulation. Check harness connectors for backed-out or damaged terminals, improper mating or broken connector lock, before replacing component.

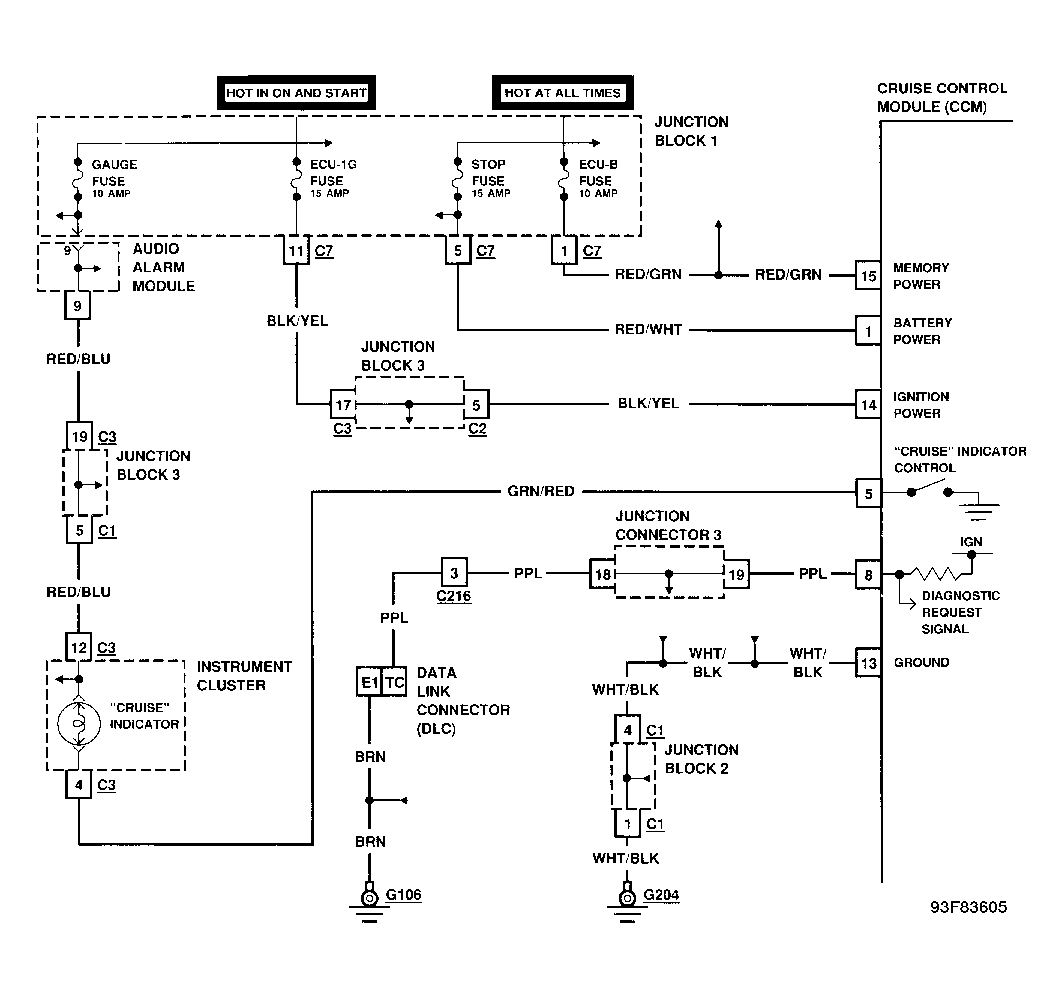

Fig 1: On-Board Diagnostic System Check Schematic

Courtesy of GENERAL MOTORS CORP.

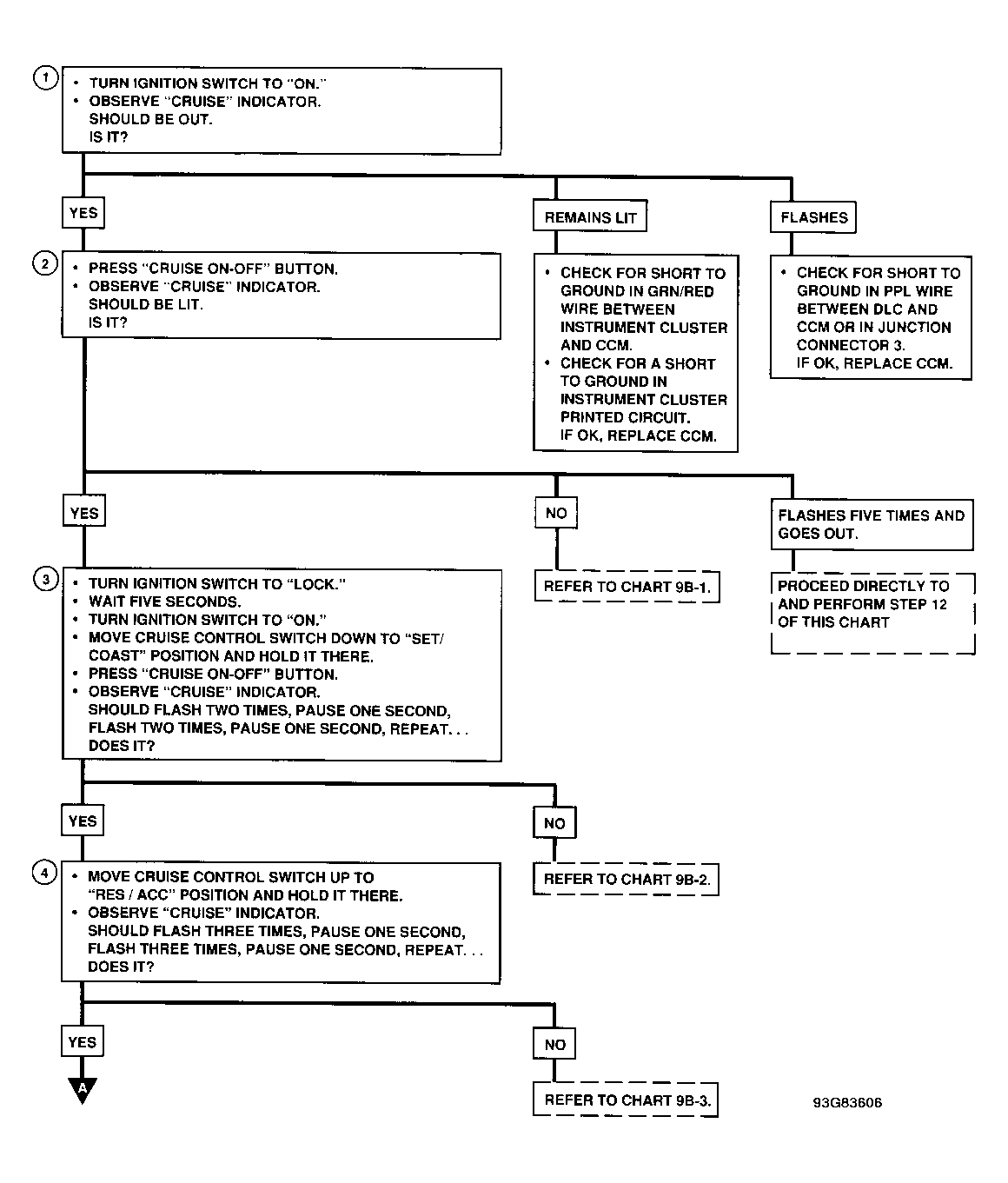

Fig 2: On-Board Diagnostic System Check Flow Chart (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

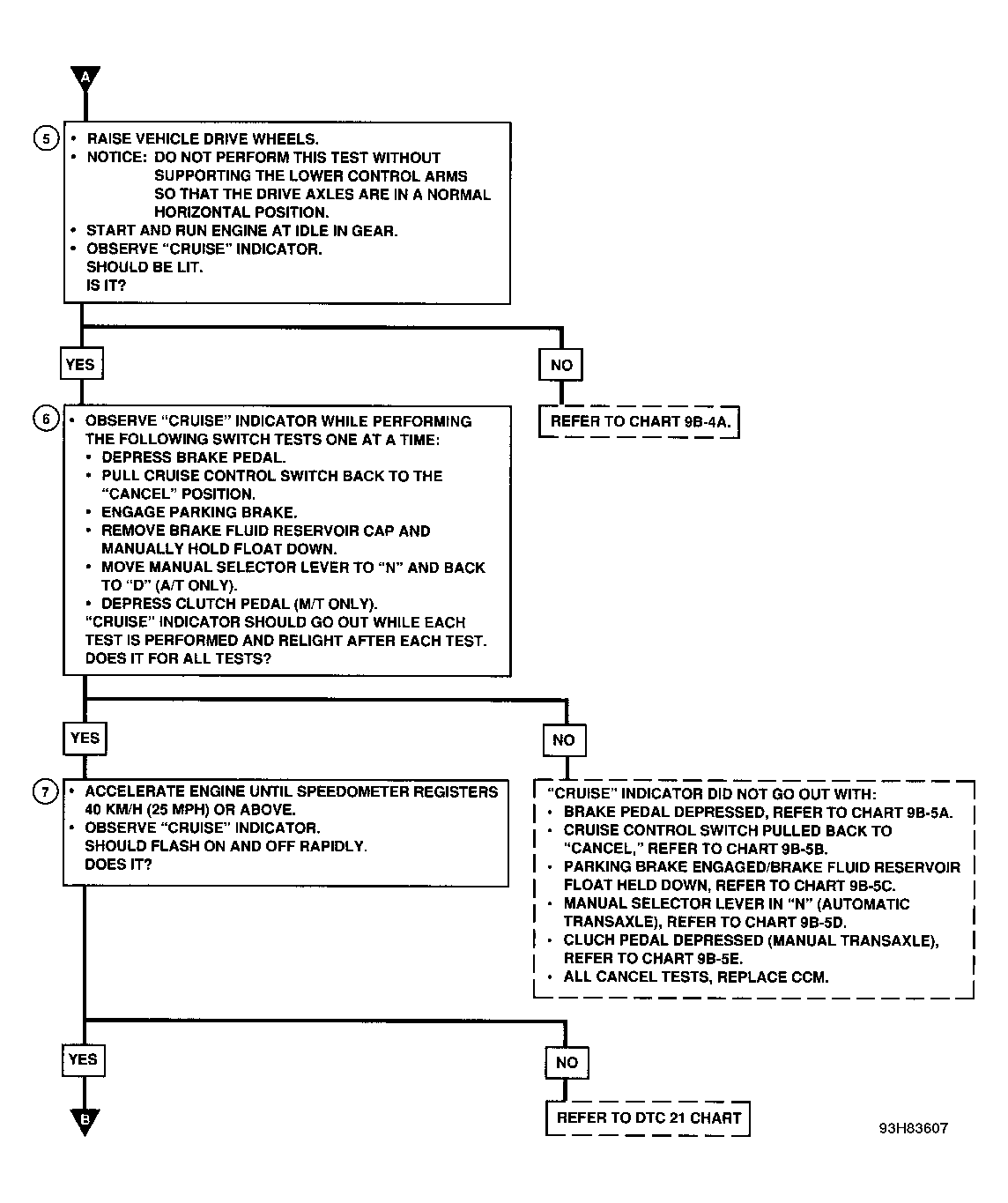

Fig 3: On-Board Diagnostic System Check Flow Chart (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

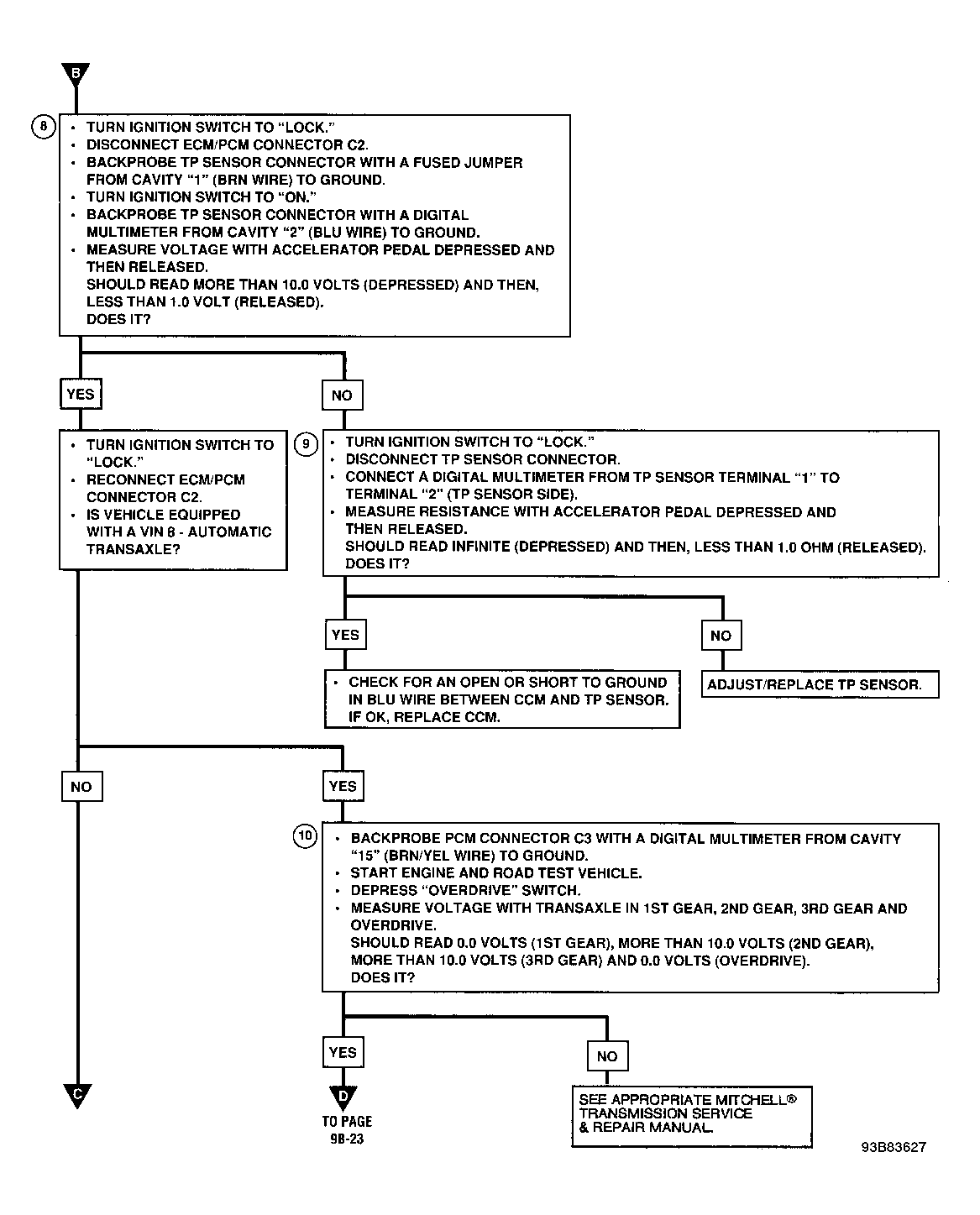

Fig 4: On-Board Diagnostic System Check Flow Chart (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

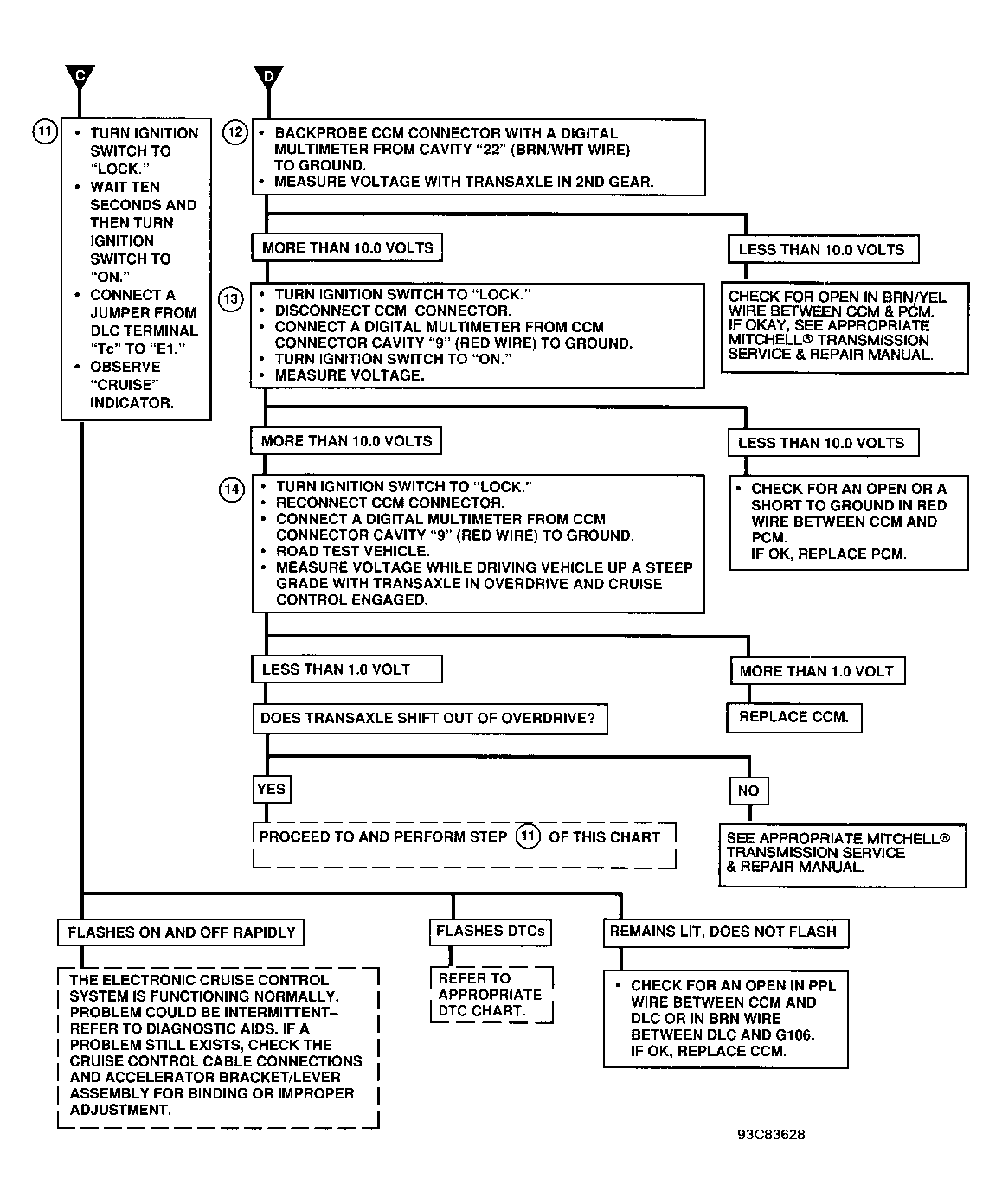

Fig 5: On-Board Diagnostic System Check Flow Chart (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
