Chart #5 Right Front Window Does Not Close With Either Right Switch Pulled Up

If right front window does not close with either right switch pulled up, see Fig 1 .

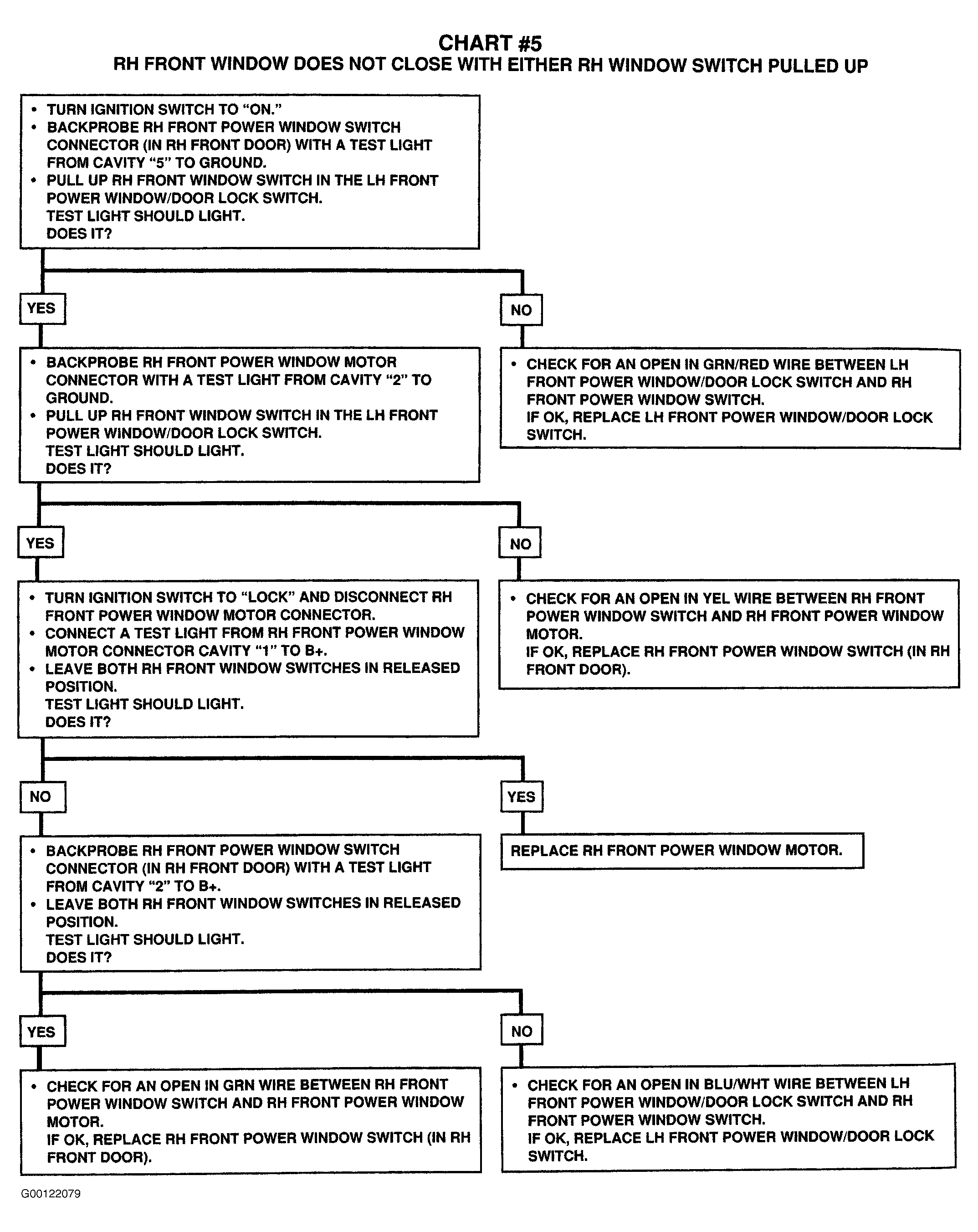

Fig 1: Chart #5: Right Front Window Does Not Close With Either Right Switch Pulled Up
G00122079Courtesy of GENERAL MOTORS CORP.
