Diagnostic Aids

When replacing IAT sensor, refer to TEMPERATURE TO RESISTANCE VALUES table. A "shifted" sensor could result in poor driveability complaints.

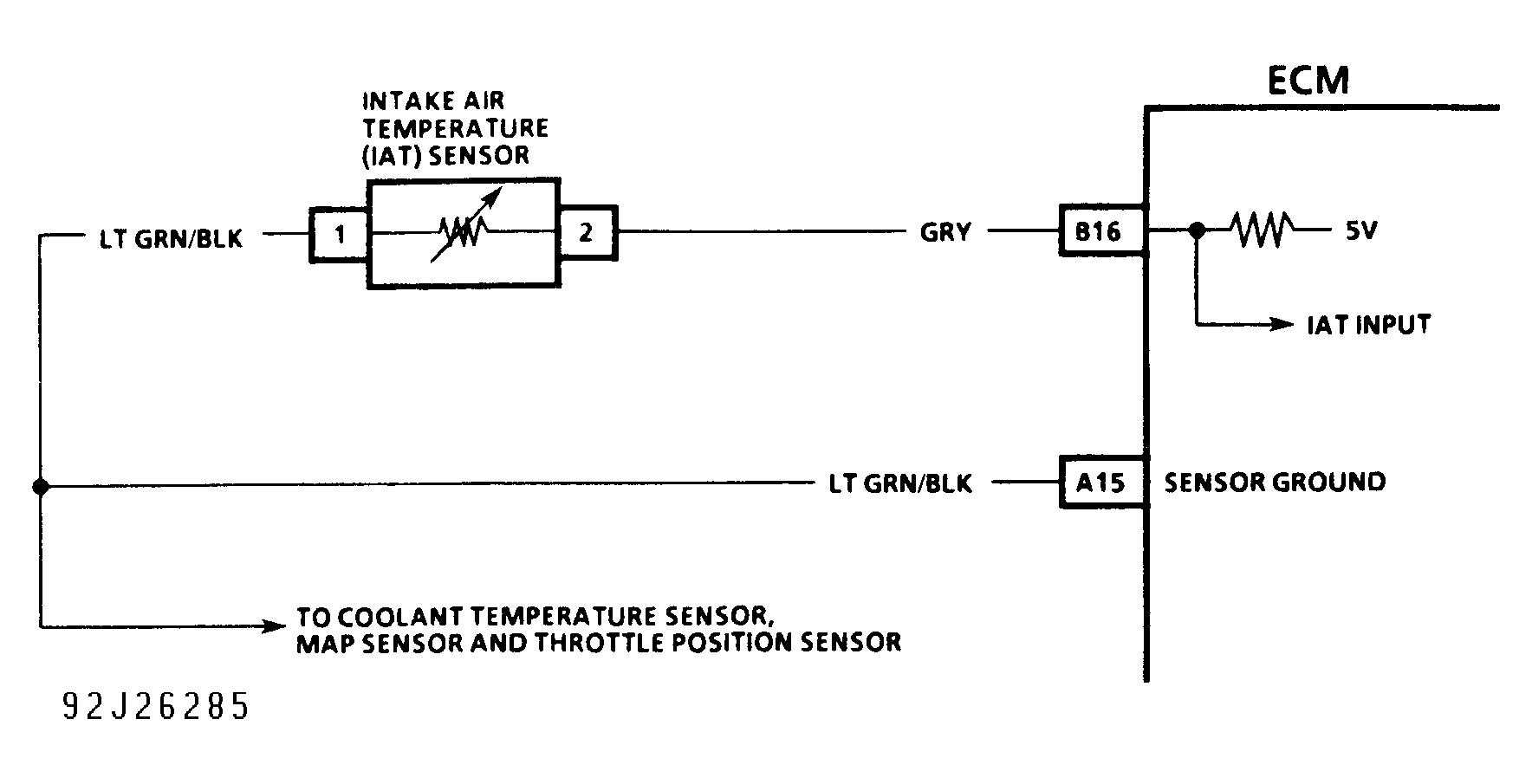

Fig 1: Code 23 Schematic Intake Air Temperature Sensor CKT, Low Temperature Indicated

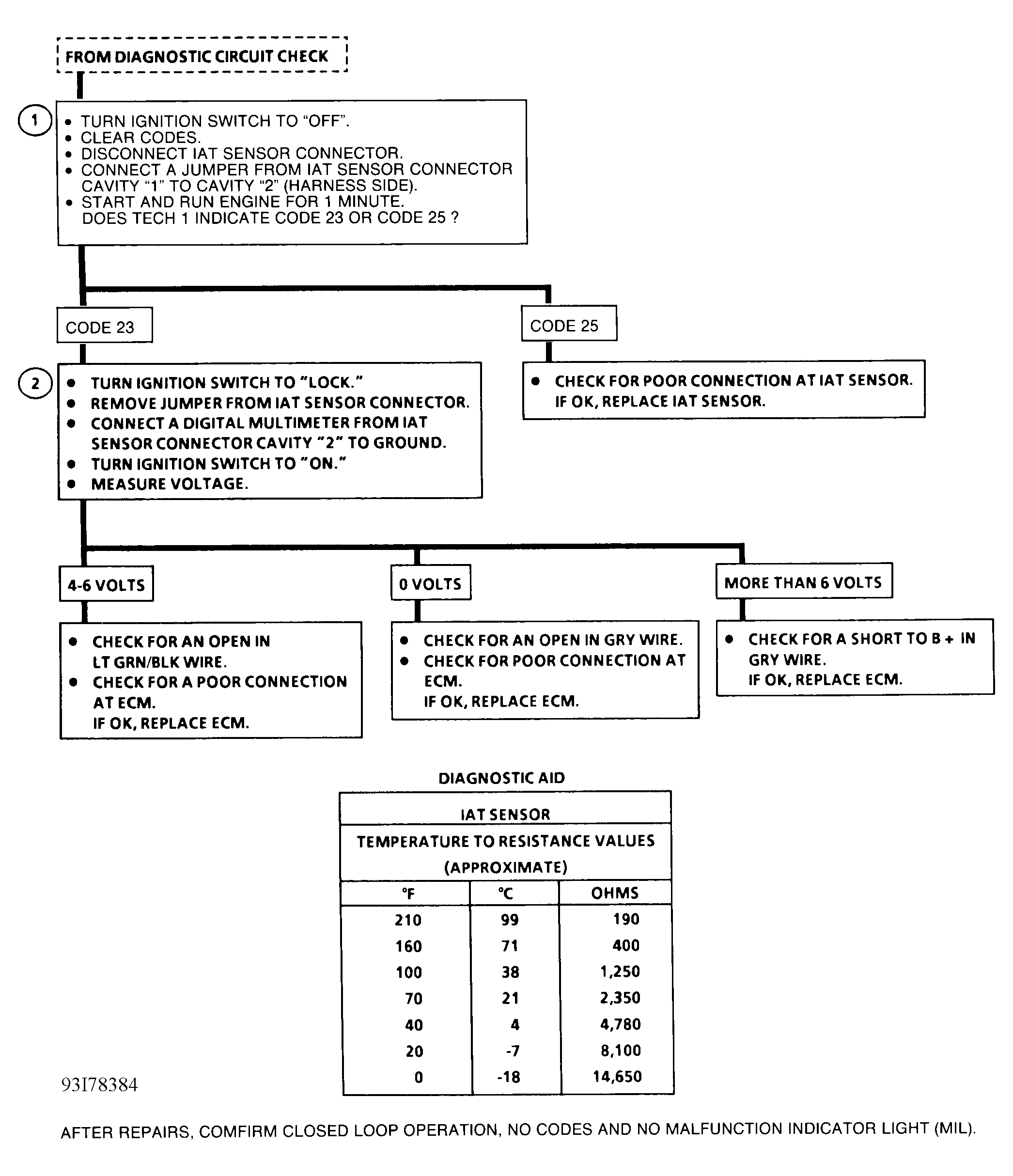

Fig 2: Code 23 Flow Chart Intake Air Temperature Sensor CKT, Low Temperature Indicated
