Wiring Diagrams: Storm

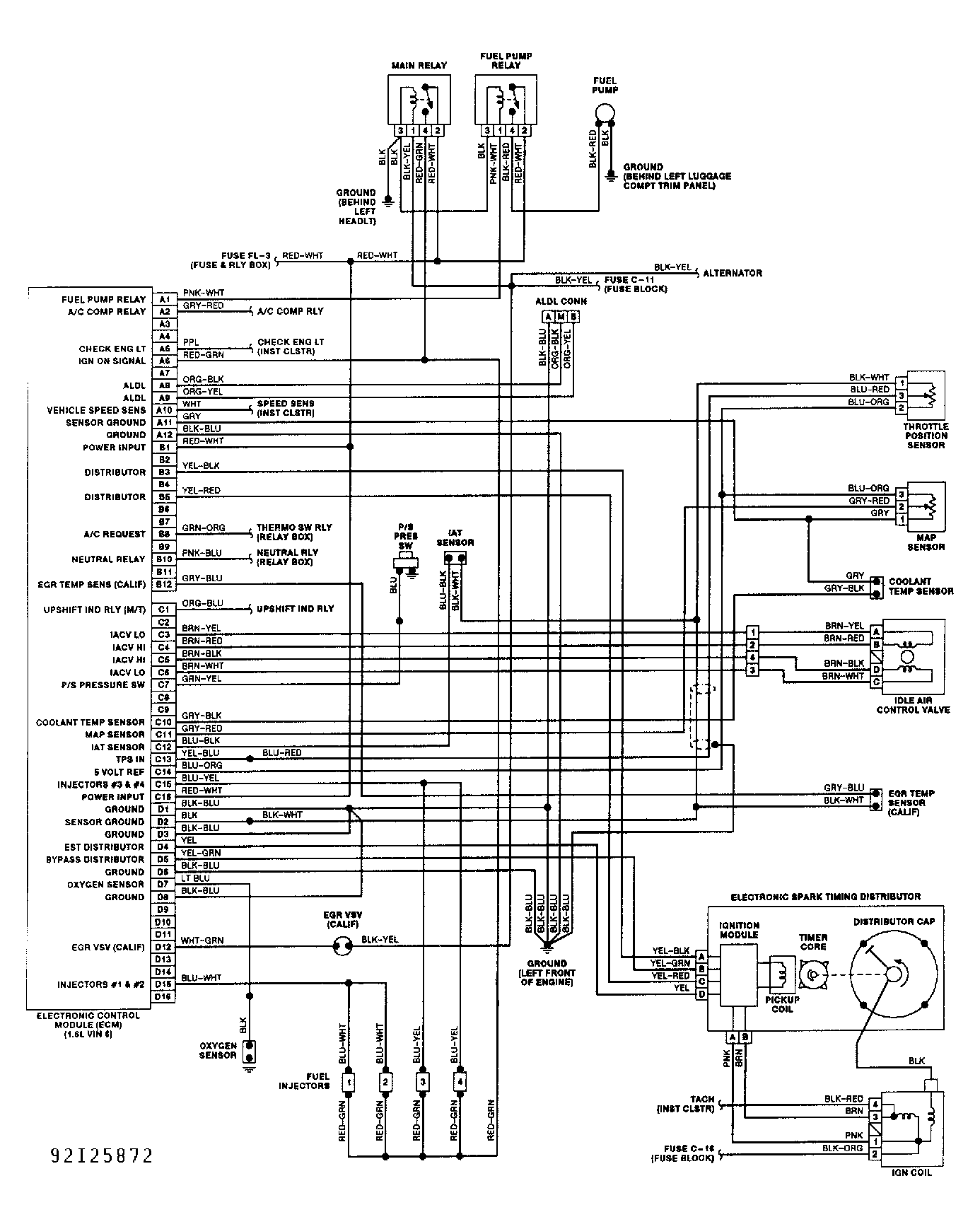

Fig 1: Wiring Diagram (Storm 1.6L - VIN 6)

G92I25872

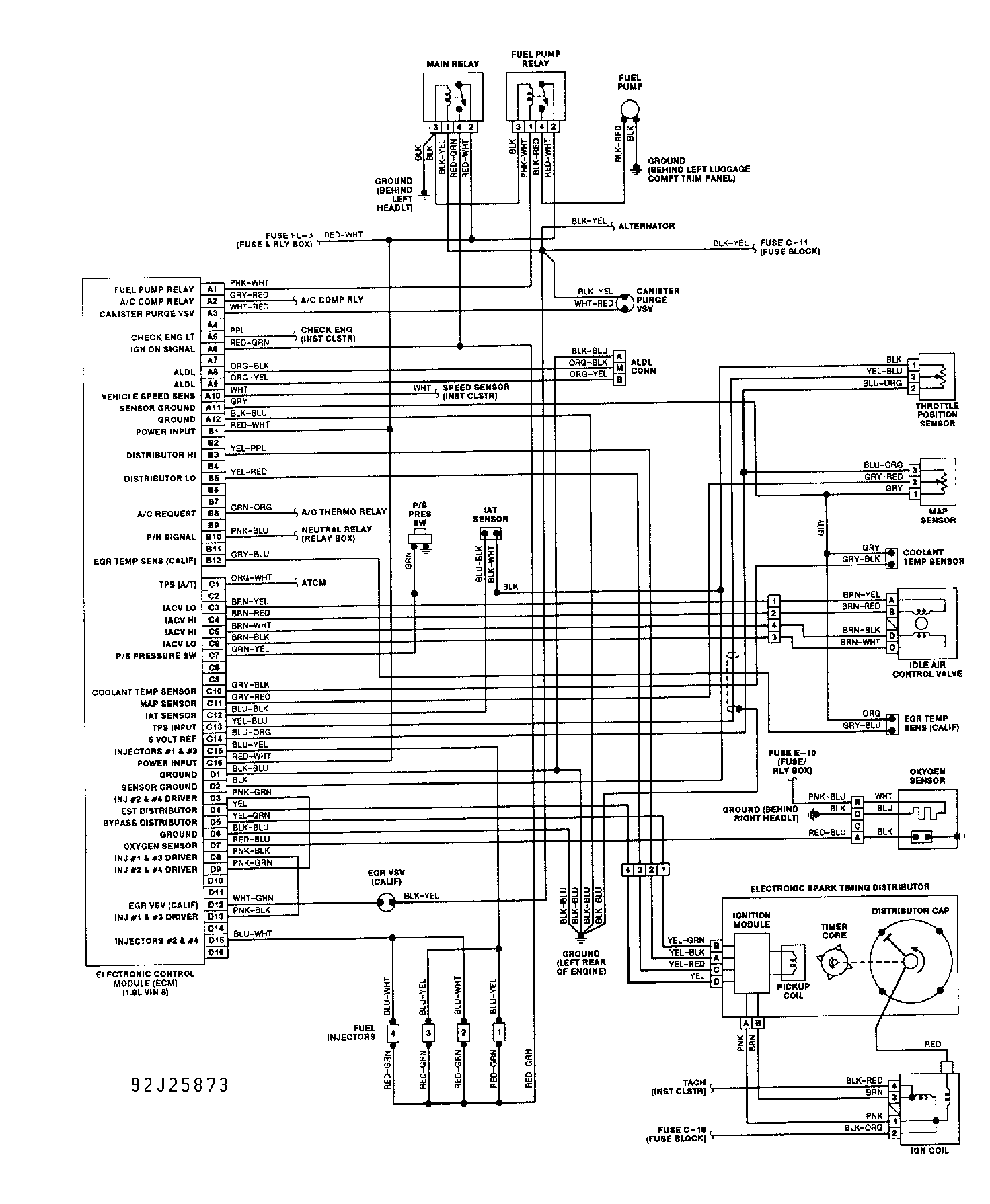

Fig 2: Wiring Diagram (Storm GSi 1.8L - VIN 8)

G92J25873
