Anti-Lock Brake System: Wiring Diagram

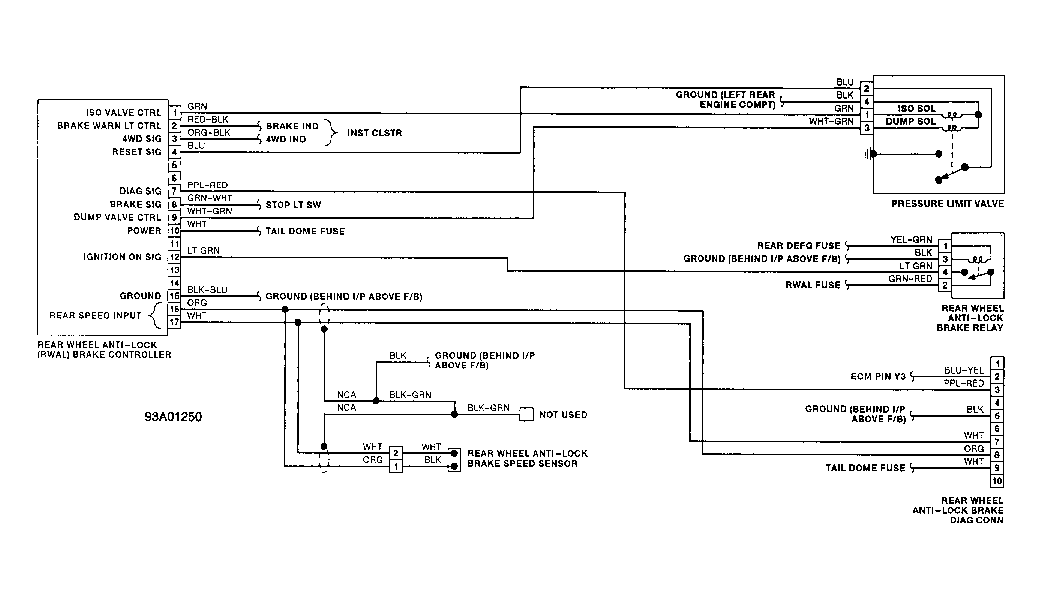

Fig 1: Rear Wheel ABS Wiring Diagram (1992 Models)

G93A01250

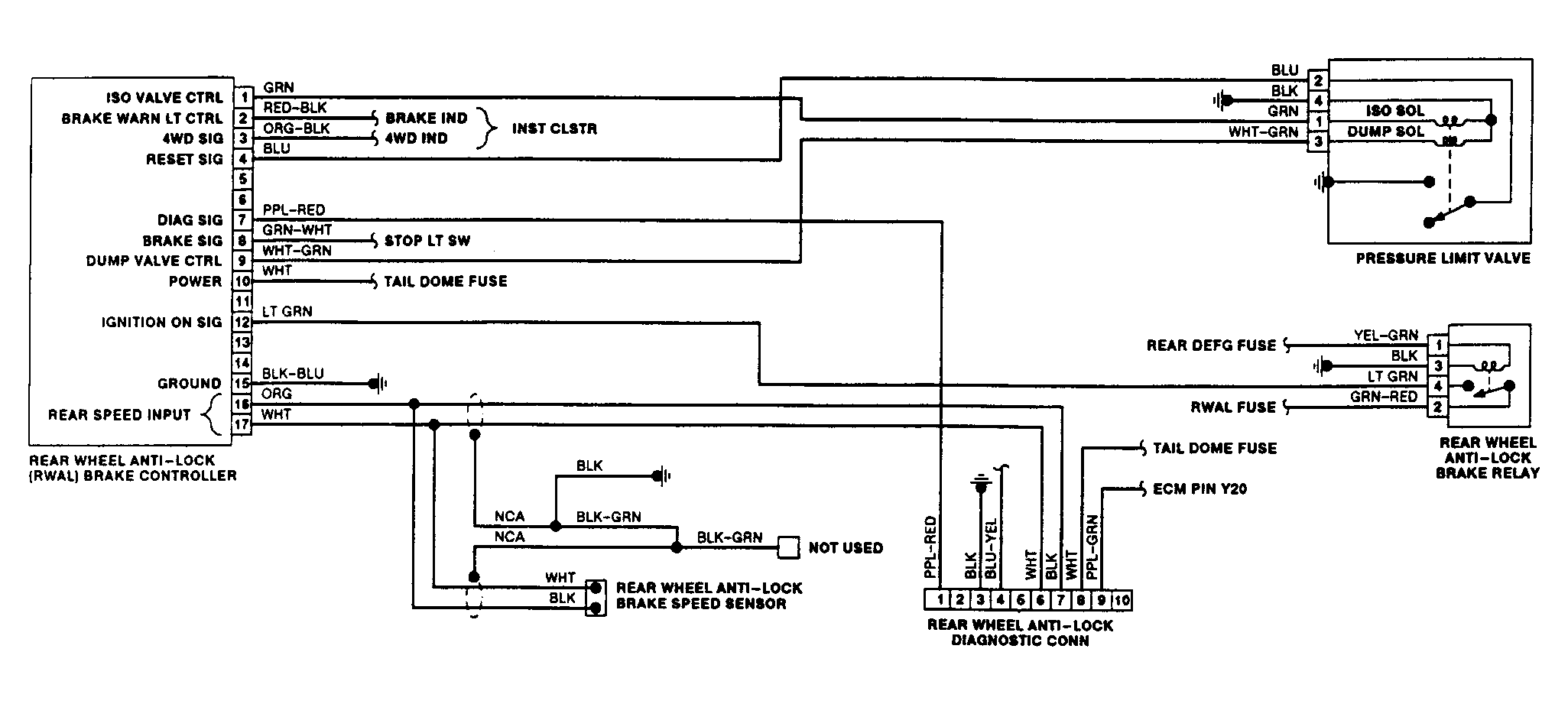

Fig 2: Rear Wheel ABS Wiring Diagram (1991 Models)

G92H01437
