Final Drive Assembly: Reassembly

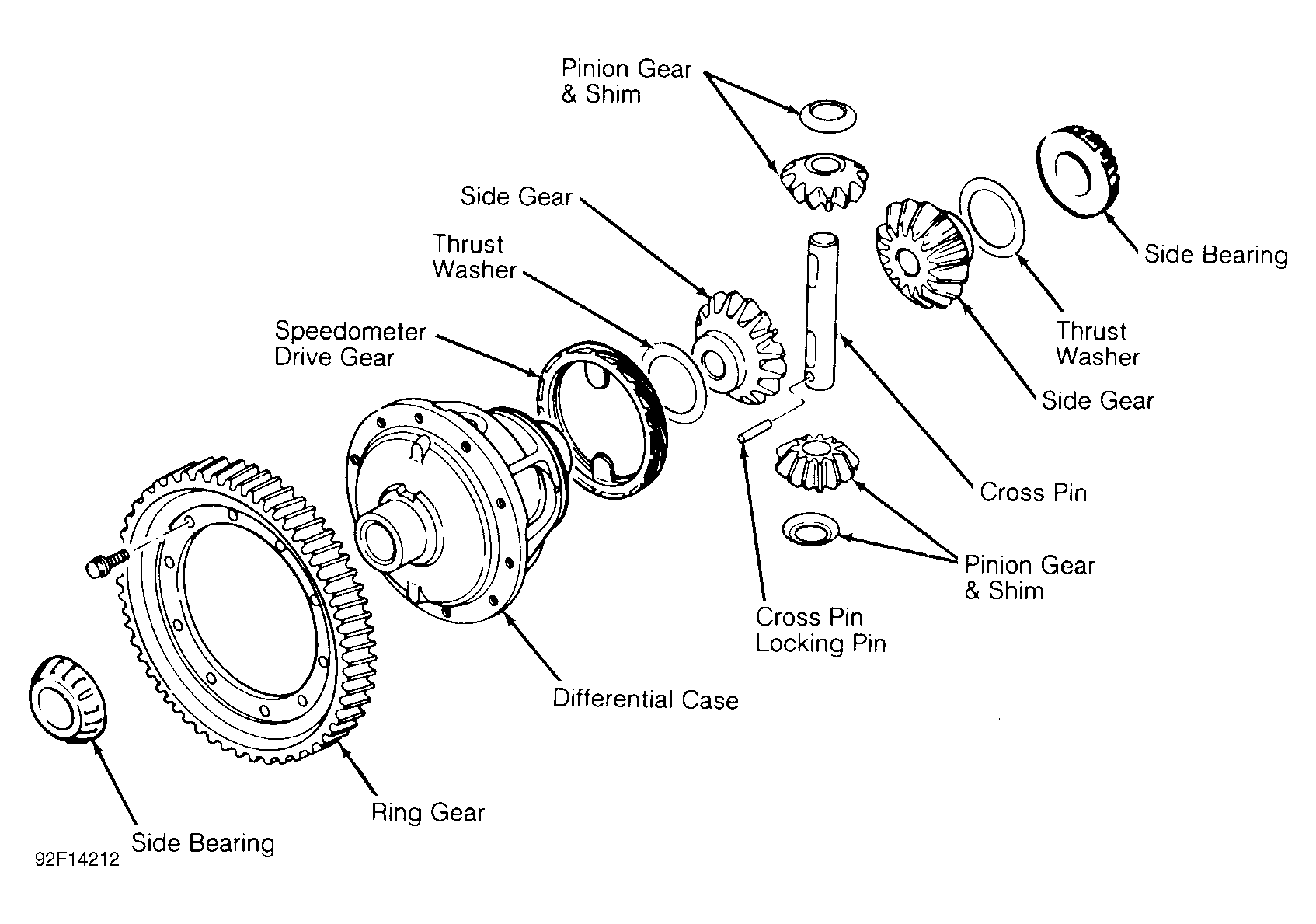

- Assemble differential side gears and thrust washers into carrier. Set thrust washers onto pinion gears. Assemble pinion gears and washers into carrier. See Fig 1.
- Rotate pinion gears into position, then install cross pin. Tap cross pin locking pin into position. Tap speedometer drive gear into position (if removed). Install side bearings on differential (if removed).
