Clutch Master Cylinder: Reassembly

Clean all parts that are to be reused. Inspect for wear or damage. Coat piston and cylinder cups with fresh DOT 3 brake fluid. To complete assembly, reverse disassembly procedure.

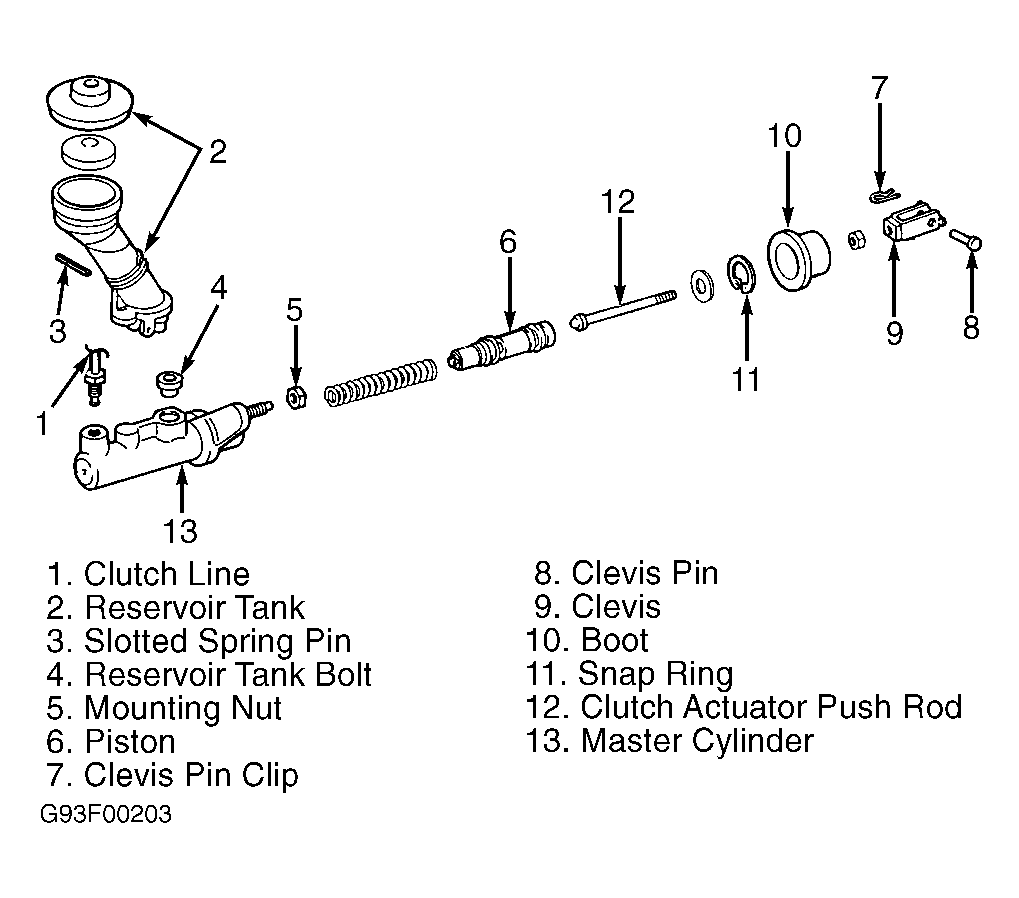

Fig 1: Exploded View Of Clutch Master Cylinder (Prizm)

Courtesy of GENERAL MOTORS CORP.
