LEMON Manuals: Even more car manuals for everyone

Home >> Geo >> 1992 >> Storm Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagrams >> PRIZM

Wiring Diagrams: PRIZM

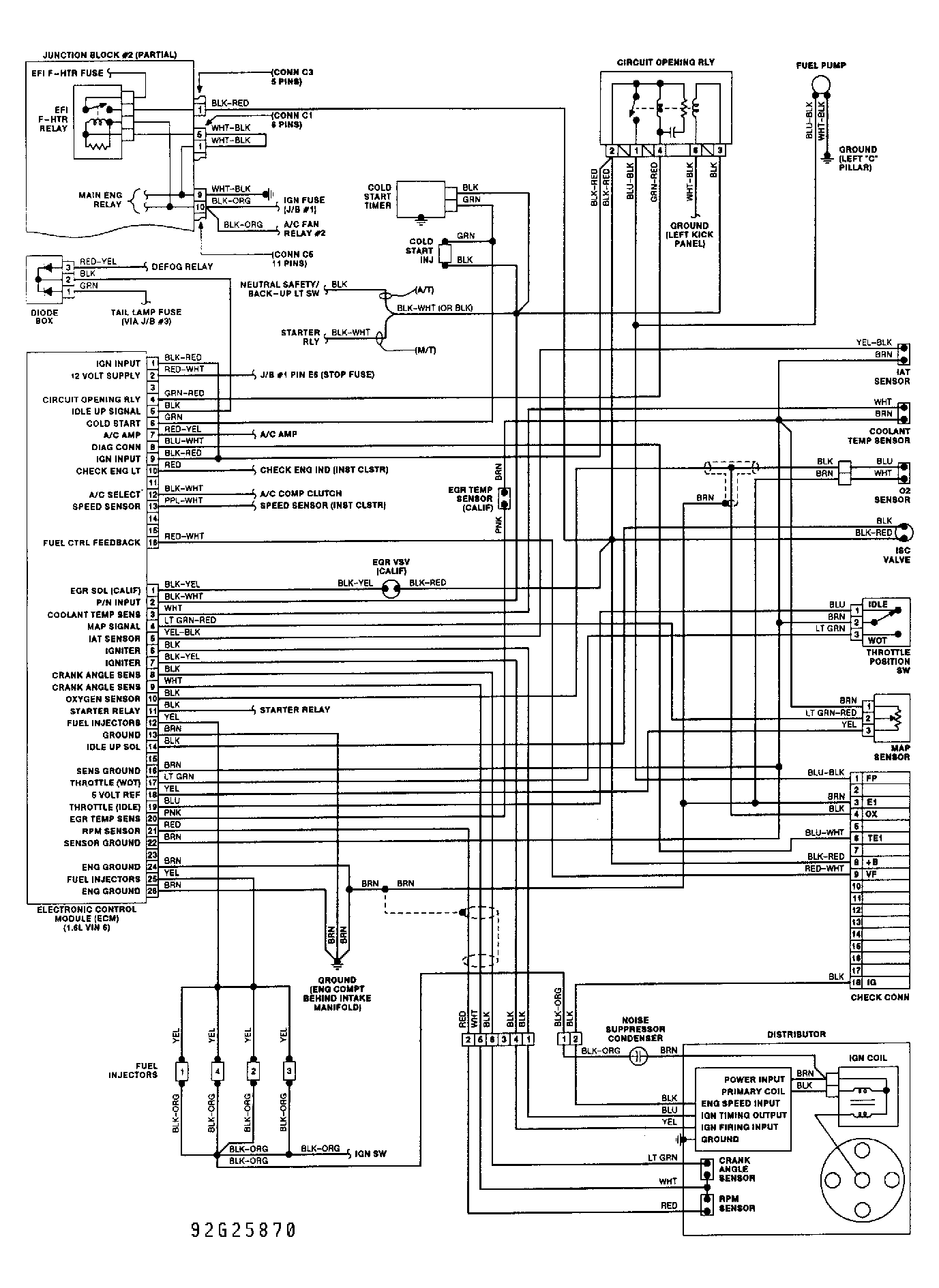

Fig 1: Wiring Diagram (Prizm 1.6L - VIN 6)

G92G25870

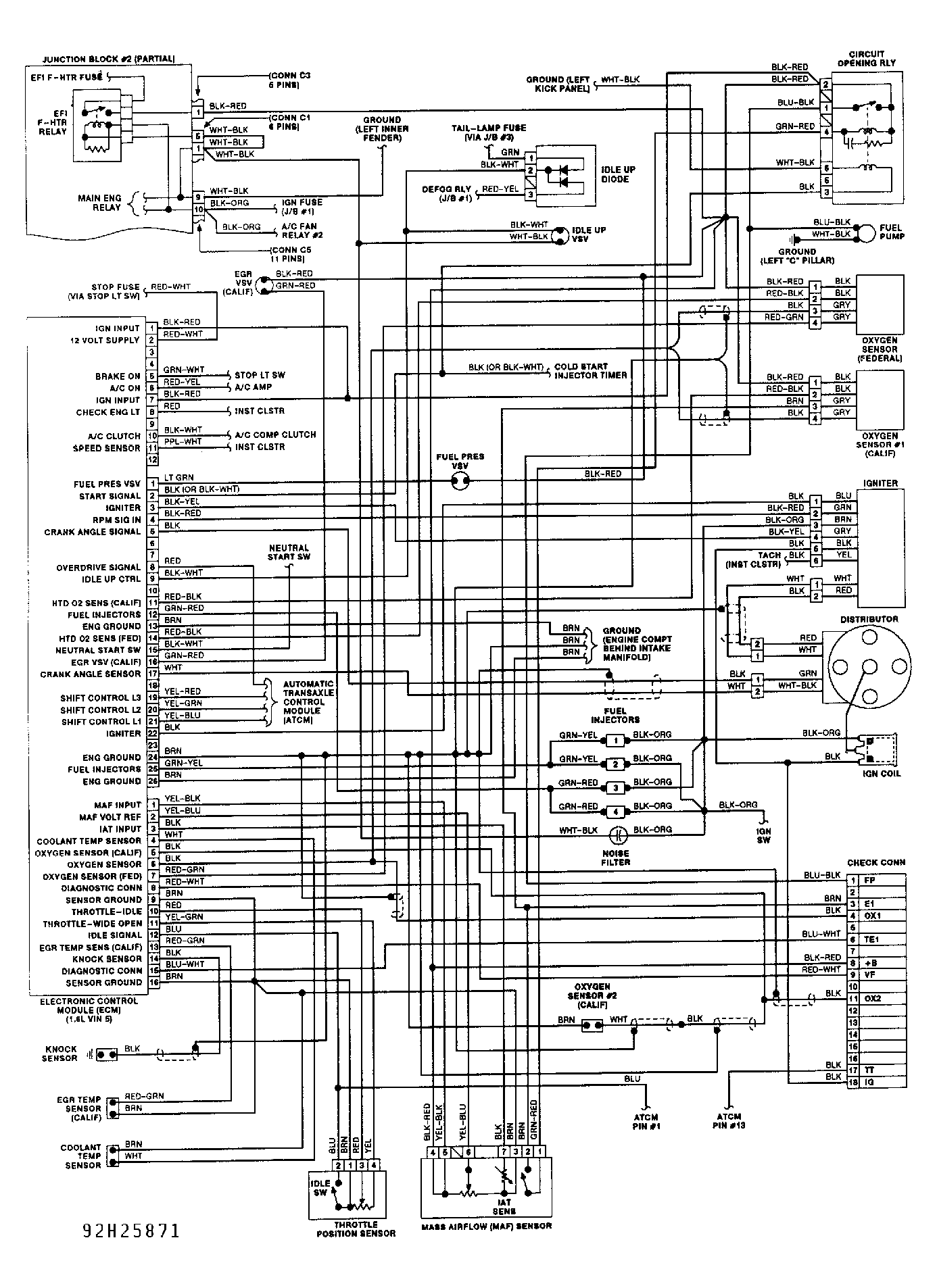

Fig 2: Wiring Diagram (Prizm GSi 1.6L - VIN 5)

G92H25871
