Wiring Diagrams

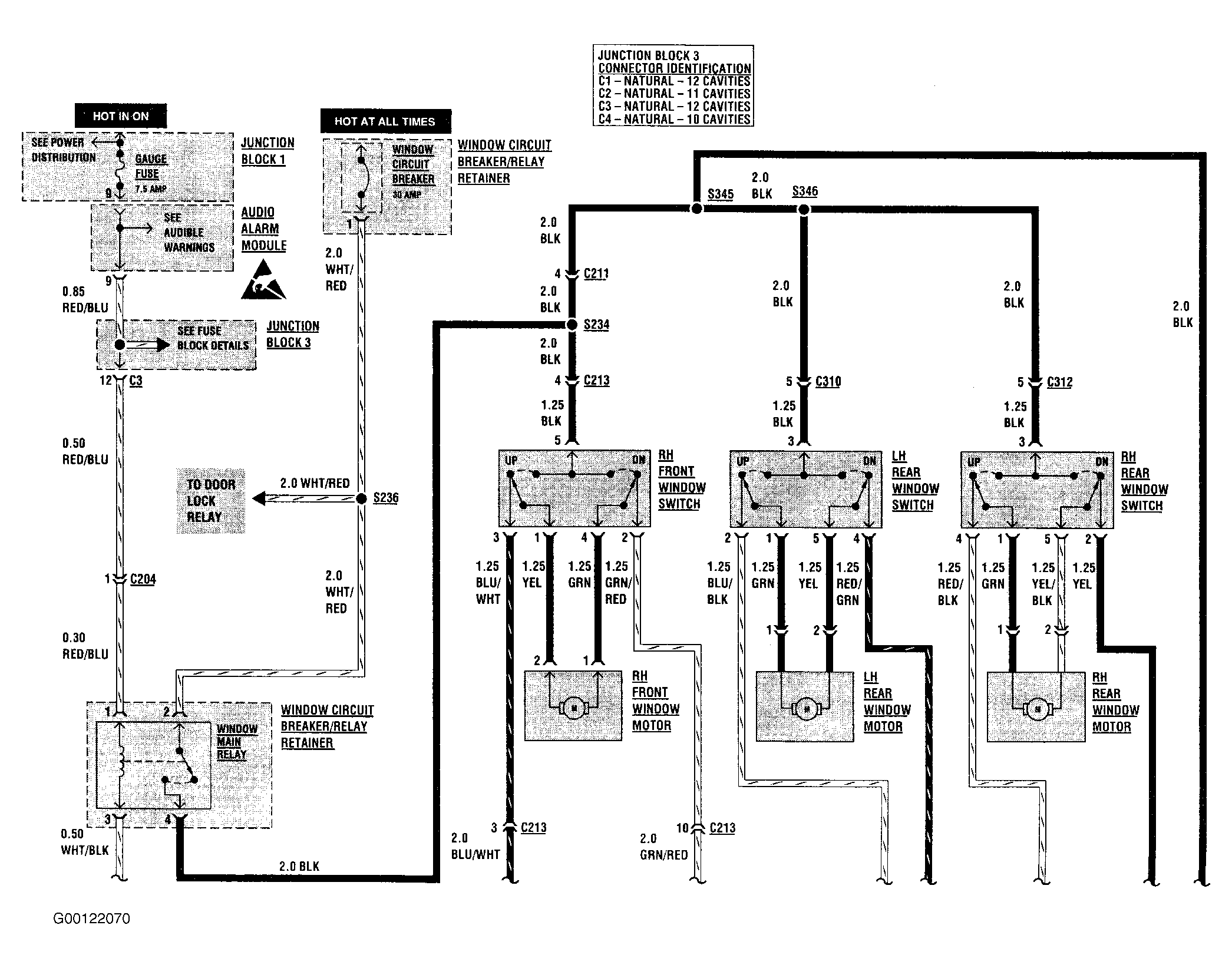

Fig 1: Power Window Circuit (1 Of 2)

G00122070

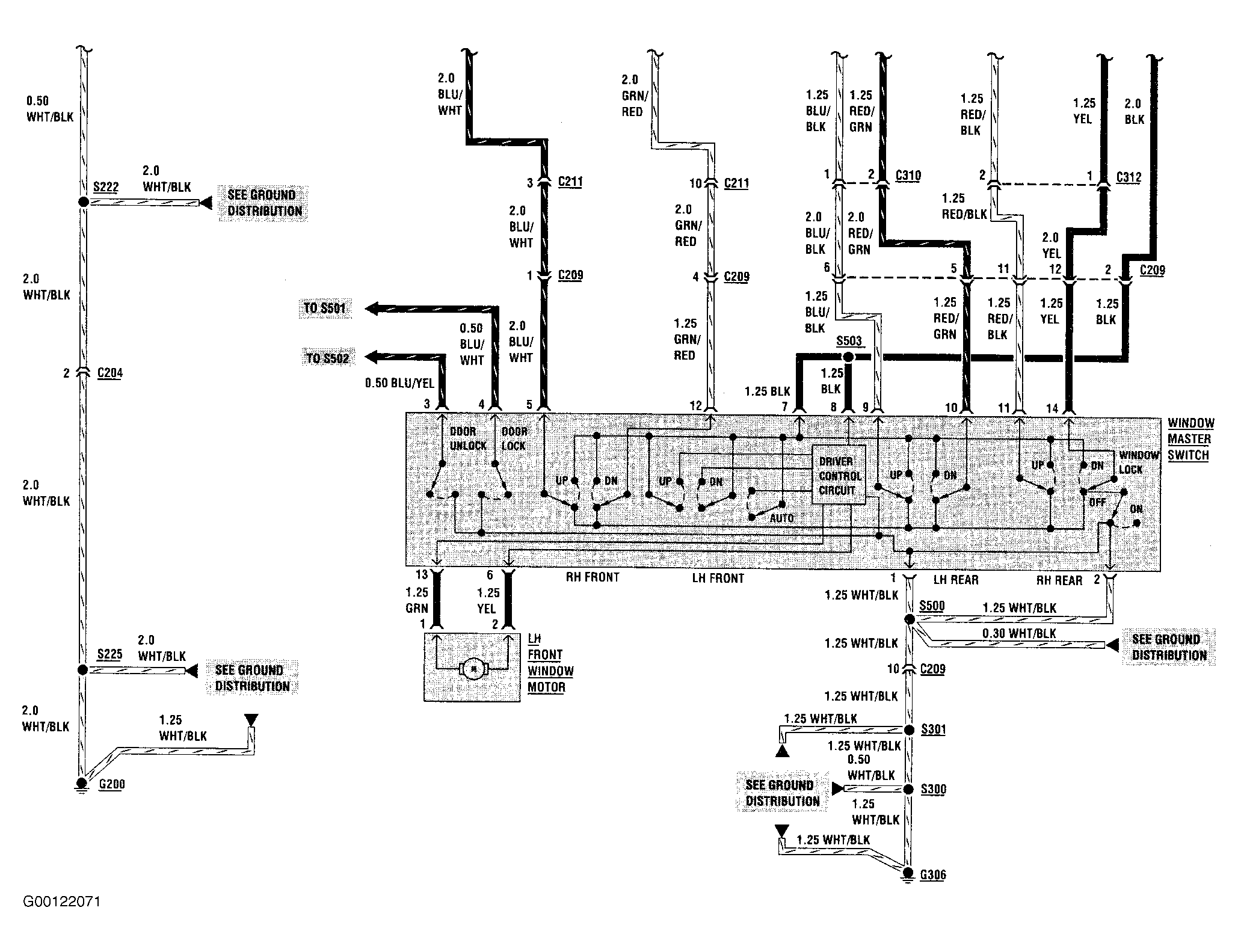

Fig 2: Power Window Circuit (2 Of 2)

G00122071
