Accumulator Spring Specifications

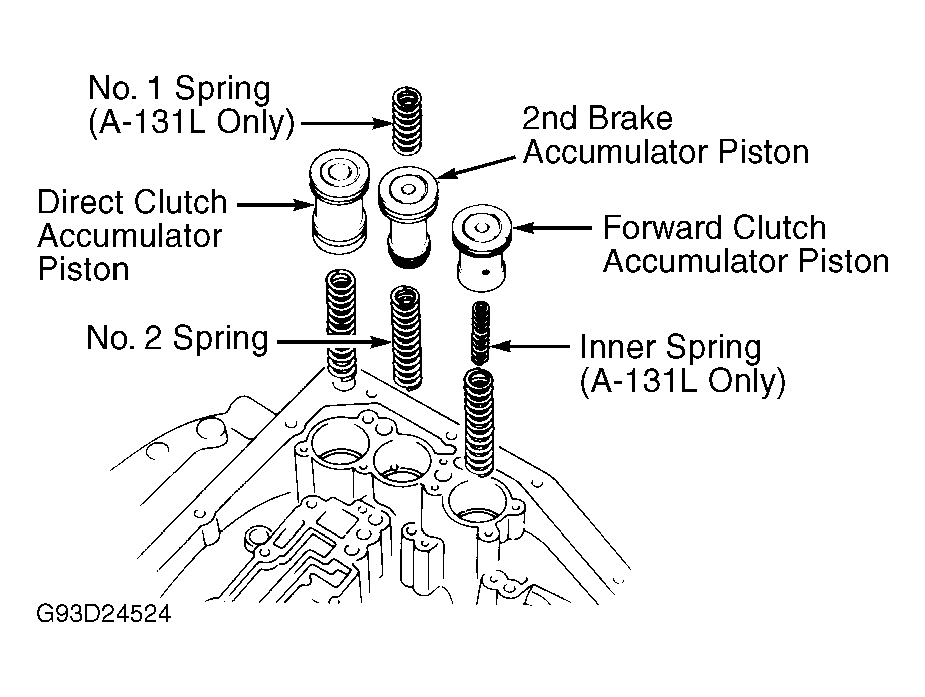

ACCUMULATOR SPRING SPECIFICATIONS (A/W A-131L)
| Application |
Free Length - In. (mm) |
| Forward Clutch |
| Inner |
1.523 (38.68) |
| Outer |
2.074 (52.68) |
| Direct Clutch |
2.935 (74.54) |
| 2nd Brake |
| No. 1 |
1.385 (35.18) |
| No. 2 |
2.231 (56.68) |
ACCUMULATOR SPRING SPECIFICATIONS (TOYOTA A-131L)
| Application |
Free Length - In. (mm) |
| Forward Clutch |
| Inner |
1.523 (38.68) |
| Outer |
2.074 (52.68) |
| Direct Clutch |
3.101 (78.76) |
| 2nd Brake |
2.482 (63.05) |
ACCUMULATOR SPRING SPECIFICATIONS (A-132L)
| Application |
Free Length - In. (mm) |
| Forward Clutch |
2.067 (52.50) |
| Direct Clutch |
2.618 (66.50) |
| 2nd Brake |
2.625 (66.68) |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

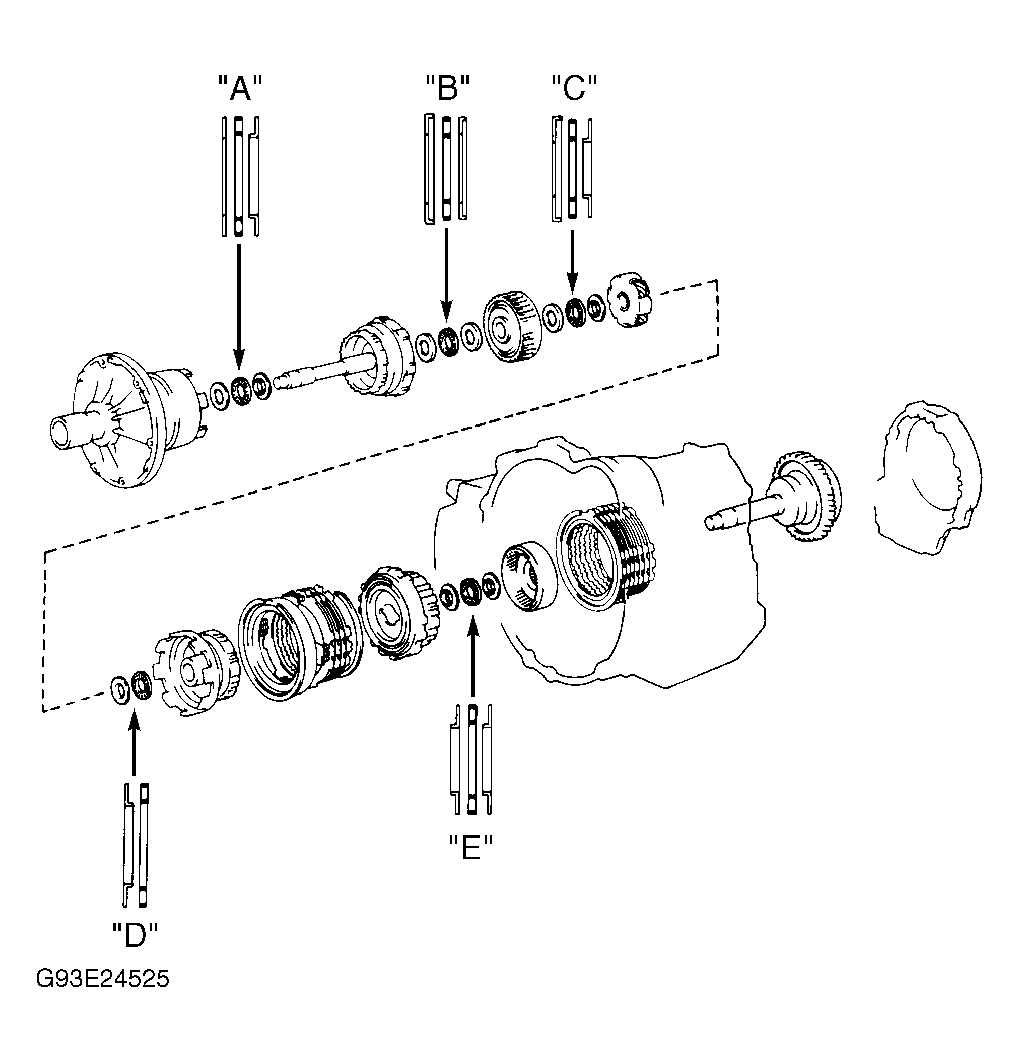

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 BEARING RACE & THRUST BEARING SPECIFICATIONS
| Application (Letter I.D.) |
Outer Diameter: In. (mm) |
| Front Bearing Race |
| "A" |
1.693 (43.00) |
| "B" & "C" |
1.492 (37.90) |
| "D" |
1.772 (45.00) |
| "E" |
1.469 (37.30) |
| Thrust Bearing |
| "A" |
1.654 (42.00) |
| "B" & "C" |
1.421 (36.10) |
| "D" |
1.772 (45.00) |
| "E" |
1.480 (37.60) |
| Rear Bearing Race |
| "A" |
1.654 (42.00) |
| "B" |
1.406 (35.70) |
| "C" |
1.378 (35.00) |
| "D" |
N/A |
| "E" |
1.480 (37.60) |
