Throttle Cable: Installation

1. Install throttle cable in transaxle case. Ensure cable is fully seated. Install retaining bolt and plate. Install control valve assembly. On NEW throttle cables, stopper must be staked on inner cable. Bend cable in approximately a 7.87" (200 mm) radius.
2. Pull inner cable lightly, until a slight resistance is felt, and hold in place. Stake stopper on inner cable, leaving a .031-.059" (.78-1.49 mm) gap between cable housing and stopper. See Fig 1.

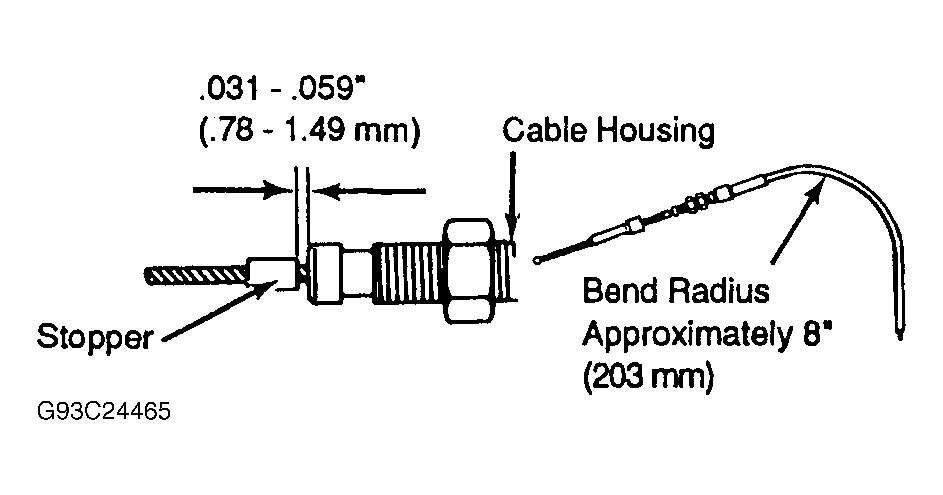

   Fig 1: Locating Throttle Cable Stopper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust throttle cable and neutral safety switch (if necessary). See appropriate AUTOMATIC TRANSMISSION SERVICING article:
   • 1988 Nova, see TRANSMISSION SERVICING - A/T
   • 1989-91 Prizm, see TRANSMISSION SERVICING - A/T
   • 1992-94 Prizm, see TRANSMISSION SERVICING - A/T
   • 1989-91 Corolla & Tercel, see TRANSMISSION SERVICING - A/T
   • 1992-94 Corolla & Tercel, see TRANSMISSION SERVICING - A/T

Install manual shift lever. Install transaxle control cable. Test drive vehicle.
