Overhaul - A-130 Series: Identification

This transmission may be manufactured by either Aisin Warner or Toyota. On Geo Prizm, transaxle identification number is located near transaxle rear cover. On Corolla, transaxle identification number is located on converter housing (Aisin Warner), or on top of transaxle case, near carrier cover (Toyota). On Tercel, transaxle identification number is located on top of transaxle case near carrier cover (Toyota). See Fig 1-Fig 3 .

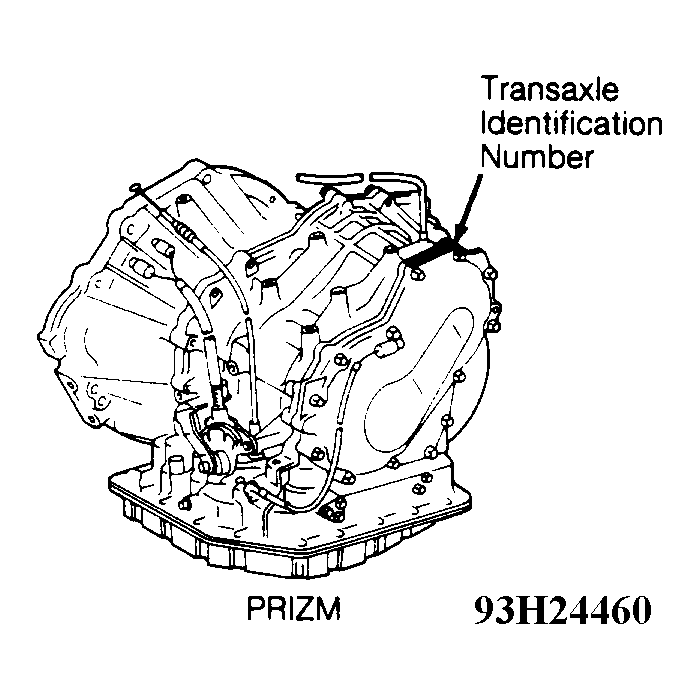

Fig 1: Locating Transaxle Identification Number (Prizm)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

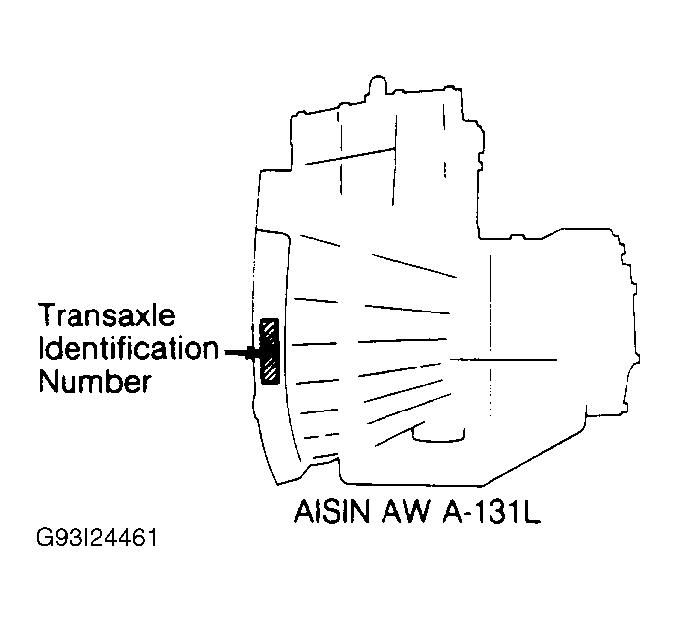

Fig 2: Locating Transaxle Identification Number (Aisin AW A-131L)

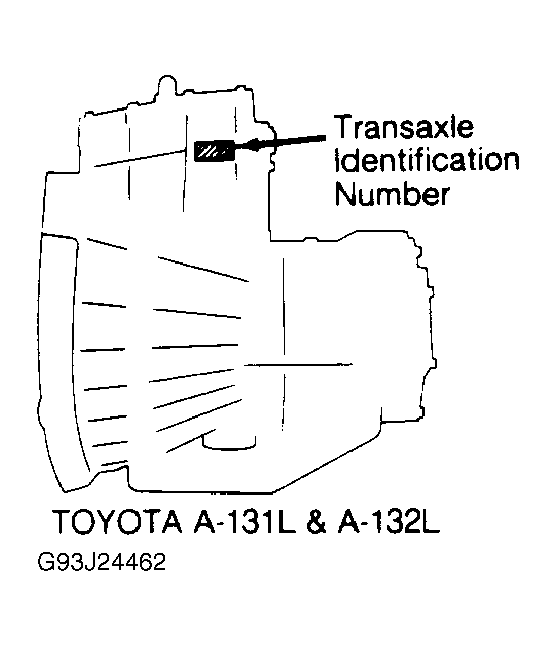

Fig 3: Transaxle Identification Number (Toyota A-131L & A132L)
