Diagnostic Aids

A misadjusted TPS may set a false Code 41.

Intermittent condition may be caused by rubbed-through insulation, or a wire broken inside the insulation. Check ECM harness connectors for backed-out or damaged terminals. If code is intermittent, see TESTS W/O CODES article in this section.

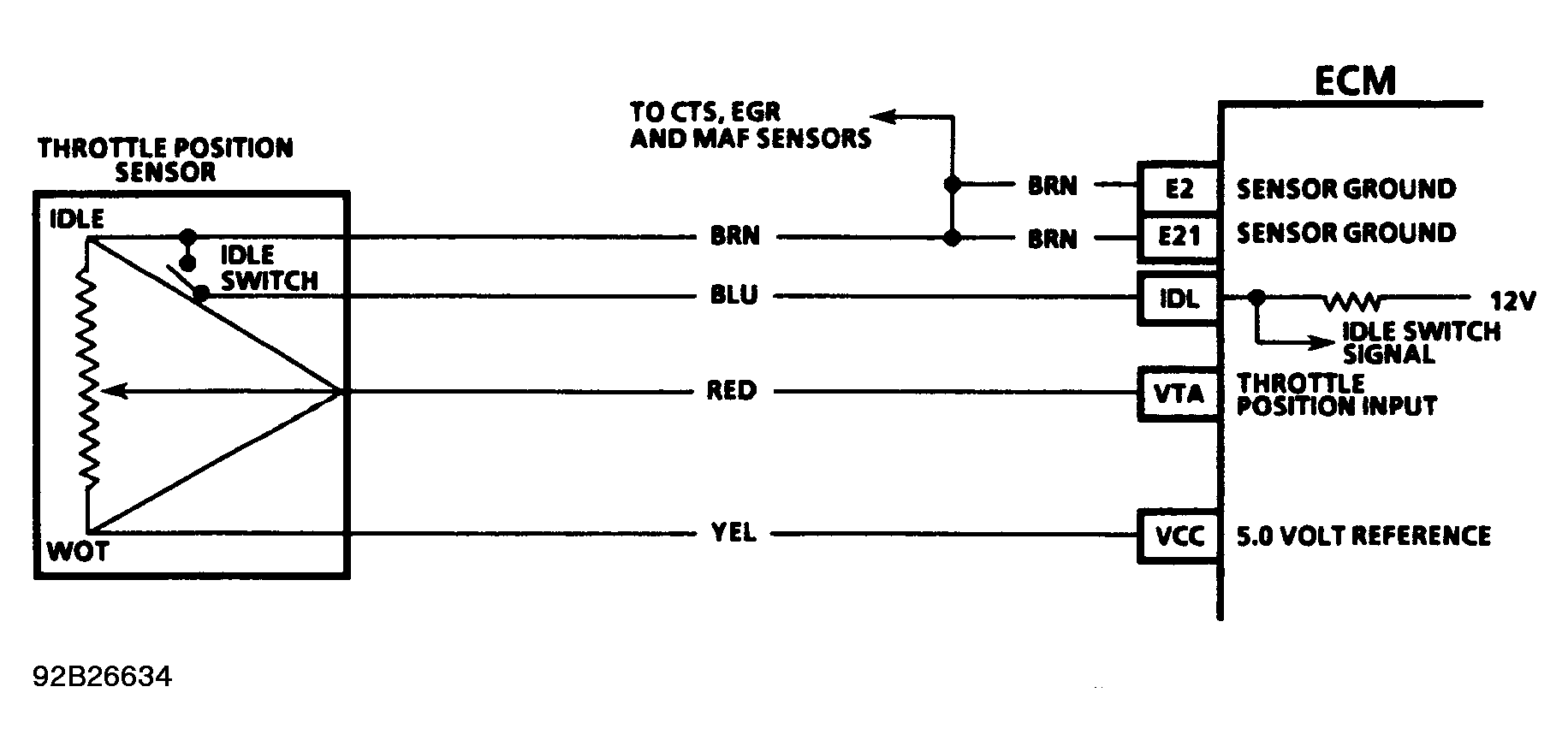

Fig 1: Code 41 Schematic (GSi), Throttle Position Sensor (TPS) Open Or Short Circuit
G92B26634

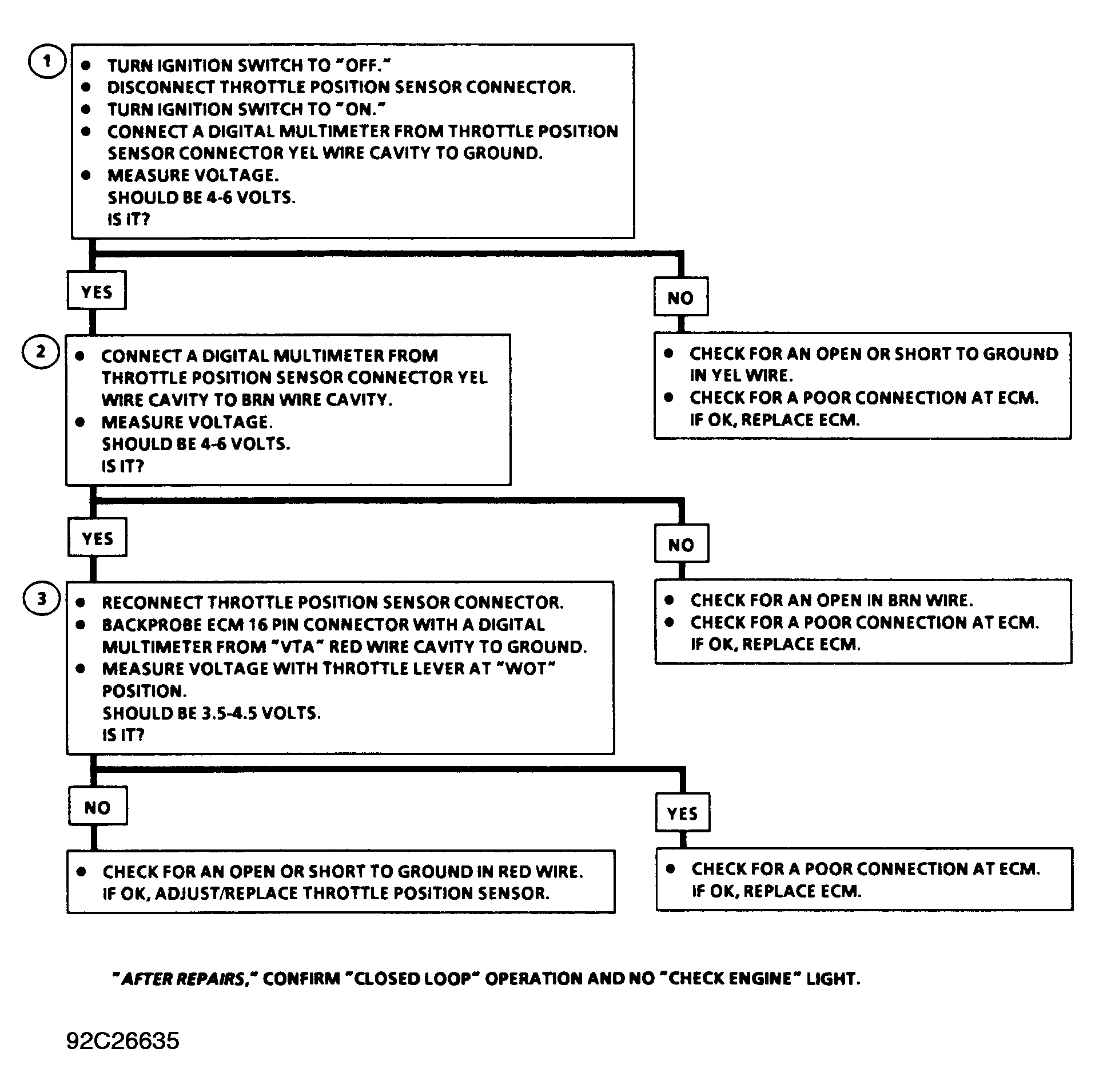

Fig 2: Code 41 Flow Chart (GSi), Throttle Position Sensor (TPS) Open Or Short Circuit
G92C26635
