Diagnostic Aids

After engine is started, engine coolant temperature should rise to approximately 203°F (95°C) and stabilize when thermostat opens. Code 22 will set if Brown or White wire is open. If code is intermittent, see TESTS W/O CODES article in this section.

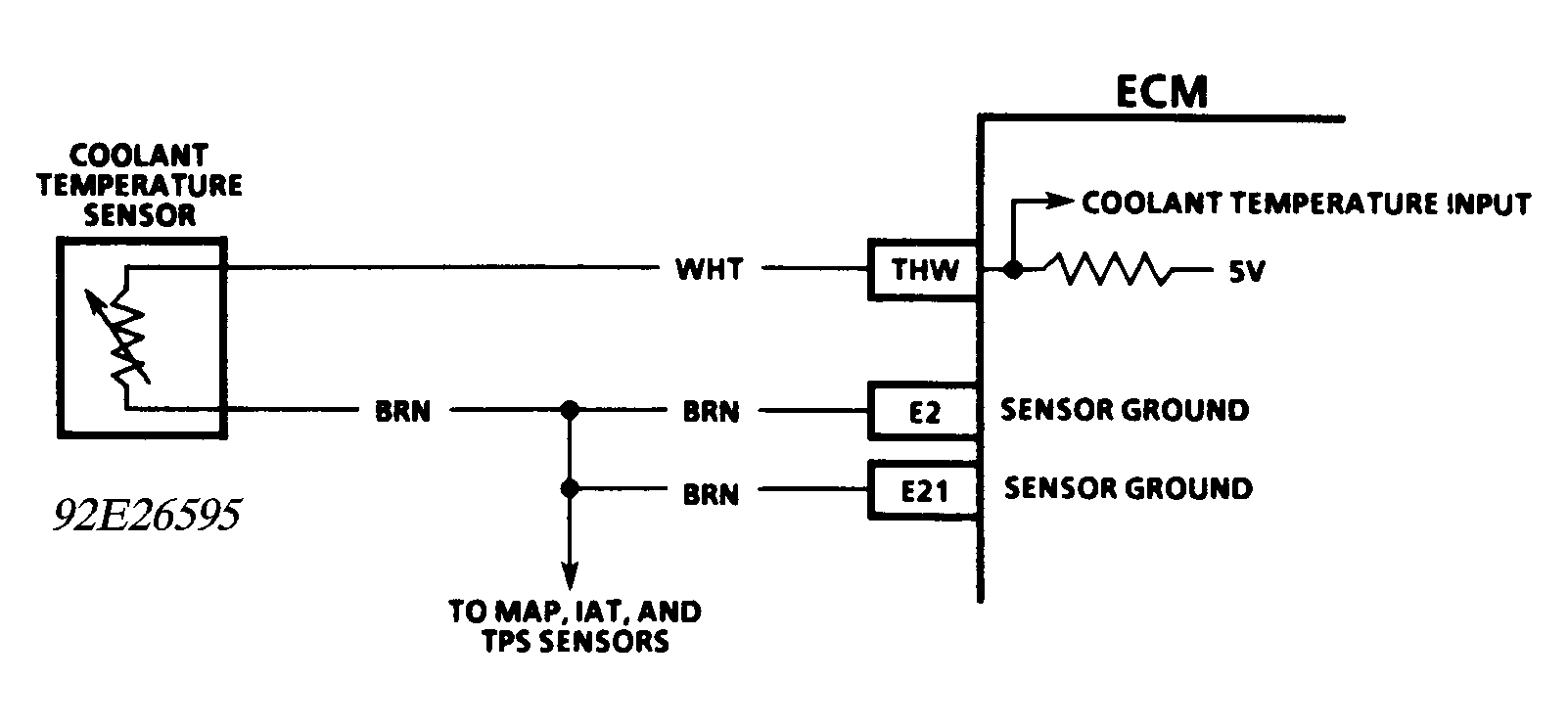

Fig 1: Code 22 Schematic (Except GSi), Coolant Temperature Sensor Open Or Shorted Circuit
G92E26595

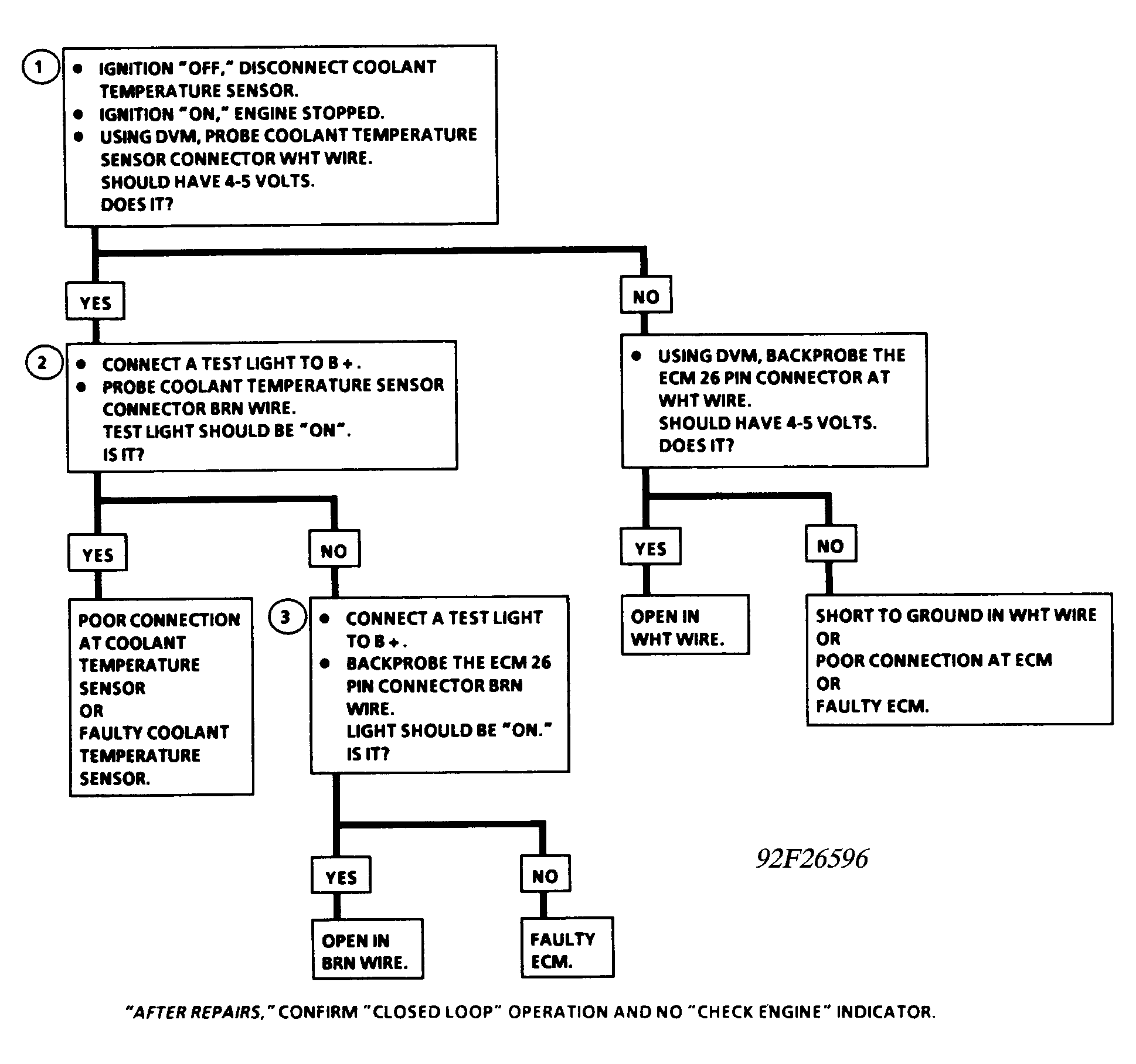

Fig 2: Code 22 Flow Chart (Except GSi), Coolant Temperature Sensor Open Or Shorted Circuit
G92F26596
