Engine Compartment Relay Block Identification - 1995-97

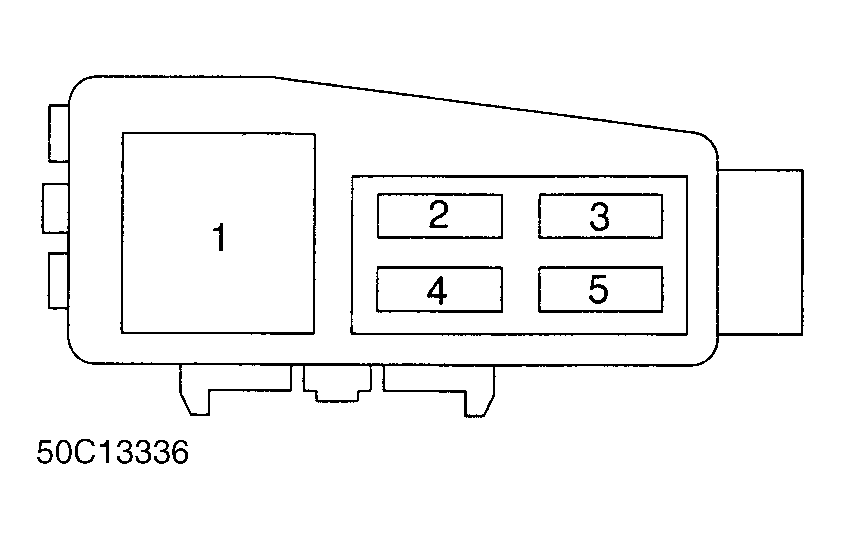

Fig 1: Engine Compartment Relay Block Identification- 1995-97

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

• 1 - DRL NO. 2
• 2 - HEAD (LH-UPR)  - Left Hand Headlight (High Beam)
• 3 - HEAD (LH LWR)  - Left Hand Headlight (Low Beam)
• 4 - HEAD (RH-UPR)  - Right Hand Headlight (High Beam)
• 5 - HEAD (RH LWR)  - Right Hand Headlight (Low Beam)
