Cruise Control Systems: Wiring Diagram

For 1992 wiring, See appropriate chassis wiring diagram in the WIRING DIAGRAMS Section.

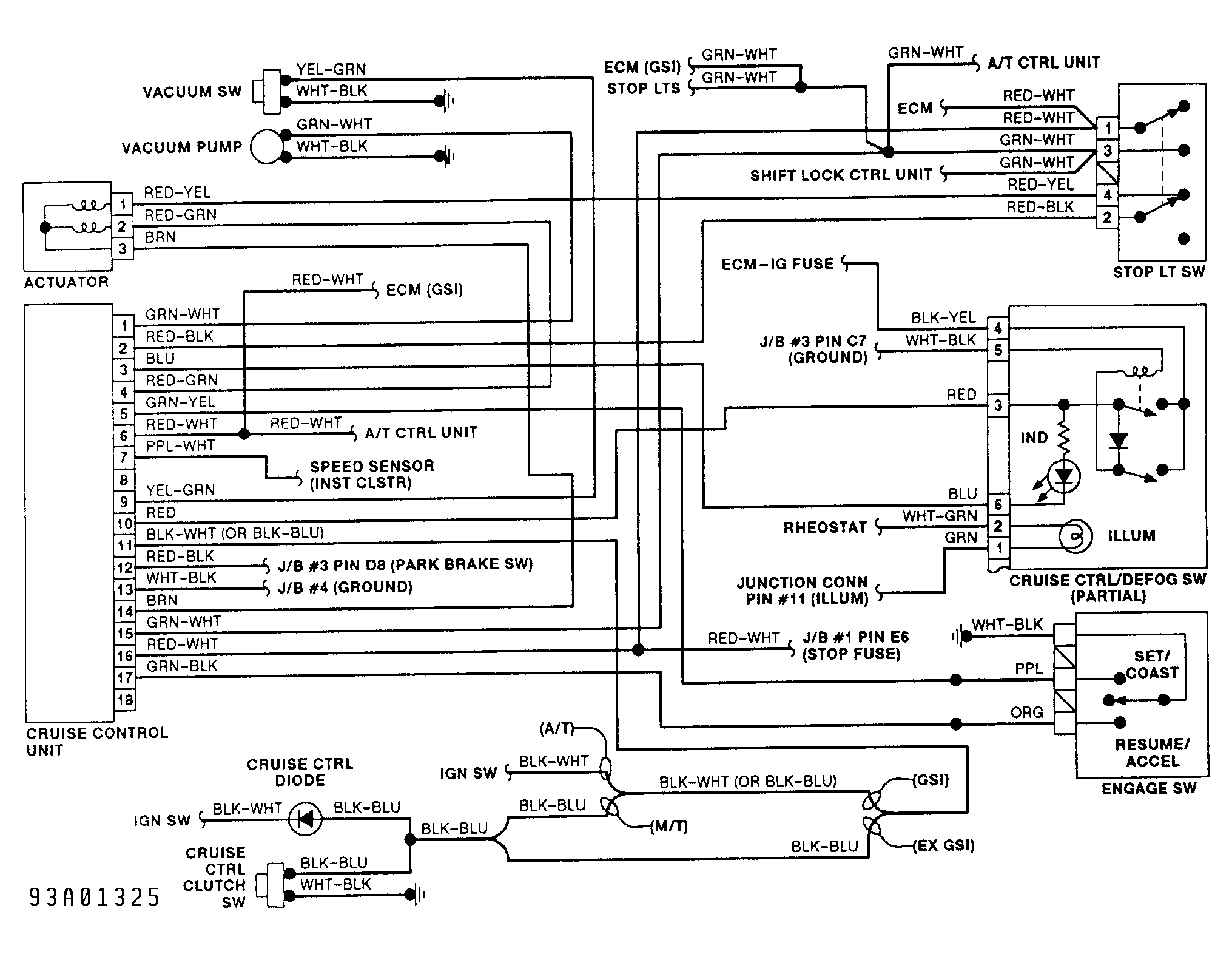

Fig 1: 1991 Cruise Control System Wiring Diagram

G93A01325
