Service Indicator & Warning Lights: Notes

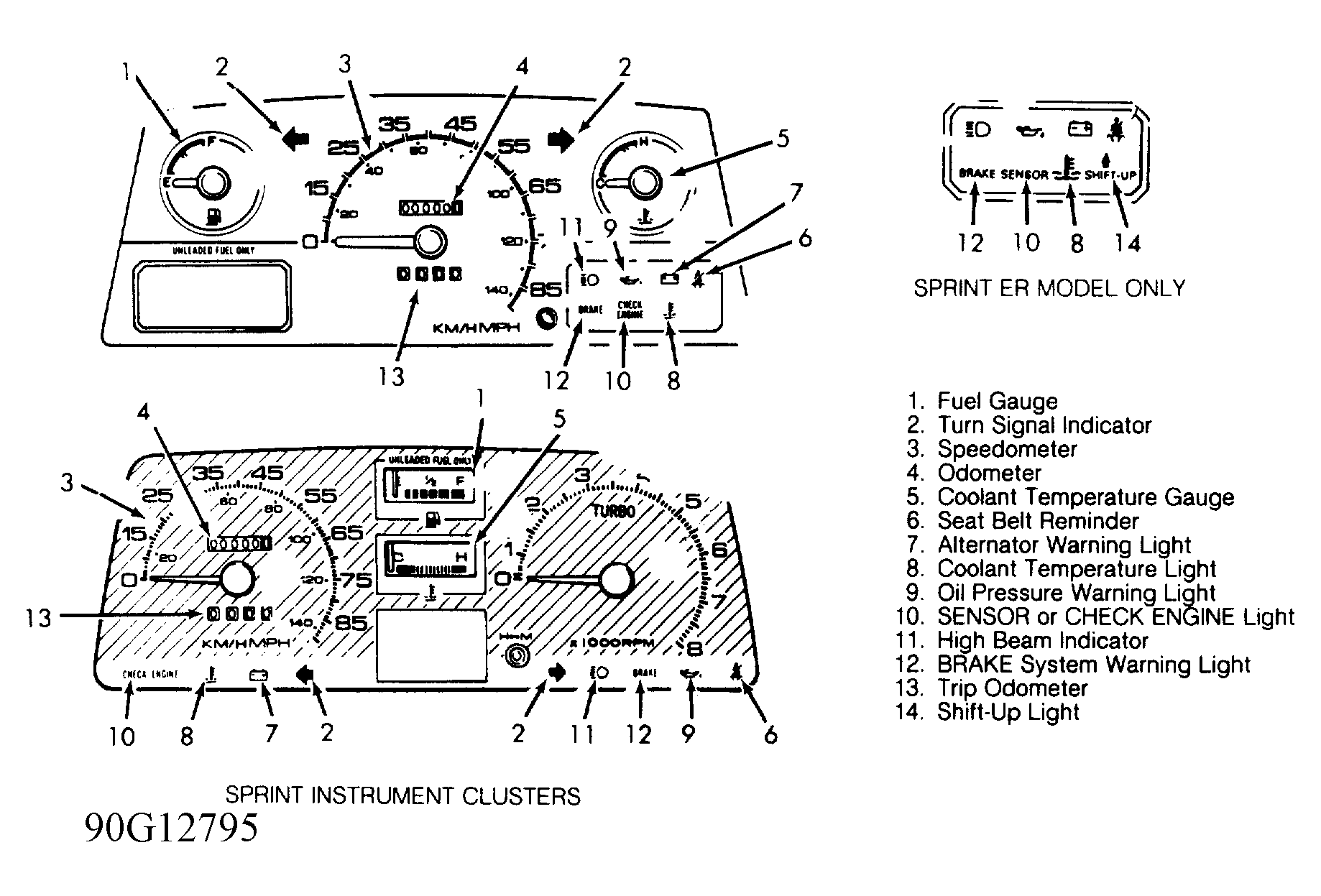

Fig 1: Dash Gauges & Warning Lights (Sprint)

G90G12795

Courtesy of GENERAL MOTORS CORP.

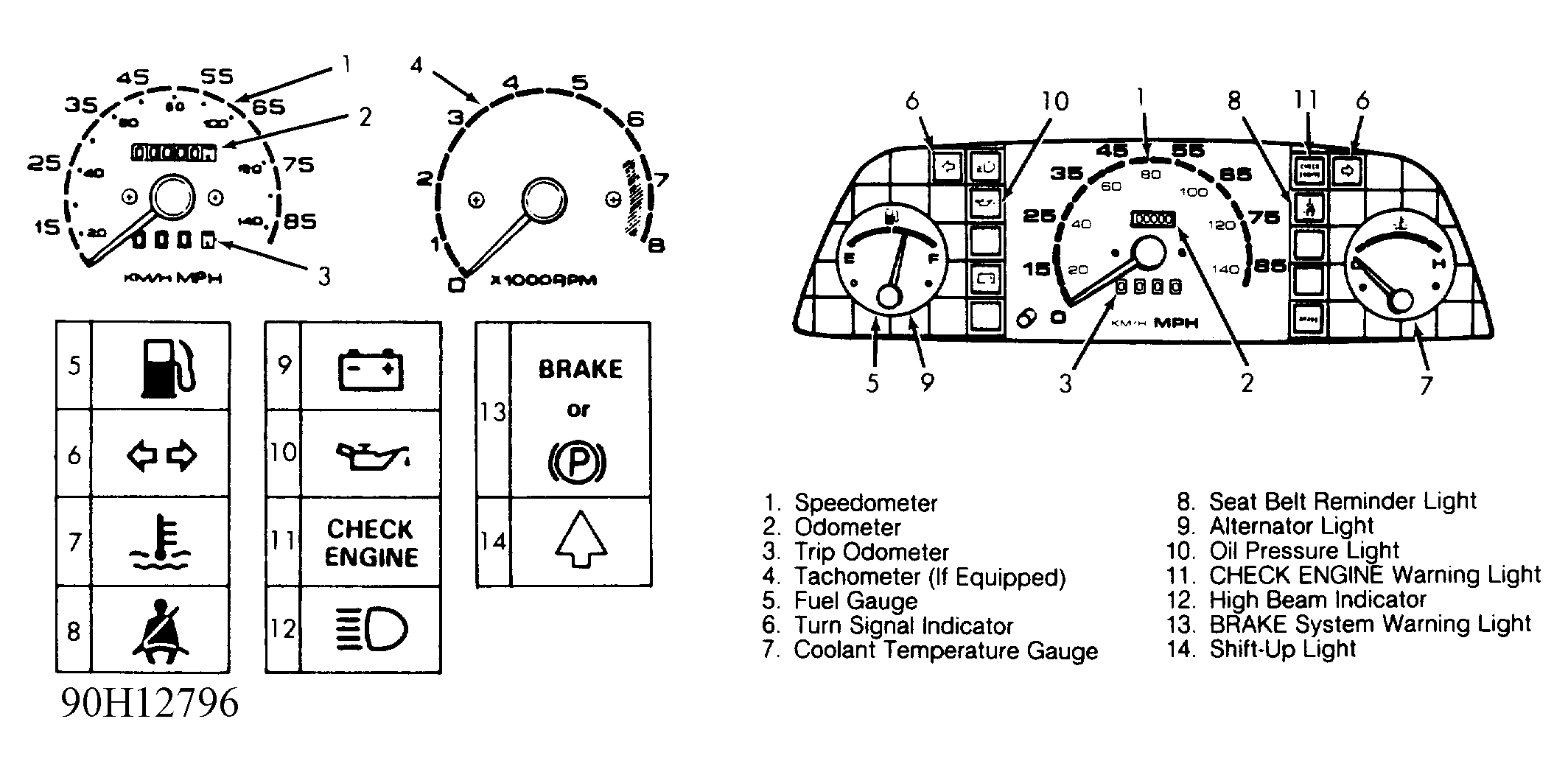

Fig 2: Dash Gauges & Warning Lights (Metro)

G90H12796

Courtesy of GENERAL MOTORS CORP.
