Diagnostic Aids

Visually inspect wiring and connections if intermittent problem exists.

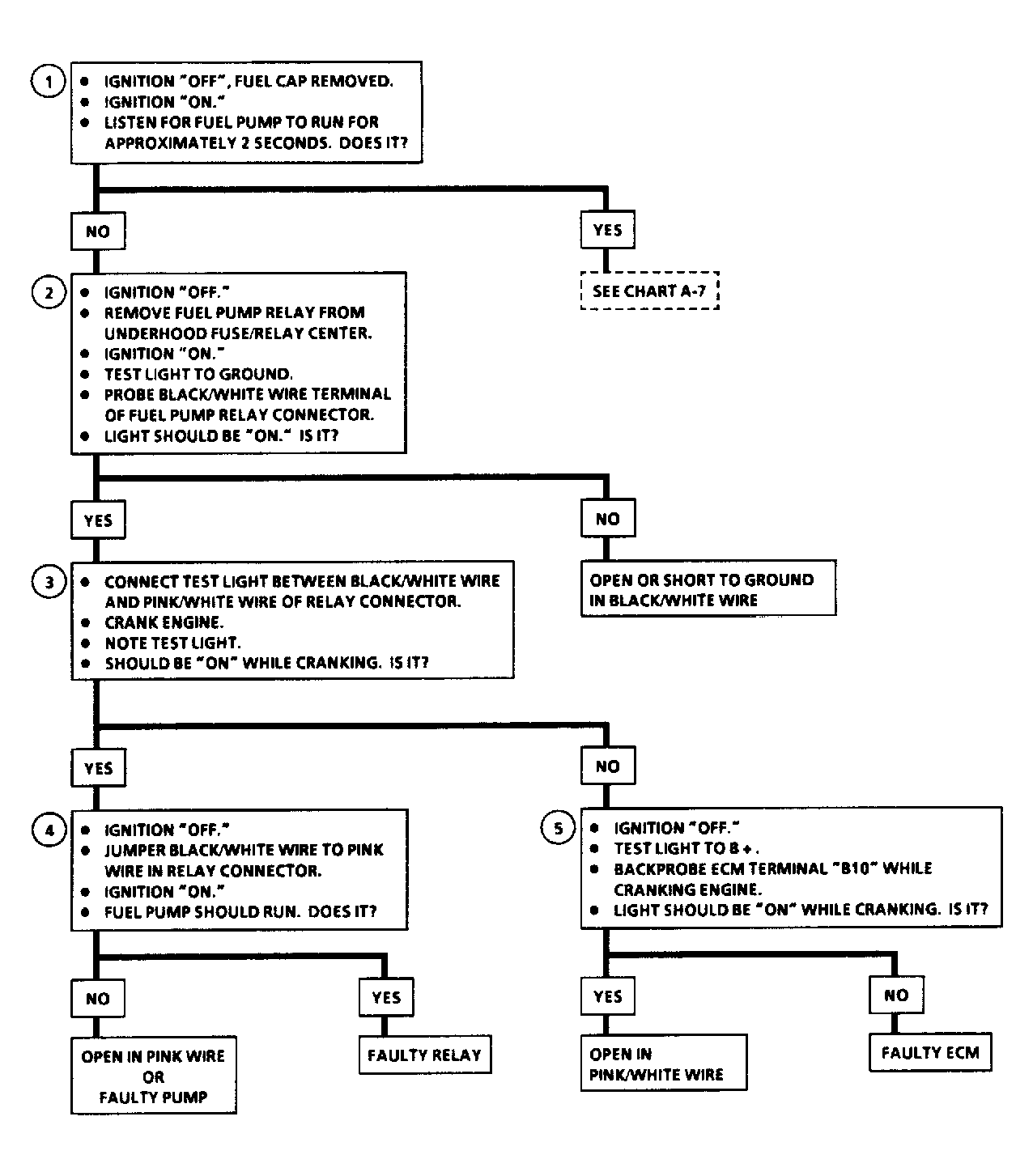

Fig 1: Chart A-5, Flow Chart, Cranks But Won't Run

Courtesy of GENERAL MOTORS CORP.

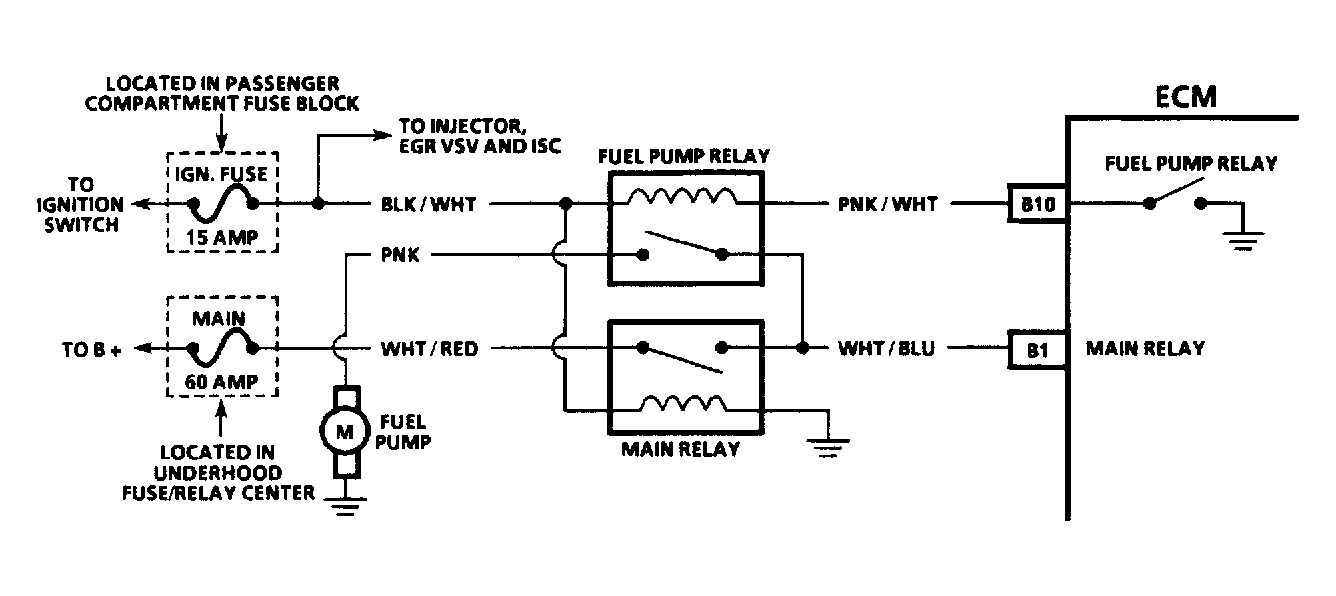

Fig 2: Chart A-5, Schematic, Cranks But Won't Run

Courtesy of GENERAL MOTORS CORP.
